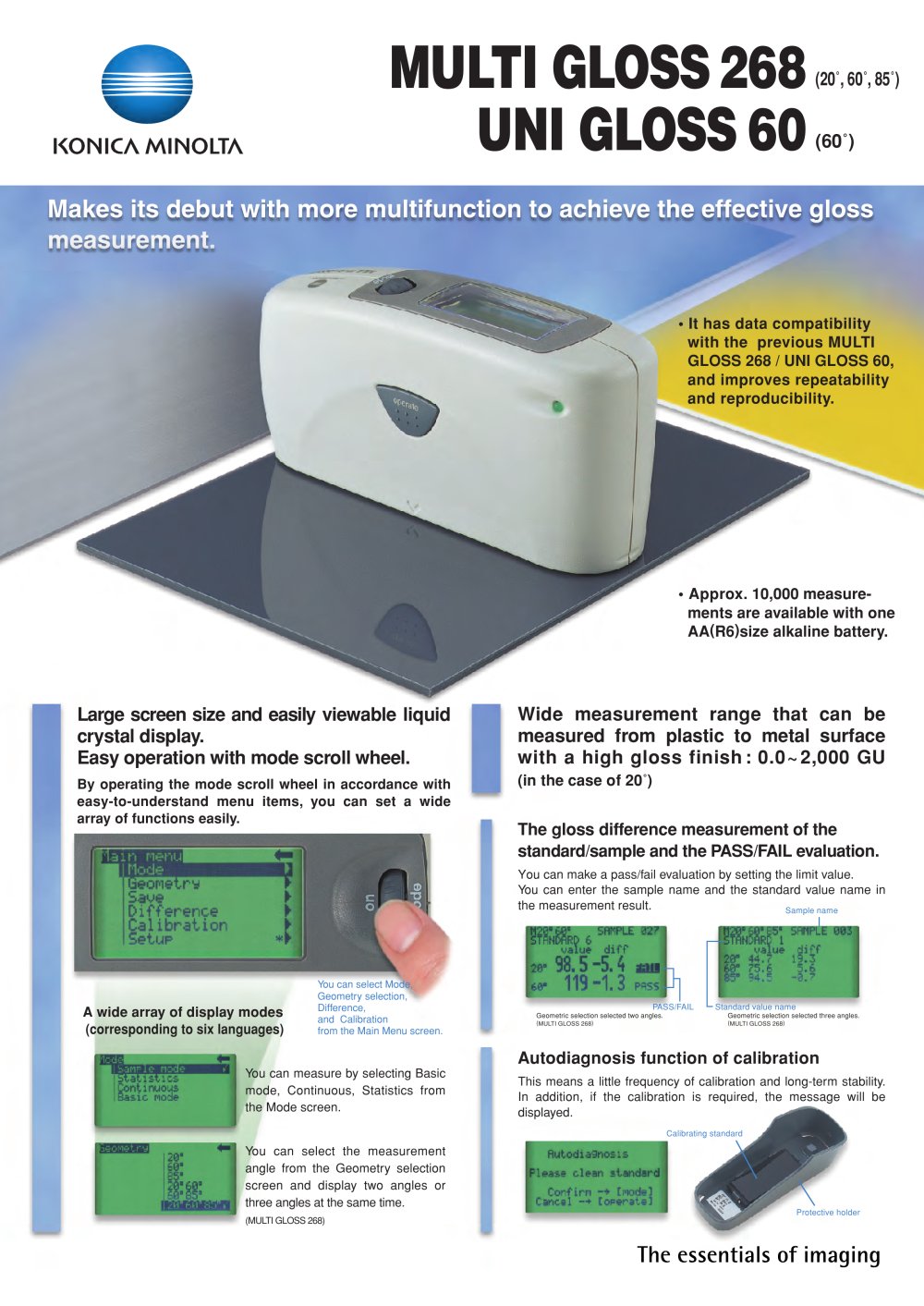

MULTI GLOSS 268UNI GLOSS 60

(20Ëš, 60Ëš, 85Ëš) (60Ëš)
• It has data compatibility with the previous MULTI GLOSS 268 / UNI GLOSS 60, and improves repeatability and reproducibility. • Approx. 10,000 measure-ments are available with one AA(R6)size alkaline battery. Large screen size and easily viewable liquid crystal display. Easy operation with mode scroll wheel. Wide measurement range that can be measured from plastic to metal surface with a high gloss finish: 0.0~2,000 GU
By operating the mode scroll wheel in accordance with easy-to-understand menu items, you can set a wide array of functions easily. (in the case of 20Ëš) The gloss difference measurement of thestandard/sample and the PASS/FAIL evaluation. You can make a pass/fail evaluation by setting the limit value.You can enter the sample name and the standard value name in the measurement result. You can select Mode, Geometry selection, Difference, and Calibration from the Main Menu screen. A wide array of display modes PASS/FAILStandard value name Sample name Geometric selection selected two angles. Geometric selection selected three angles. (corresponding to six languages) (MULTI GLOSS 268) (MULTI GLOSS 268) Autodiagnosis function of calibration You can measure by selecting Basic mode, Continuous, Statistics from the Mode screen.You can select the measurement angle from the Geometry selection screen and display two angles or three angles at the same time. This means a little frequency of calibration and long-term stability. In addition, if the calibration is required, the message will be displayed. Calibrating standard Protective holder (MULTI GLOSS 268)
