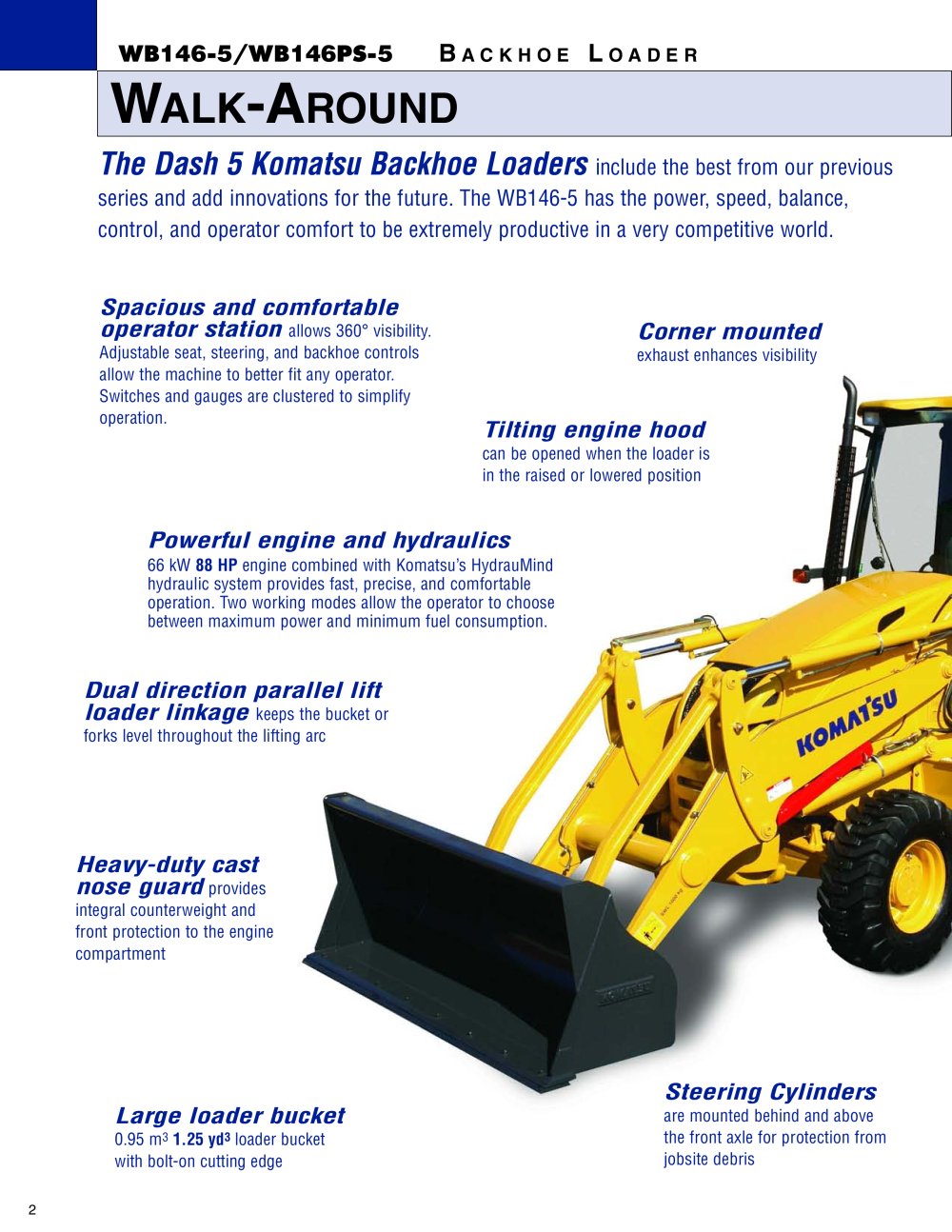

W ALK -A ROUND

The Dash 5 Komatsu Backhoe loaders

include the best from our previousseries and add innovations for the future. The WB146-5 has the power, speed, balance, control, and operator comfort to be extremely productive in a very competitive world. Spacious and comfortableoperator station

allows 360°visibility.Adjustable seat, steering, and backhoe controls allow the machine to better fit any operator. Switches and gauges are clustered to simplify operation.

Corner mounted

exhaust enhances visibility

Tilting engine hood

can be opened when the loader isin the raised or lowered position

Powerful engine and hydraulics

66 kW 88 HP engine combined with Komatsu’s HydrauMindhydraulic system provides fast, precise, and comfortable operation. Two working modes allow the operator to choose between maximum power and minimum fuel consumption.

Dual direction parallel liftloader linkage

keeps the bucket orforks level throughout the lifting arc

Heavy-duty castnose guard

providesintegral counterweight andfront protection to the engine compartment

Steering Cylinders Large loader bucket

are mounted behind and above the front axle for protection from jobsite debris 0.95 m
3 1.25 yd
3 loader bucketwith bolt-on cutting edge
2
