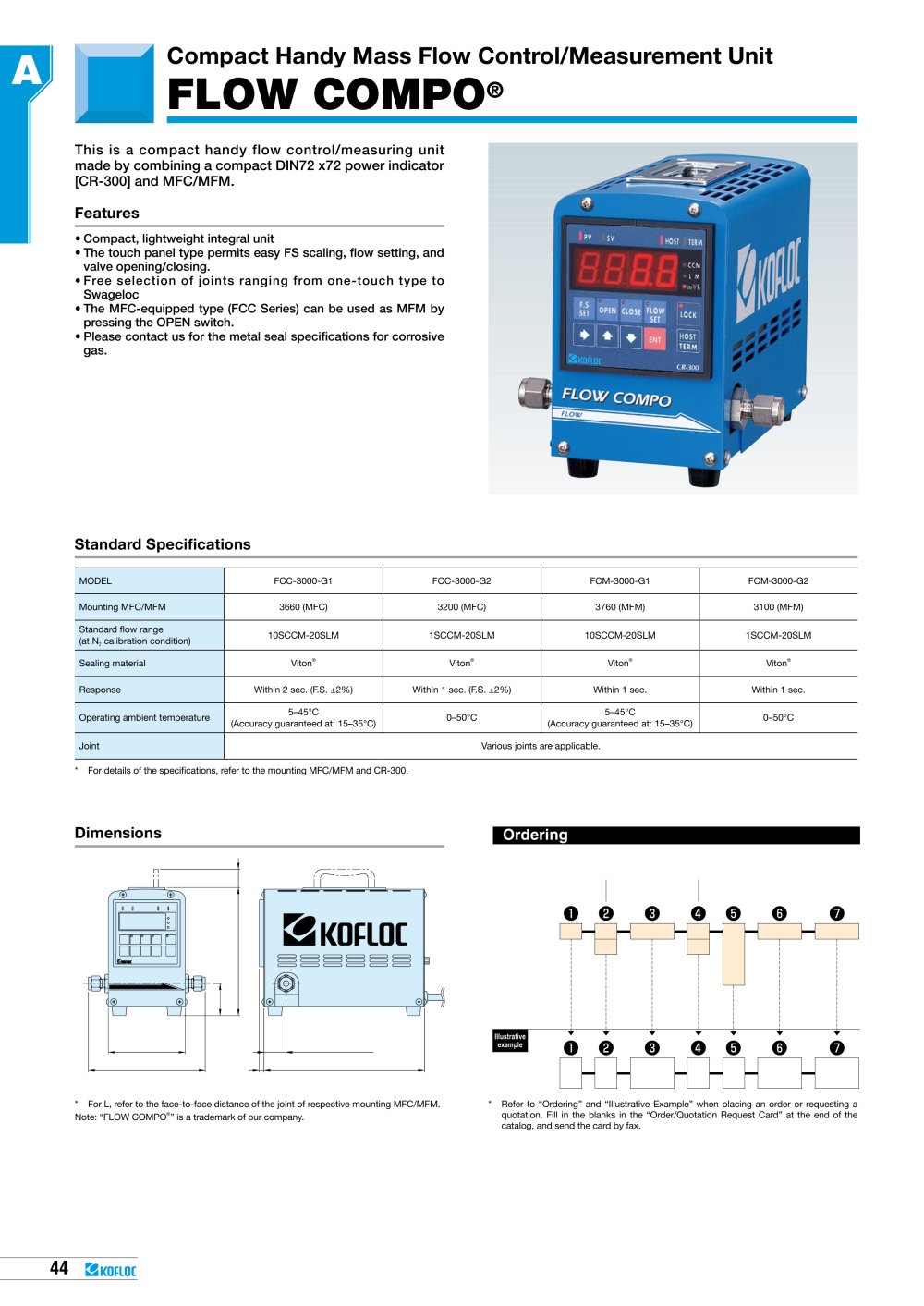

Compact Handy Mass Flow Control/Measurement Unit

FLOW COMPO®

This is a compact handy flow control/measuring unit made by combining a compact DIN72 x72 power indicator [CR-300] and MFC/MFM.

Features

• Compact, lightweight integral unit

• The touch panel type permits easy FS scaling, flow setting, and valve opening/closing.

• Free selection of joints ranging from one-touch type to Swageloc

• The MFC-equipped type (FCC Series) can be used as MFM by pressing the OPEN switch.

• Please contact us for the metal seal specifications for corrosive gas.

Standard Specifications


MODEL	FCC-3000-G1	FCC-3000-G2	FCM-3000-G1	FCM-3000-G2
Mounting MFC/MFM	3660 (MFC)	3200 (MFC)	3760 (MFM)	3100 (MFM)
Standard flow range (at N₂ calibration condition)	10SCCM-20SLM	1SCCM-20SLM	10SCCM-20SLM	1SCCM-20SLM
Sealing material	Viton*	Viton*	Viton*	Viton*
Response	Within 2 sec. (F.S. ±2%)	Within 1 sec. (F.S. ±2%)	Within 1 sec.	Within 1 sec.
Operating ambient temperature	5-45°C (Accuracy guaranteed at: 15-35°C)	0-50°C	5-45°C (Accuracy guaranteed at: 15-35°C)	0-50°C
Joint	Various joints are applicable.

For details of the specifications, refer to the mounting MFC/MFM and CR-300.

Dimensions

Ordering

C: Controller M: Meter

Grade

Flow rate H Joint

MODEL FC

3000

Illustrative example

500SCCM

MODEL FC

3000

1/4SWL

* For L, refer to the face-to-face distance of the joint of respective mounting MFC/MFM. Note: "FLOW COMPO*" is a trademark of our company.

Refer to "Ordering" and "Illustrative Example" when placing an order or requesting a quotation. Fill in the blanks in the "Order/Quotation Request Card" at the end of the catalog, and send the card by fax.
