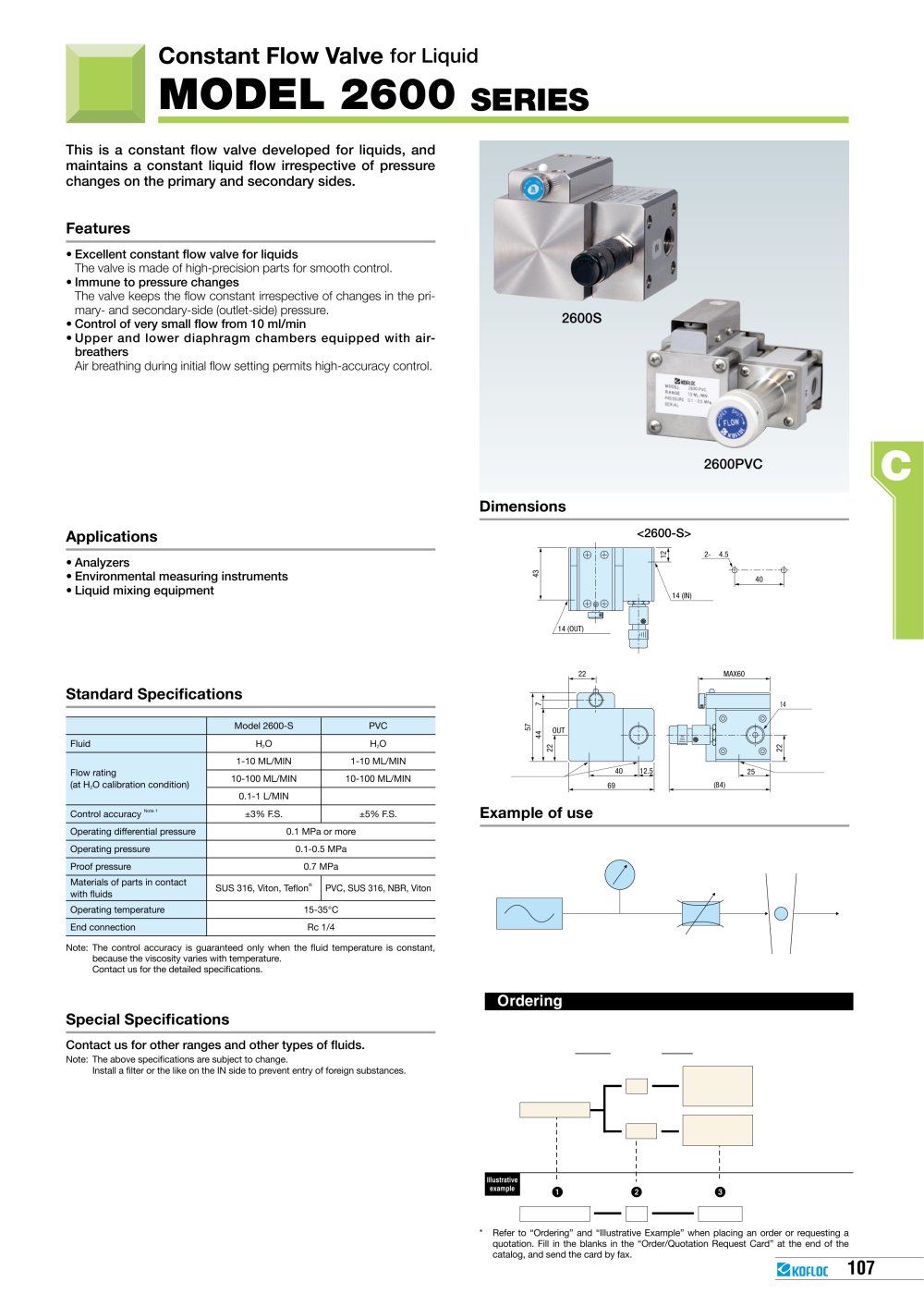

Constant Flow Valve for Liquid

MODEL 2600 series

This is a constant flow valve developed for liquids, and maintains a constant liquid flow irrespective of pressure changes on the primary and secondary sides.

Features

• Excellent constant flow valve for liquids

The valve is made of high-precision parts for smooth control.

• Immune to pressure changes

The valve keeps the flow constant irrespective of changes in the primary- and secondary-side (outlet-side) pressure.

• Control of very small flow from 10 ml/min

• Upper and lower diaphragm chambers equipped with air-breathers

Air breathing during initial flow setting permits high-accuracy control.

Dimensions

<2600-S>

~~F 2-0 4.5

Applications

• Analyzers

• Environmental measuring instruments

• Liquid mixing equipment

\ Rc 1/4 (IN)

/Rcl/4 (OUT)

MAX60

Standard Specifications




		OUT J—		-0-

Rc 1/4 (IN)


	Model 2600-S	PVC
Fluid	H₂O	H₂O
Flow rating (at H₂O calibration condition)	1-10 ML/MIN	1-10 ML/MIN
	10-100 ML/MIN	10-100 ML/MIN
	0.1-1 L/MIN
Control accuracy ^Note ¹	±3% F.S.	±5% F.S.
Operating differential pressure	0.1 MPa or more
Operating pressure	0.1-0.5 MPa
Proof pressure	0.7 MPa
Materials of parts in contact with fluids	SUS 316, Viton, Teflon*	PVC, SUS 316, NBR, Viton
Operating temperature	15-35°C
End connection	Rc 1/4

M4 thread position

2-M4 thread position i

Example of use

When primary-side pressure changes

Pressure change

MODEL 2600-S

Constant flow

Note: The control accuracy is guaranteed only when the fluid temperature is constant, because the viscosity varies with temperature. Contact us for the detailed specifications.

Ordering

Special Specifications

S:SUS316 PVC:PVC - Material -Flow rating

Contact us for other ranges and other types of fluids.

Note: The above specifications are subject to change.

Install a filter or the like on the IN side to prevent entry of foreign substances.
