SL 6000 spec - 72 Pages

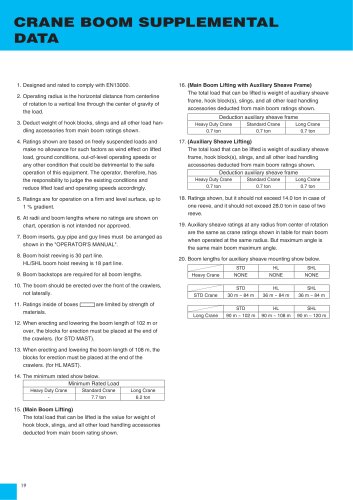

CRANE BOOM SUPPLEMENTAL
DATA
1. Designed and rated to comply with EN13000.
2. Operating radius is the horizontal distance from centerline
of rotation to a vertical line through the center of gravity of
the load.
16. (Main Boom Lifting with Auxiliary Sheave Frame)
The total load that can be lifted is weight of auxiliary sheave
frame, hook block(s), slings, and all other load handling
accessories deducted from main boom ratings shown.
Deduction auxiliary sheave frame
3. Deduct weight of hook blocks, slings and all other load handling accessories from main boom ratings shown.
Heavy Duty Crane
0.7 ton
Standard Crane
0.7 ton
Long Crane
0.7 ton
4. Ratings shown are based on freely suspended loads and
make no allowance for such factors as wind effect on lifted
load, ground conditions, out-of-level operating speeds or
any other condition that could be detrimental to the safe
operation of this equipment. The operator, therefore, has
the responsibility to judge the existing conditions and
reduce lifted load and operating speeds accordingly.
17. (Auxiliary Sheave Lifting)
The total load that can be lifted is weight of auxiliary sheave
frame, hook block(s), slings, and all other load handling
accessories deducted from main boom ratings shown.
Deduction auxiliary sheave frame
5. Ratings are for operation on a firm and level surface, up to
1 % gradient.
18. Ratings shown, but it should not exceed 14.0 ton in case of
one reeve, and it should not exceed 28.0 ton in case of two
reeve.
6. At radii and boom lengths where no ratings are shown on
chart, operation is not intended nor approved.
7. Boom inserts, guy pipe and guy lines must be arranged as
shown in the "OPERATOR'S MANUAL".
8. Boom hoist reeving is 30 part line.
HL/SHL boom hoist reeving is 18 part line.
19. Auxiliary sheave ratings at any radius from center of rotation
are the same as crane ratings shown in table for main boom
when operated at the same radius. But maximum angle is
the same main boom maximum angle.
Heavy Crane
STD
NONE
HL
NONE
SHL
NONE
STD Crane
STD
30 m ~ 84 m
HL
36 m ~ 84 m
SHL
36 m ~ 84 m
STD
90 m ~ 102 m
HL
90 m ~ 108 m
SHL
90 m ~ 120 m
are limited by strength of
12. When erecting and lowering the boom length of 102 m or
over, the blocks for erection must be placed at the end of
the crawlers. (for STD MAST).
13. When erecting and lowering the boom length of 108 m, the
blocks for erection must be placed at the end of the
crawlers. (for HL MAST).
14. The minimum rated show below.
Minimum Rated Load
Standard Crane
7.7 ton
Long Crane
6.2 ton
15. (Main Boom Lifting)
The total load that can be lifted is the value for weight of
hook block, slings, and all other load handling accessories
deducted from main boom rating shown.
19
Long Crane
0.7 ton
Long Crane
10. The boom should be erected over the front of the crawlers,
not laterally.
Heavy Duty Crane
-
Standard Crane
0.7 ton
20. Boom lengths for auxiliary sheave mounting show below.
9. Boom backstops are required for all boom lengths.
11. Ratings inside of boxes
materials.
Heavy Duty Crane
0.7 ton

SL 6000 spec
  1. P. 1

  2. P. 15

    Long Boom82˚ 80˚70˚60˚1201101081029690m10050˚mm90m807040˚5030˚4030Height above ground (m)60H *1: 2.86 m*2: 3.08 m20101020304050607080Radius...
  3. P. 16

    STANDARDWORKING RANGESHeavy Fixed Jib (Type A)11078 m Boom + 18 m Jib83˚80˚10072 m Boom + 18 m Jib70˚60˚9066 m Boom + 18 m Jib8050˚7040˚50403020H101020304050Radius...
  4. P. 17

    Luffing JibBoom Angle: 86°14073˚13060˚12045˚72m66m6073˚110m5430˚100m48m4236m90m30m24m15˚8072m66m60m54m4860 m7042m60mm50m4030...
  5. P. 18

    STANDARDWORKING RANGESLuffing JibBoom Angle: 76°14013063˚60˚12045˚110m72m66m6063˚10030˚m54m4890m42m36m3080m2415˚72m66m60m54m486042m60...
  6. P. 19

    Luffing JibBoom Angle: 66°14013012011053˚10040˚9054 m48 m42 m36 m20˚15˚707230 mm66m60m5448m60m42m36m305015˚m24m403030 mHeight...
  7. P. 20

  8. P. 21

    21. Maximum hoist load for number of reeving parts of line forhoist rope.Main Hoist Loads (Single Drum)No. of Parts of LineMaximum Loads (t)114.0228.0342.0456.0570.0No....
  9. P. 22

    HEAVY FIXED JIB SUPPLEMENTALDATA1. Designed and rated to comply with EN13000.2. Rated loads included in the charts are the maximum allowable freely suspended...
  10. P. 23

    22
  11. P. 24

    LUFFING JIB SUPPLEMENTAL DATA1. Designed and rated to comply with EN13000.11. Ratings inside of boxesmaterials.2. Operating radius is the horizontal distance...
  12. P. 25

    18. Maximum hoist load for number of reeving parts of line forhoist rope.Jib Hook Loads (Single Drum)No. of Parts of LineMaximum Loads (t)114.0228.0342.0456.0570.0No....
  13. P. 26

  14. P. 27

  15. P. 28

  16. P. 29

  17. P. 30

  18. P. 40

  19. P. 50

  20. P. 60

  21. P. 70
