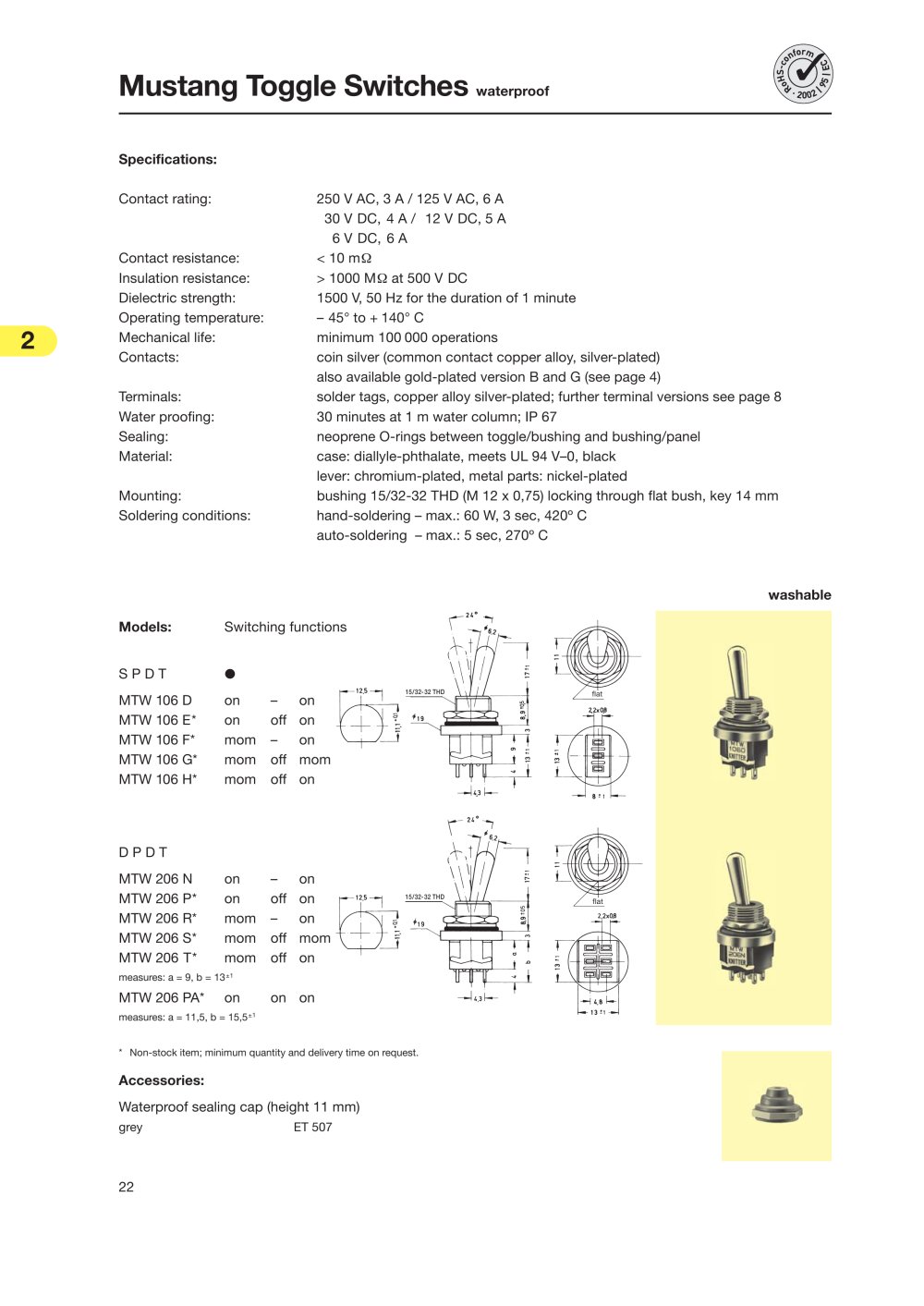

Mustang Toggle Switches

waterproof Specifications: Contact rating:250 V AC, 3 A / 125 V AC, 6 A30 VDC,4A / 12 VDC, 5A6 VDC,6 AContact resistance:< 10 m Insulation resistance:> 1000 M at 500 VDCDielectric strength:1500 V, 50 Hz for the duration of 1 minuteOperating temperature:–45°to +140°C Mechanical life:minimum 100000 operationsContacts:coin silver (common contact copper alloy, silver-plated)also available gold-plated version B and G (see page 4)Terminals:solder tags, copper alloy silver-plated; further terminal versions see page 8Water proofing:30 minutes at 1 m water column; IP 67Sealing: neoprene O-rings between toggle/bushing and bushing/panel Material:case: diallyle-phthalate, meets UL 94 V–0, blacklever: chromium-plated, metal parts: nickel-platedMounting:bushing 15/32-32 THD (M 12 x 0,75) locking through flat bush, key 14 mm Soldering conditions:hand-soldering – max.: 60 W, 3 sec, 420º Cauto-soldering – max.: 5 sec, 270º CSPDT

2

MTW 106 Don–onMTW 106 E*onoffon MTW 106 F*mom–on MTW 106 G*momoffmomMTW 106 H*momoffonDPDTMTW 206 Non–onMTW 206 P*onoffonMTW 206 R*mom–onMTW 206 S*momoffmom MTW 206T*momoffon washable Models: Switching functions
15/32-32 THD flat 15/32-32 THD flat b measures: a = 9, b = 13 ±1 MTW 206 PA*ononon
measures: a = 11,5, b = 15,5 ±1 *Non-stock item; minimum quantity and delivery time on request. Accessories: Waterproof sealing cap (height 11 mm)
greyET 507 22
