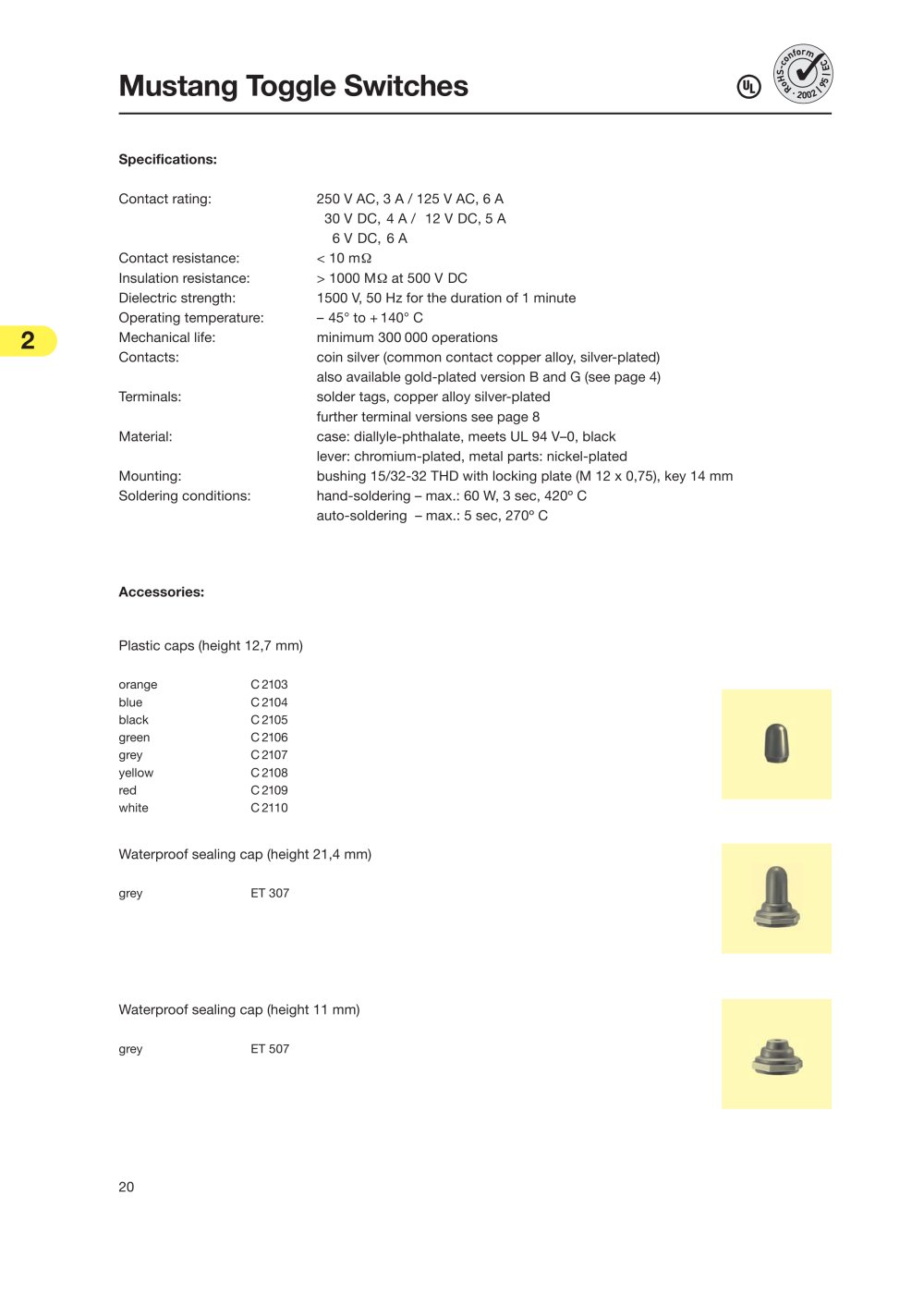

| Specifications: Contact rating: 250 V AC, 3 A / 125 V AC, 6 A 30 V DC, 4 A / 12 V DC, 5 A 6 V DC, 6 A Contact resistance: < 10 mQ Insulation resistance: > 1000 MQ at 500 V DC Dielectric strength: 1500 V, 50 Hz for the duration of 1 minute Operating temperature: - 45° to +140° C 2 Mechanical life: minimum 300 000 operations Contacts: coin silver (common contact copper alloy, silver-plated) also available gold-plated version B and G (see page 4) Terminals: solder tags, copper alloy silver-plated further terminal versions see page 8 Material: case: diallyle-phthalate, meets UL 94 V-0, black lever: chromium-plated, metal parts: nickel-plated Mounting: bushing 15/32-32 THD with locking plate (M 12 x 0,75), key 14 mm Soldering conditions: hand-soldering - max.: 60 W, 3 sec, 420° C auto-soldering - max.: 5 sec, 270° C |
