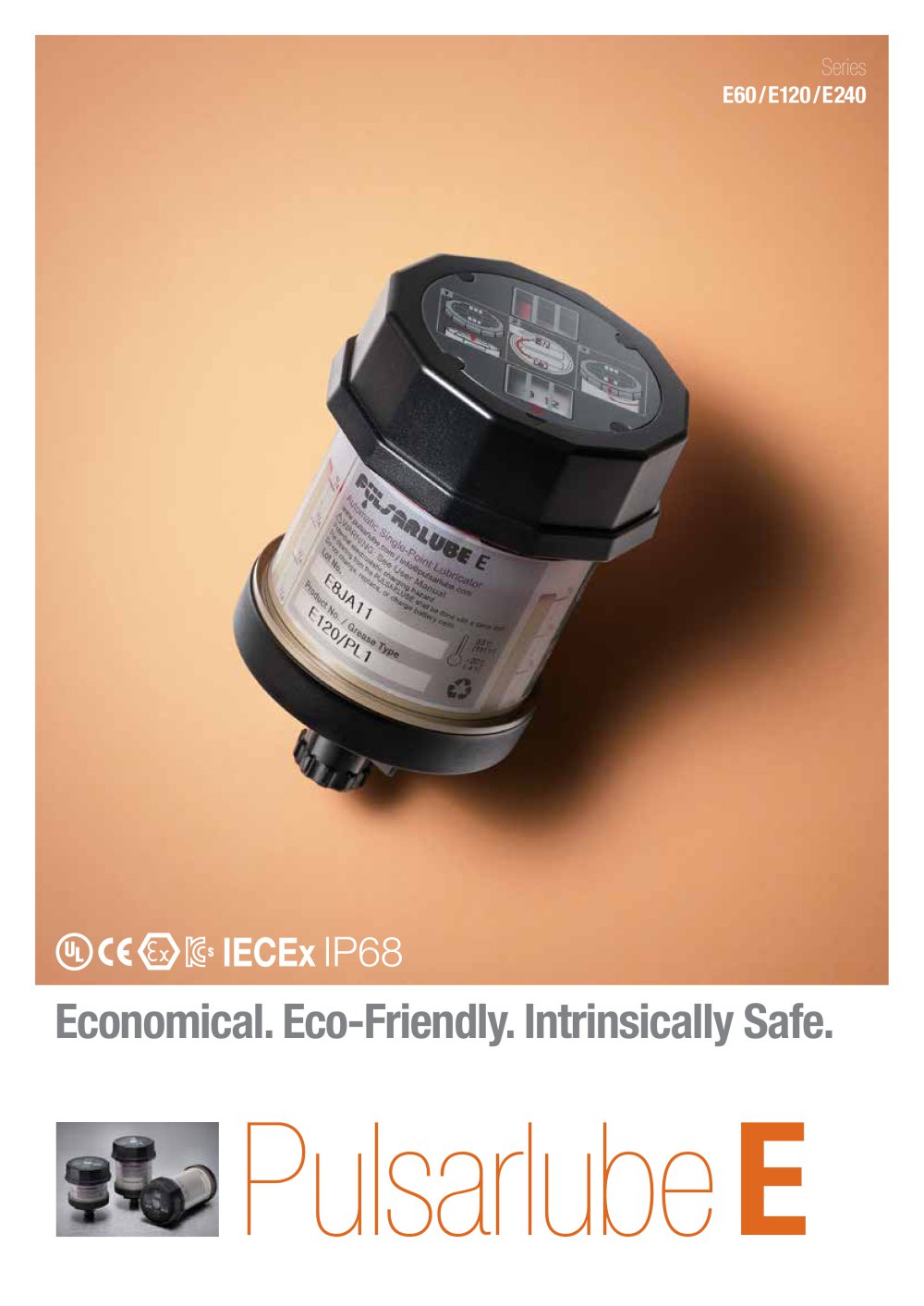

F5i.Sfiltl.UBE E E120 Cost Effective, User Friendly Automatic Single Point Lubricator | What is the Pulsarlube E Advantages The Pulsarlube E, an electrochemical automatic grease single point lubricator, operates based on the proven technology of electrochemical reaction which generates inert Nitrogen (N2) gas through the systematic use of an electrolyte and electrical energy. With five different preset dispensing rates from 1 to 12 months, the Pulsarlube E offers a very cost effective solution for a wide variety of industrial applications, which contributes to preventative maintenance and cost reduction via realiable and precise lubrication. In addition, the intuitive design of Pulsarlube E ensures both error-free operation and safe use. Cost effective Simple to operate Easy to install without the use of tools Easy to adjust dispensing periods in operation Instant ON & OFF available Transparent container for visual inspection of lubricant levels Convenient disposal after use (environmentally friendly) Suitable for use in confined areas More reliable against ambient temperature variations than hydrogen gas type lubricators Pressure relief valve relieves pressure if it exceeds 7kgf/cmT (100psi) Housing Cap Battery Cover | Spécifications Battery Mode Selector Spécifications Description PCB Grease Capacity 120cc N2 Gas Generation Cell Operating Pressure Max. 5kgf/arf (70psi) Piston Operating Temp Range -20°C ~ 60°C (-4T ~ 140°F ) Lubricant Reservoir Product Size 077mm (3.03") x 112mm (4.41") Grease Installation Thread Size 1/4" Male NPT & BSPT compatible Base Gas Type Nitrogen (N2) Gas Pressure Relief Valve Available Dispensing Periods 1, 3, 6, 9 & 12 months Certifications / IP code CE / IP65 1/4" NPT/BSPT Thread Protector Remote Installation Upto 1m(3ft ) using a 8mm(5/16") O.D. tube NO!*- Technical information is subject to change without prior notice.
