| Sounders | ||||||||||||||||||||||||||||||||||||||||||||

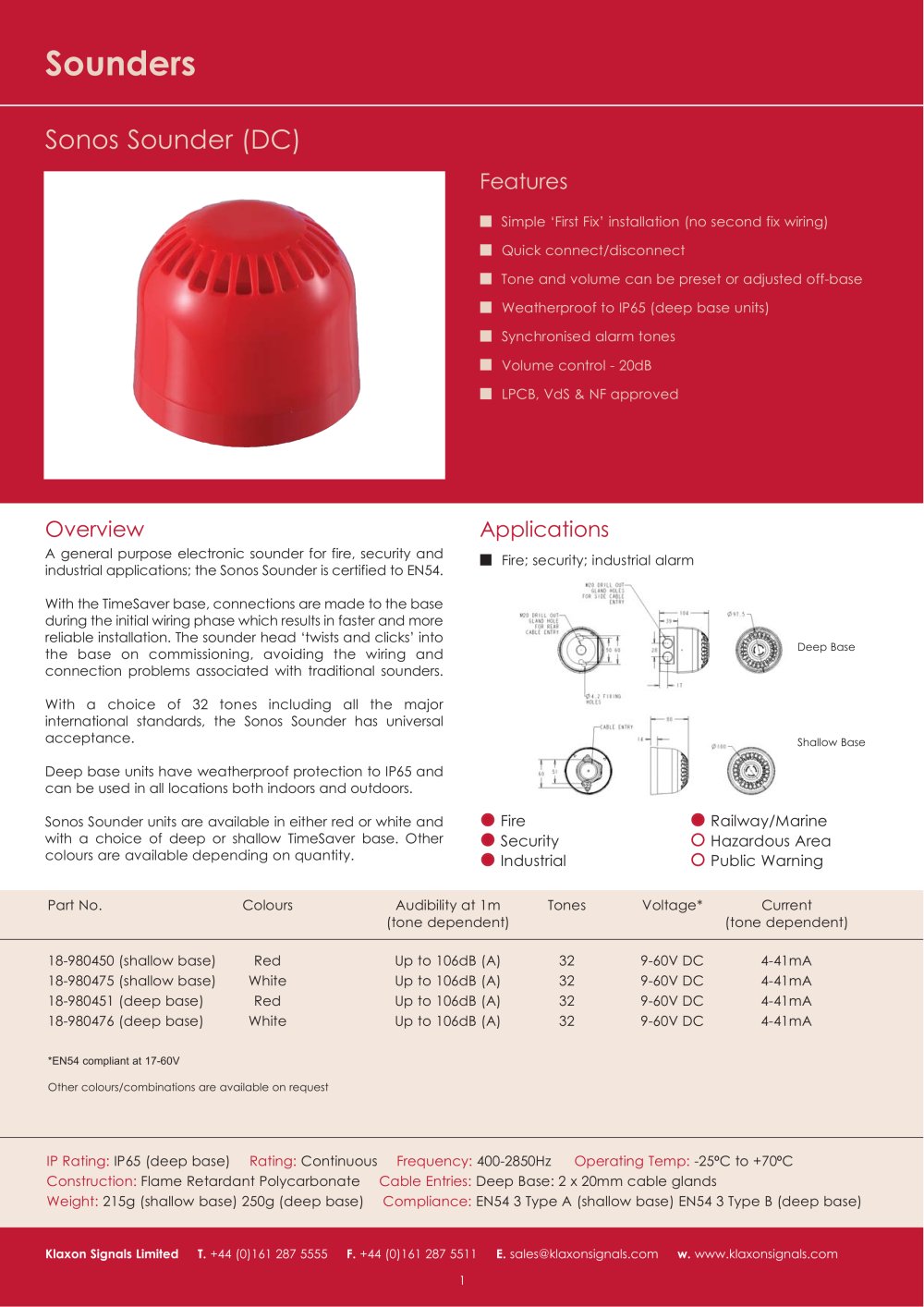

| Sonos Sounder (DC) | ||||||||||||||||||||||||||||||||||||||||||||
| Features ■ Simple 'First Fix' installation (no second fix wiring) ■ Quick connect/disconnect ■ Tone and volume can be preset or adjusted off-base ■ Weatherproof to IP65 (deep base units) ■ Synchronised alarm tones ■ Volume control - 20dB ■ LPCB, VdS & NF approved | ||||||||||||||||||||||||||||||||||||||||||||
| Overview A general purpose electronic sounder for fire, security and industrial applications; the Sonos Sounder is certified to EN54. With the TimeSaver base, connections are made to the base during the initial wiring phase which results in faster and more reliable installation. The sounder head 'twists and clicks' into the base on commissioning, avoiding the wiring and connection problems associated with traditional sounders. With a choice of 32 tones including all the major international standards, the Sonos Sounder has universal acceptance. Deep base units have weatherproof protection to IP65 and can be used in all locations both indoors and outdoors. | Applications ■ Fire; security; industrial alarm | |||||||||||||||||||||||||||||||||||||||||||
| RĪŪ DRILL Mr CLRRD HOLH rofi ĻI0E tRm am | ||||||||||||||||||||||||||||||||||||||||||||
| 1170 DAHL 0W1 til AM MOLt FOR RUR (Aflll ENTRI | ||||||||||||||||||||||||||||||||||||||||||||
| Deep Base | ||||||||||||||||||||||||||||||||||||||||||||
| Shallow Base | ||||||||||||||||||||||||||||||||||||||||||||
| Sonos Sounder units are available in either red or white and 9 Fire with a choice of deep or shallow TimeSaver base. Other £ Security colours are available depending on quantity. £ Industrial | Railway/Marine O Hazardous Area O Public Warning | |||||||||||||||||||||||||||||||||||||||||||
| Colours | Audibility at 1 m (tone dependent) | Voltage* | (tonenden!) | |||||||||||||||||||||||||||||||||||||||||
| Part No. | Tones | |||||||||||||||||||||||||||||||||||||||||||
| 18-980450 (shallow base) Red 18-980475 (shallow base) White 18-980451 (deep base) Red 18-980476 (deep base) White | Up to 106dB (A) 32 9-60V DC 4-41mA Up to 106dB (A) 32 9-60V DC 4-41mA Up to 106dB (A) 32 9-60V DC 4-41mA Up to 106dB (A) 32 9-60V DC 4-41mA | |||||||||||||||||||||||||||||||||||||||||||
| *EN54 compliant at 17-60V Other colours/combinations are available on request | ||||||||||||||||||||||||||||||||||||||||||||
| Weight: 215g (shallow base) 250g (deep base) Compliance: EN54 3 Type A (shallow base) EN54 3 Type B (deep base) | ||||||||||||||||||||||||||||||||||||||||||||
