| | | Punching tools and sets | | |
| | | |

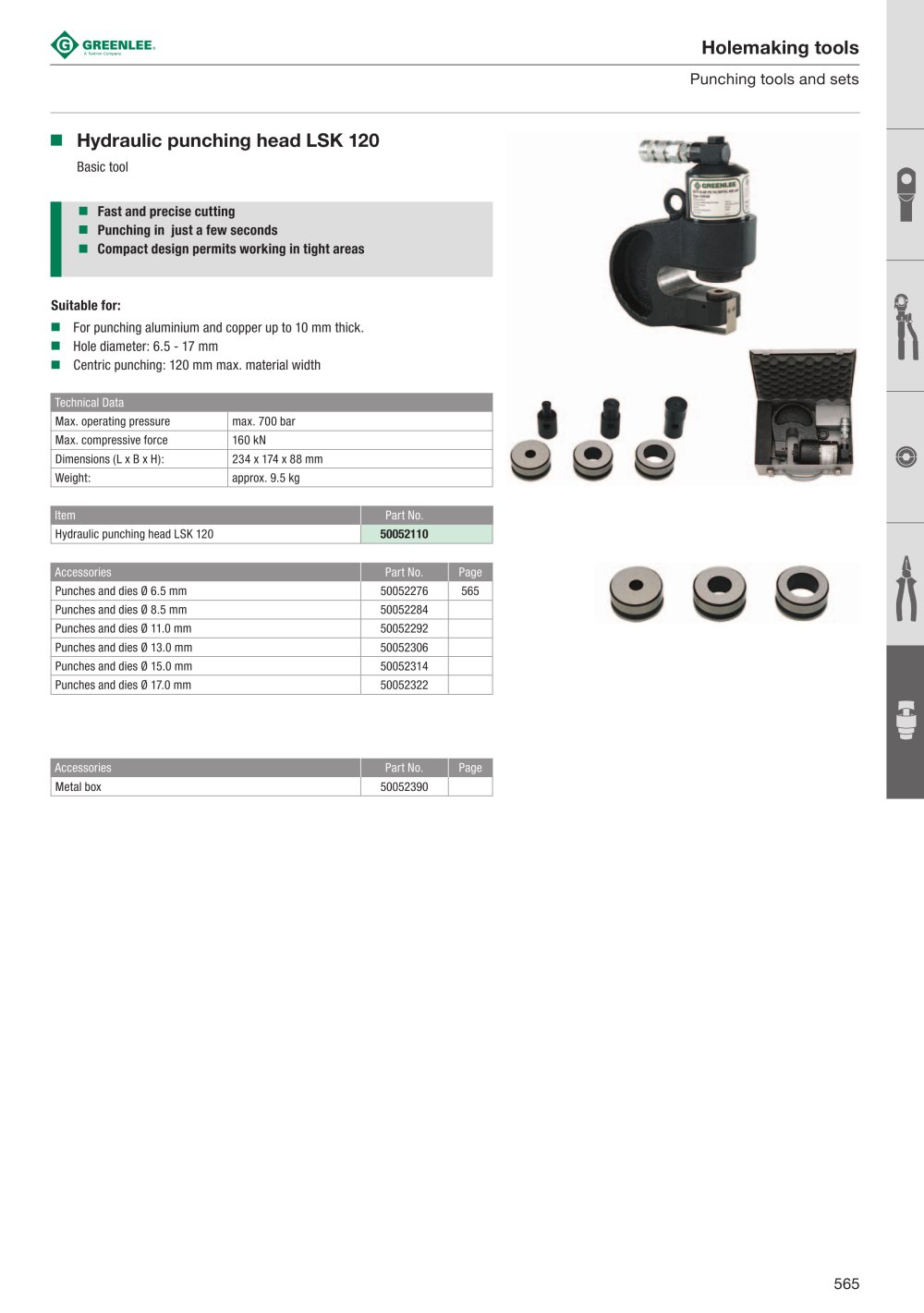

| | | ■ Hydraulic punching head LSK 120 Basic tool ■ Fast and precise cutting ■ Punching in just a few seconds ■ Compact design permits working in tight areas Suitable for: ■ For punching aluminium and copper up to 10 mm thick. ■ Hole diameter: 6.5 -17 mm ■ Centric punching: 120 mm max. material width | | |
| | | |
| | | | | | | | | | | | | a | | | | | Max. operating pressure | max. 700 bar | | | | Max. compressive force | 160 kN | | | | Dimensions (LxBx H): | 234x174 x 88 mm | | | | Weight: | approx. 9.5 kg | | | | | | | | | | | |
| | | |
| | | | | | | | | | | Item | | Part No. | | | | Hydraulic punching head LSK120 | 50052110 | | | | | | | | | | |
| | | |
| | | | | | | | | | | Accessories | Part No. | Page | | | | Punches and dies 0 6.5 mm | 50052276 | 565 | | | | Punches and dies 0 8.5 mm | 50052284 | | | | | Punches and dies 011.0mm | 50052292 | | | | | Punches and dies 0 13.0 mm | 50052306 | | | | | Punches and dies 0 15.0 mm | 50052314 | | | | | Punches and dies 0 17.0 mm | 50052322 | | | | | | | | | | | |
| | | |
| | | | | | | | | | | Accessories | Part No. | Page | | | | Metal box | 50052390 | | | | | | | | | | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | | | | |
