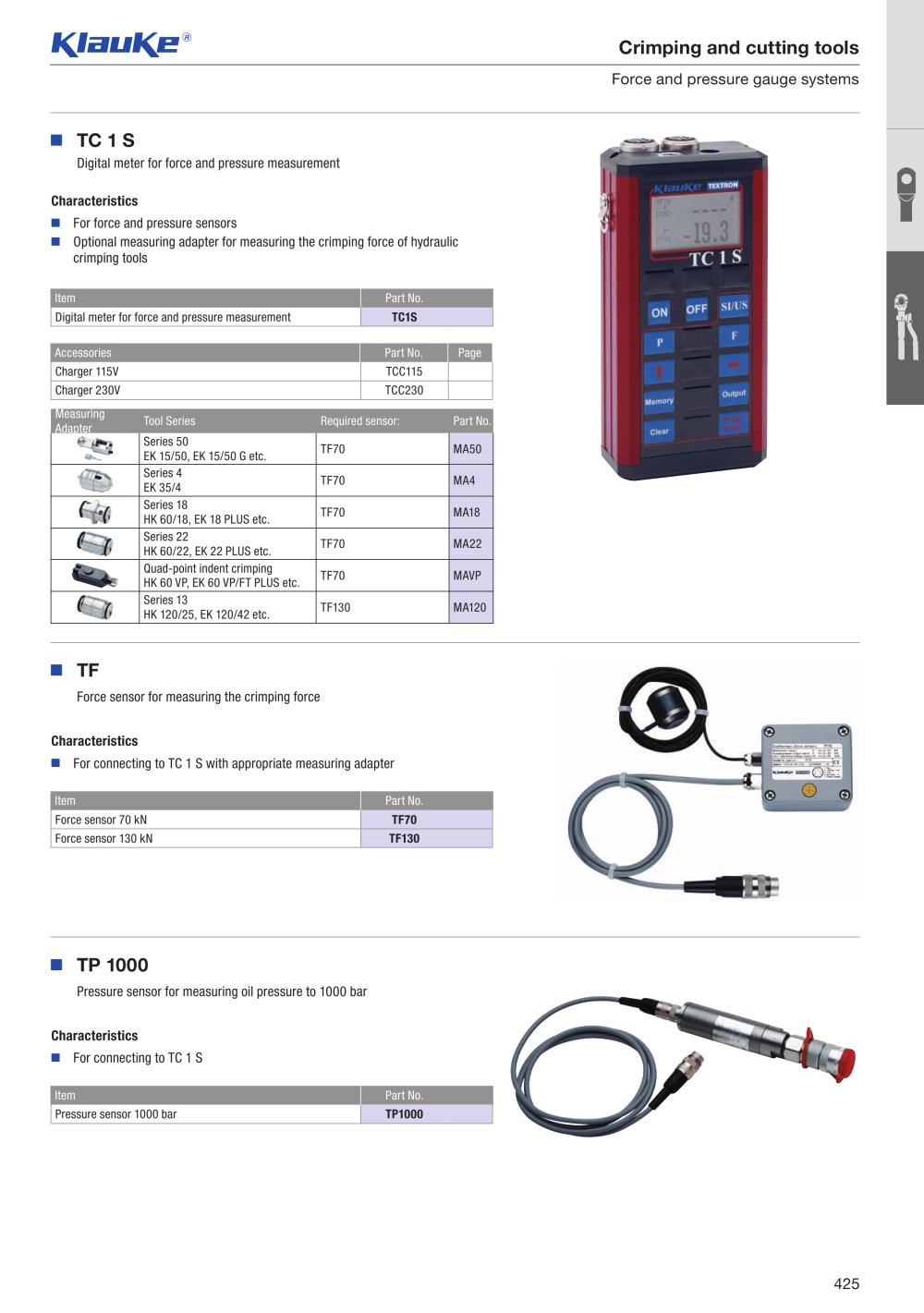

Force and pressure gauge systems

■ TC1S

Digital meterforforce and pressure measurement Characteristics

■ For force and pressure sensors

■ Optional measuring adapter for measuring the crimping force of hydraulic crimping tools


	Item	Part No.
	I Digital meter for force and pressure measurement	TC1S

Accessories

Part No. Page

I Chargerl 15V

TCC115

I Charger 230V

TCC230


Measuring Adapter	Tool Series	Required sensor:	Part No.
	Series 50 EK15/50, EK15/50Getc.	TF70	MA50
-	Series 4 EK 35/4	TF70	MA4
	Series 18 HK60/18,EK18PLUSetc.	TF70	MA18
	Series 22 HK60/22,EK 22PLUSetc.	TF70	MA22
	Quad-point indent crimping HK60VP, EK 60 VP/FTPLUS etc.	TF70	MAVP
	Series 13 HK120/25,EK120/42etc.	TF130	MA120

■ TF

Force sensor for measuring the crimping force Characteristics

■ For connecting to TC 1 S with appropriate measuring adapter

Item

Part No.

TP 1000

Pressure sensor for measuring oil pressure to 1000 bar
