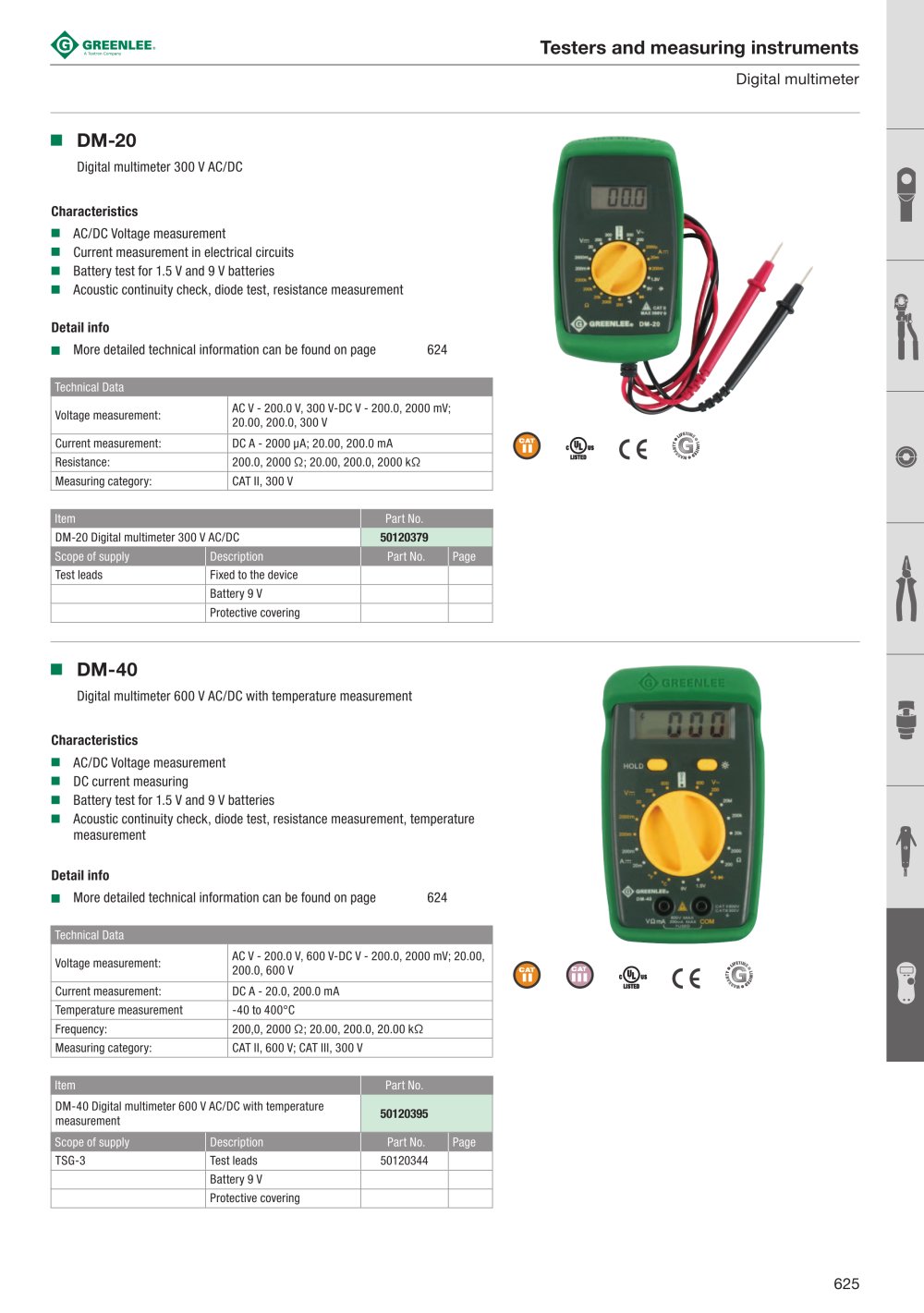

Digital multimeter
■ DM-20
Digital multimeter 300 V AC/DC
Characteristics
■ AC/DC Voltage measurement
■ Current measurement in electrical circuits
■ Battery test fori .5Vand9V batteries
■ Acoustic continuity check, diode test, resistance measurement
Detail info
■ More detailed technical information can be found on page
624
Voltage measurement:
AC V - 200.0 V, 300 V-DC V - 200.0, 2000 mV; 20.00, 200.0, 300 V
Current measurement:
DCA- 2000 uA; 20.00,200.0 mA
Resistance:
200.0, 2000 Q; 20.00, 200.0, 2000 kfì
Measuring category:
CAT II, 300 V
О -fi- C€ ©
Part No.
tern
DM-20 Digital multimeter 300 V AC/DC
Scope ofsupply
Description
Part No.
Page
Test leads
Fixed to the device
Battery 9 V
Protective covering
■ DM-40
Digital multimeter 600 V AC/DC with temperature measurement
Characteristics
■ AC/DC Voltage measurement
■ DC current measuring
■ Battery test fori .5Vand9V batteries
■ Acoustic continuity check, diode test, resistance measurement, temperature measurement
Detail info
■ More detailed technical information can be found on page
624
Voltage measurement:
AC V - 200.0 V, 600 V-DC V - 200.0, 2000 mV; 20.00, 200.0,600 V
Current measurement:
DCA- 20.0, 200.0 mA
Temperature measurement
-40 to 400°C
Frequency:
200,0, 2000 Q; 20.00, 200.0, 20.00 kfì
Measuring category:
CAT II, 600 V; CAT III, 300 V
О О '®» a
rtNo.
DM-40 Digital multimeter 600 V AC/DC with temperature measurement
50120395
Scope ofsupply
Description
Part No.
Page
TSG-3
Test leads
50120344
Battery 9 V
Protective covering
