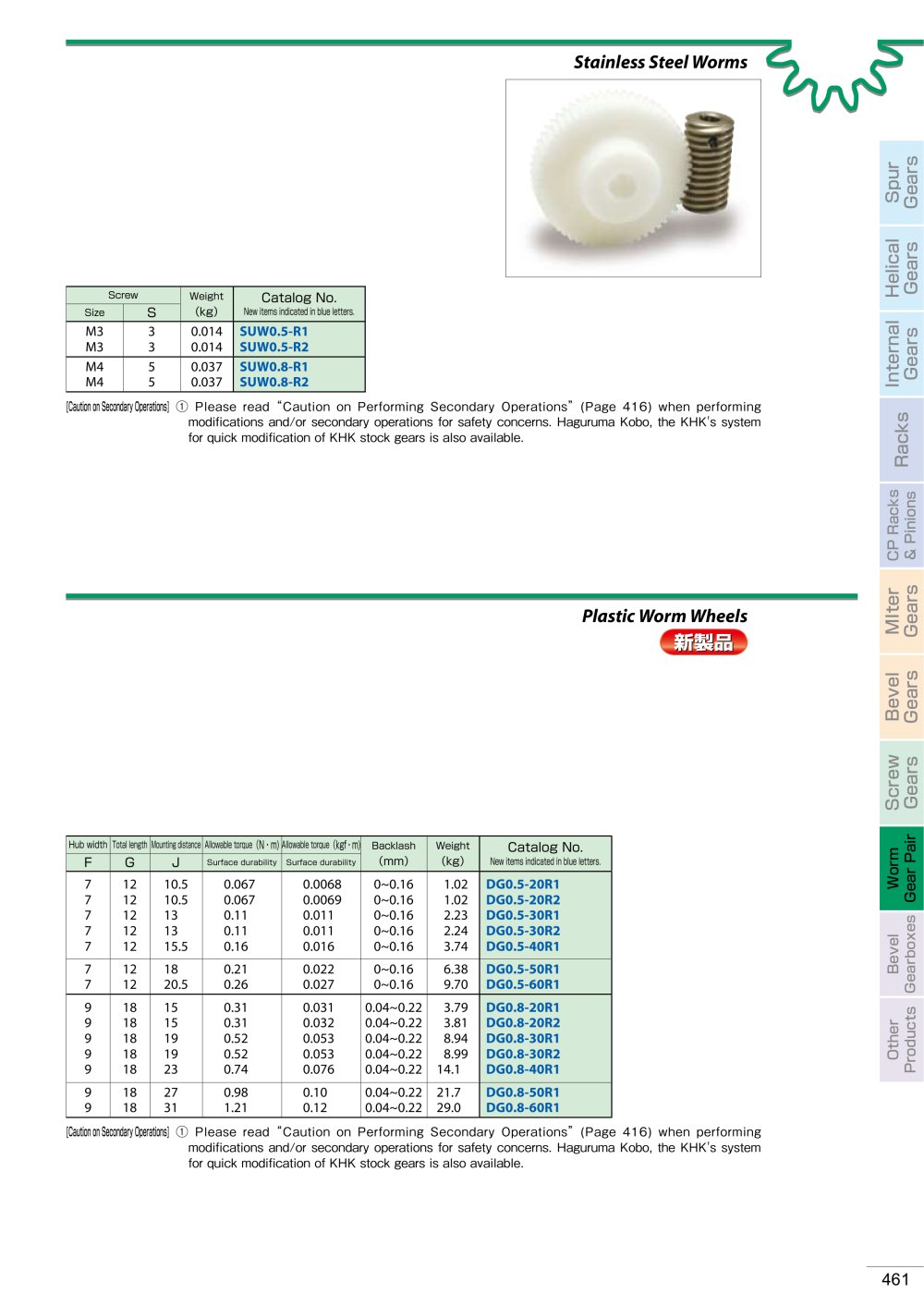

Stainless Steel Worms

"cô ço .9 (5

ICD

5 co

m c0 £ cd

£cd

co ce

J2 £ ^^^^ ^w

+j co ^CD

> co

cd cd Dû CD

£ cô o cd CD CD

> cd

m co cd

en cl


Screw		Weight	Catalog No.
Size	S	(kg)	Newitemsindicatedin blueletters.
M3	3	0.014	SUW0.5-R1
M3	3	0.014	SUW0.5-R2
M4	5	0.037	SUW0.8-R1
M4	5	0.037	SUW0.8-R2

[Cautionon Secondary Opérations] © Please read "Caution on Performing Secondary Operations" (Page 416) when performing modifications and/or secondary operations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available.

Plastic Worm Wheels


Hub width	Total length	Mounting distance	Allowable torque (N'iïl)	Allowable torque (kgf • m)	Backlash	Weight	Catalog No.
F	G	J	Surface durability	Surface durability	(mm)	(kg)	Newitemsindicatedin blueletters.
7	12	10.5	0.067	0.0068	0~0.16	1.02	DG0.5-20R1
7	12	10.5	0.067	0.0069	0~0.16	1.02	DG0.5-20R2
7	12	13	0.11	0.011	0~0.16	2.23	DG0.5-30R1
7	12	13	0.11	0.011	0~0.16	2.24	DG0.5-30R2
7	12	15.5	0.16	0.016	0~0.16	3.74	DG0.5-40R1
7	12	18	0.21	0.022	0~0.16	6.38	DG0.5-50R1
7	12	20.5	0.26	0.027	0~0.16	9.70	DG0.5-60R1
9	18	15	0.31	0.031	0.04~0.22	3.79	DG0.8-20R1
9	18	15	0.31	0.032	0.04~0.22	3.81	DG0.8-20R2
9	18	19	0.52	0.053	0.04~0.22	8.94	DG0.8-30R1
9	18	19	0.52	0.053	0.04~0.22	8.99	DG0.8-30R2
9	18	23	0.74	0.076	0.04~0.22	14.1	DG0.8-40R1
9	18	27	0.98	0.10	0.04~0.22	21.7	DG0.8-50R1
9	18	31	1.21	0.12	0.04~0.22	29.0	DG0.8-60R1

[Cautionon Secondary Operations] © Please read "Caution on Performing Secondary Operations" (Page 416) when performing modifications and/or secondary operations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available.

461
