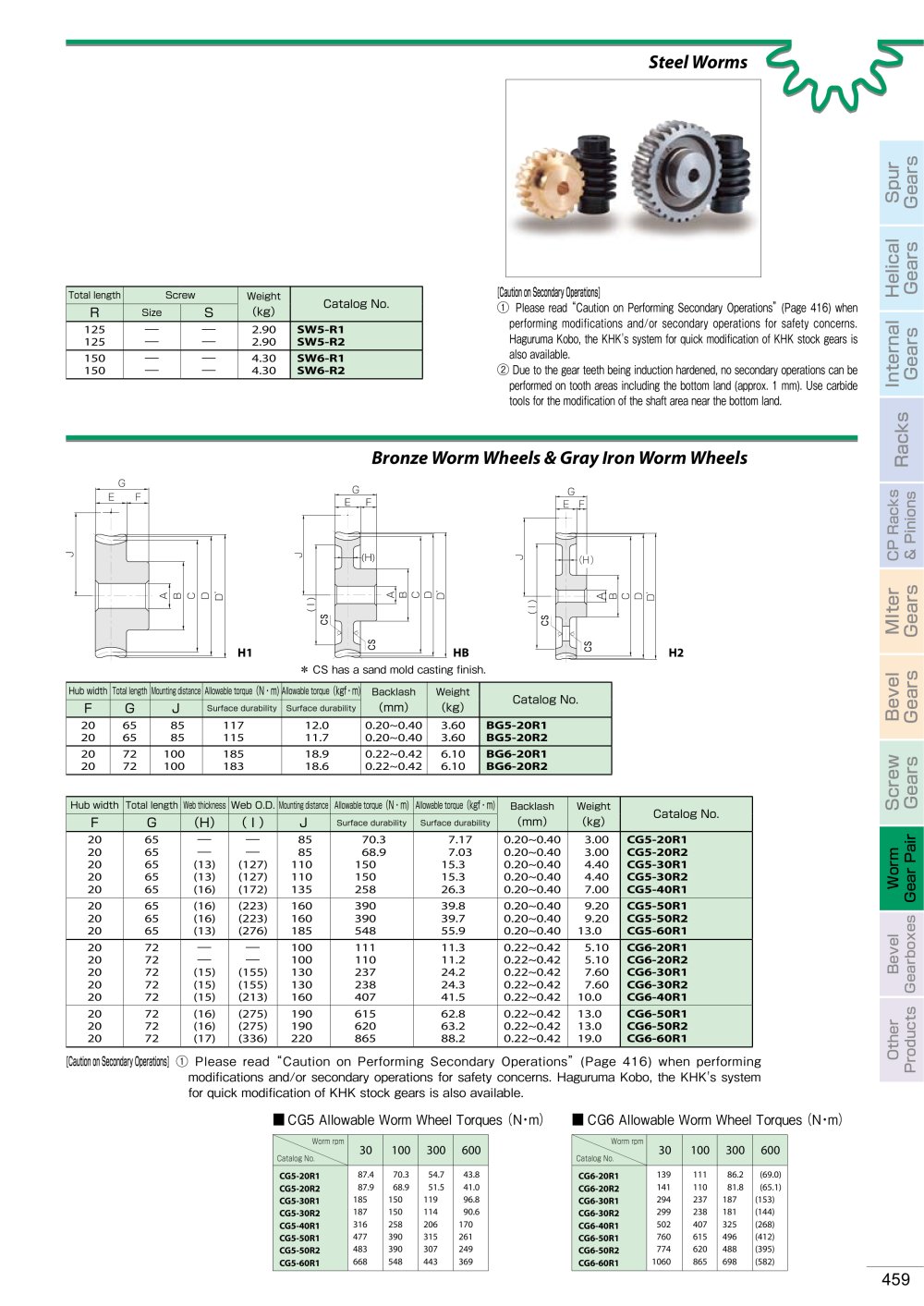

Steel Worms

a. ^roCD (T)

.9 cd Id a> ICD

5 co

£ cd

o co oc

J2 £ cd i=

HH co ^CD

0 £

> co

cd cd dqcd

£ CO o cd CO CD

> co

> cd

m co cd


Total length	Screw		Weight	Catalog No.
R	Size	S	(kg)	Catalog No.
125	—	—	2.90	SW5-R1
125	—	—	2.90	SW5-R2
150	—	—	4.30	SW6-R1
150	—	—	4.30	SW6-R2

[Caution on Secondary Operations]

© Please read "Caution on Performing Secondary Operations" (Page 416) when performing modifications and/or secondary operations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available.

© Due to the gear teeth being induction hardened, no secondary operations can be performed on tooth areas including the bottom land (approx. 1 mm). Use carbide tools for the modification of the shaft area near the bottom land.

Bronze Worm Wheels & Gray Iron Worm Wheels

E F

E . Fl

■(H)

* CS has a sand mold casting finish.


Hub width	Total length	Mounting distance	Allowable torque (N'iïl)	Allowable torque (kgf • m)	Backlash (mm)	Weight (kg)	Catalog No.
F	G	J	Surface durability	Surface durability	Backlash (mm)	Weight (kg)	Catalog No.
20 20	65 65	85 85	117 115	12.0 11.7	0.20~0.40 0.20~0.40	3.60 3.60	BG5-20R1 BG5-20R2
20 20	72 72	100 100	185 183	18.9 18.6	0.22~0.42 0.22~0.42	6.10 6.10	BG6-20R1 BG6-20R2


Hub width	Total length	Web thickness	Web O.D.	Mounting distance	Allowable torque (Nth)	Allowable torque (kgftn)	Backlash	Weight
					Allowable torque (Nth)	Allowable torque (kgftn)		Weight	i. i,—,,—I i\ ii-i
F	G	(H)	( I )	J	Surface durability	Surface durability	(mm)	(kg)	Catalog No.
20	65	_—	_—	85	70.3	7.17	0.20~0.40	3.00	CG5-20R1
20	65	_—	_—	85	68.9	7.03	0.20~0.40	3.00	CG5-20R2
20	65	(13)	(127)	110	150	15.3	0.20~0.40	4.40	CG5-30R1
20	65	(13)	(127)	110	150	15.3	0.20~0.40	4.40	CG5-30R2
20	65	(16)	(172)	135	258	26.3	0.20~0.40	7.00	CG5-40R1
20	65	(16)	(223)	160	390	39.8	0.20~0.40	9.20	CG5-50R1
20	65	(16)	(223)	160	390	39.7	0.20~0.40	9.20	CG5-50R2
20	65	(13)	(276)	185	548	55.9	0.20~0.40	13.0	CG5-60R1
20	72	_—	_—	100	111	11.3	0.22~0.42	5.10	CG6-20R1
20	72	_—	_—	100	110	11.2	0.22~0.42	5.10	CG6-20R2
20	72	(15)	(155)	130	237	24.2	0.22~0.42	7.60	CG6-30R1
20	72	(15)	(155)	130	238	24.3	0.22~0.42	7.60	CG6-30R2
20	72	(15)	(213)	160	407	41.5	0.22~0.42	10.0	CG6-40R1
20	72	(16)	(275)	190	615	62.8	0.22~0.42	13.0	CG6-50R1
20	72	(16)	(275)	190	620	63.2	0.22~0.42	13.0	CG6-50R2
20	72	(17)	(336)	220	865	88.2	0.22~0.42	19.0	CG6-60R1

[Cautionon Secondary Operations] © Please read "Caution on Performing Secondary Operations" (Page 416) when performing modifications and/or secondary operations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available.

■ CG5 Allowable Worm Wheel Torques (N-m) ■ CG6 Allowable Worm Wheel Torques (N-m)


Worm rpm Catalog No©~\_	30	100	300	600	Worm rpm Catalog NoT"~~\_	30	100	300	600
CG5-20R1	87.4	70.3	54.7	43.8	CG6-20R1	139	111	86.2	(69.0)
CG5-20R2	87.9	68.9	51.5	41.0	CG6-20R2	141	110	81.8	(65.1)
CG5-30R1	185	150	119	96.8	CG6-30R1	294	237	187	(153)
CG5-30R2	187	150	114	90.6	CG6-30R2	299	238	181	(144)
CG5-40R1	316	258	206	170	CG6-40R1	502	407	325	(268)
CG5-50R1	477	390	315	261	CG6-50R1	760	615	496	(412)
CG5-50R2	483	390	307	249	CG6-50R2	774	620	488	(395)
CG5-60R1	668	548	443	369	CG6-60R1	1060	865	698	(582)
