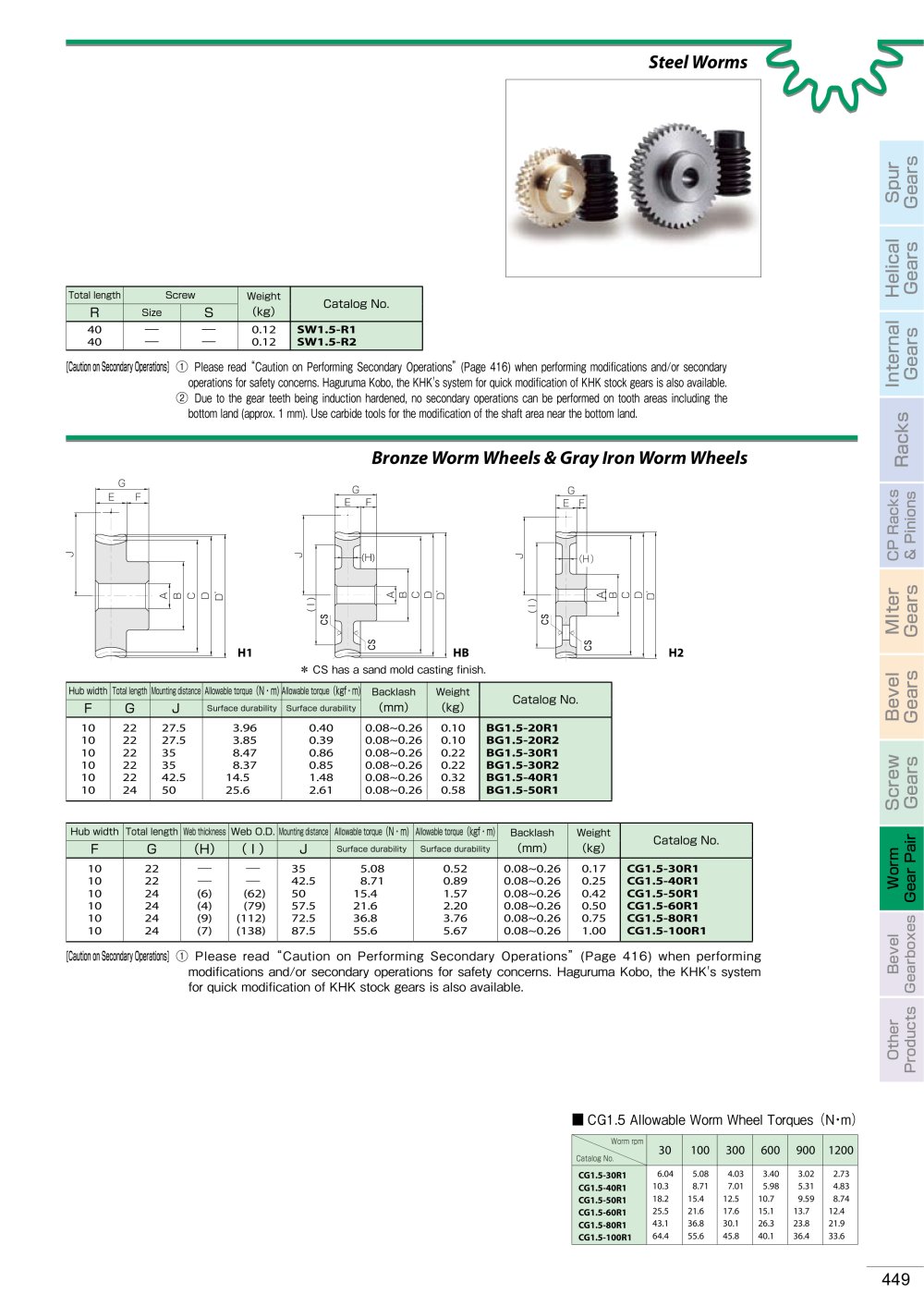

Steel Worms


Total length	Screw		Weight	Catalog No.
R	Size	S	(kg)	Catalog No.
40	—	—	0.12	SW1.5-R1
40	—	—	0.12	SW1.5-R2

CD q

"cô to

.9 cô 1d cd ICD

c !_

£ CD CO

!_ CO

CD J=

^CD

œ £

> co

CD CD

£ cô o cd COCD

Ë°-° b

> (d

> cd

m co

cd cl

[Cautionon Secondary Opérations] © Please read "Caution on Performing Secondary Opérations" (Page 416) when performing modifications and/or secondary opérations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available. © Due to the gear teeth being induction hardened, no secondary operations can be performed on tooth areas including the bottom land (approx. 1 mm). Use carbide tools for the modification of the shaft area near the bottom land.

Bronze Worm Wheels & Gray Iron Worm Wheels

E F

_G_, .. G

E . F I

(H)

* CS has a sand mold casting finish.


Hub width	Total length	Mounting distance	Allowable torque (N'm)	Allowable torque (kgf • m)	Backlash (mm)	Weight (kg)	Catalog No.
F	G	J	Surface durability	Surface durability	Backlash (mm)	Weight (kg)	Catalog No.
10	22	27.5	3.96	0.40	0.08~0.26	0.10	BG1.5-20R1
10	22	27.5	3.85	0.39	0.08~0.26	0.10	BG1.5-20R2
10	22	35	8.47	0.86	0.08~0.26	0.22	BG1.5-30R1
10	22	35	8.37	0.85	0.08~0.26	0.22	BG1.5-30R2
10	22	42.5	14.5	1.48	0.08~0.26	0.32	BG1.5-40R1
10	24	50	25.6	2.61	0.08~0.26	0.58	BG1.5-50R1


Hub width	Total length	Web thickness	Web O.D.	Mounting distance	Allowable torque (Ntti)	Allowable torque (kgfTn)	Backlash (mm)	Weight (kg)	Catalog No.
F	G	(H)	( I )	J	Surface durability	Surface durability	Backlash (mm)	Weight (kg)	Catalog No.
10	22	—	_—	35	5.08	0.52	0.08~0.26	0.17	CG1.5-30R1
10	22	—	—	42.5	8.71	0.89	0.08~0.26	0.25	CG1.5-40R1
10	24	(6)	(62)	50	15.4	1.57	0.08~0.26	0.42	CG1.5-50R1
10	24	(4)	(79)	57.5	21.6	2.20	0.08~0.26	0.50	CG1.5-60R1
10	24	(9)	(112)	72.5	36.8	3.76	0.08~0.26	0.75	CG1.5-80R1
10	24	(7)	(138)	87.5	55.6	5.67	0.08~0.26	1.00	CG1.5-100R1

[Cautionon Secondary Operations] © Please read "Caution on Performing Secondary Operations" (Page 416) when performing modifications and/or secondary operations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available.

■ CG1.5 Allowable Worm Wheel Torques (N-m)


Worm rpm Catalog No©~\_	30	100	300	600	900	1200
cg1.5-30r1	6.04	5.08	4.03	3.40	3.02	2.73
cg1.5-40r1	10.3	8.71	7.01	5.98	5.31	4.83
cg1.5-50r1	18.2	15.4	12.5	10.7	9.59	8.74
cg1.5-60r1	25.5	21.6	17.6	15.1	13.7	12.4
cg1.5-80r1	43.1	36.8	30.1	26.3	23.8	21.9
cg1.5-100r1	64.4	55.6	45.8	40.1	36.4	33.6

449
