co (T)

OJ CO

.9 co-Id cd I cd

5 co

£ cd

co DC

s-i

!_ co

CD J= +j CO

^cd

0 £

> CO CD CD

oqcd

£ CO O CD co cd

> co

> cd CD

9> o

5^ 00 co cd

CO cl

i s1k

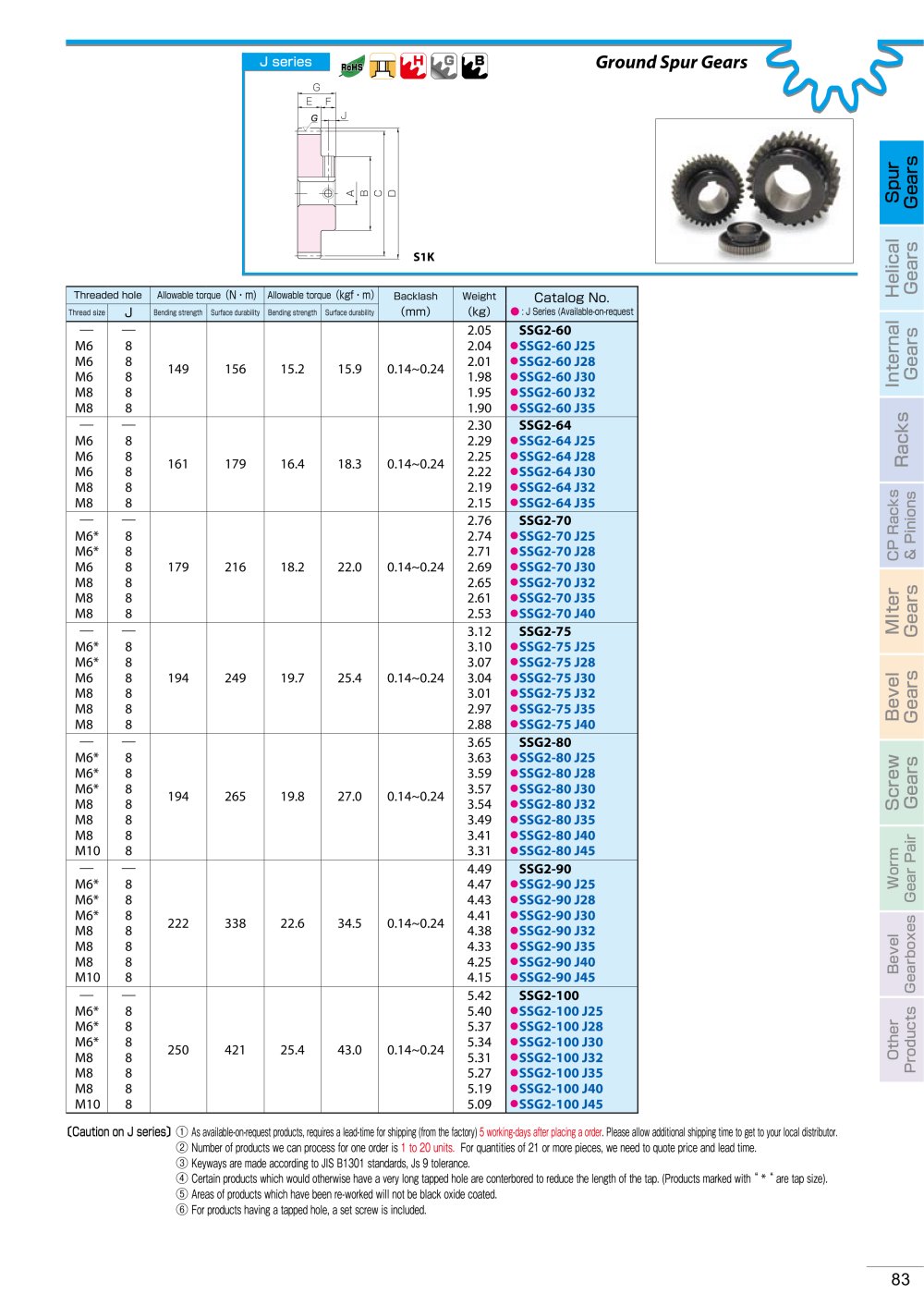

Threaded hole		Allowable torque (N^-m)		Allowable torque (kgf-m)		Backlash	Weight	Catalog No.
Thread size	J	Bending strength	Surface durability	Bending strength	Surface durability	(mm)	(kg)	• : J Series (Available-on-request
—	—						2.05	SSG2-60
M6	8						2.04	• SSG2-60 J25
M6 M6	8 8	149	156	15.2	15.9	0.14~0.24	2.01 1.98	• SSG2-60 J28 ^SSG2-60 J30
M8	8						1.95	^SSG2-60 J32
M8	8						1.90	^SSG2-60 J35
—	—						2.30	SSG2-64
M6	8						2.29	^SSG2-64 J25
M6 M6	8 8	161	179	16.4	18.3	0.14~0.24	2.25 2.22	^SSG2-64 J28 ^SSG2-64 J30
M8	8						2.19	_•SSG2-64 J32
M8	8						2.15	^SSG2-64 J35
—	—						2.76	SSG2-70
M6*	8						2.74	^SSG2-70 J25
M6*	8						2.71	_•SSG2-70 J28
M6	8	179	216	18.2	22.0	0.14~0.24	2.69	^SSG2-70 J30
M8	8						2.65	_•SSG2-70 J32
M8	8						2.61	_•SSG2-70 J35
M8	8						2.53	^SSG2-70 J40
—	—						3.12	SSG2-75
M6*	8						3.10	^SSG2-75 J25
M6*	8						3.07	^SSG2-75 J28
M6	8	194	249	19.7	25.4	0.14~0.24	3.04	^SSG2-75 J30
M8	8						3.01	^SSG2-75 J32
M8	8						2.97	^SSG2-75 J35
M8	8						2.88	^SSG2-75 J40
—	—						3.65	SSG2-80
M6*	8						3.63	_•SSG2-80 J25
M6*	8						3.59	_•SSG2-80 J28
M6* M8	8 8	194	265	19.8	27.0	0.14~0.24	3.57 3.54	^SSG2-80 J30 ^SSG2-80 J32
M8	8						3.49	_•SSG2-80 J35
M8	8						3.41	^SSG2-80 J40
M10	8						3.31	^SSG2-80 J45
—	—						4.49	SSG2-90
M6*	8						4.47	^SSG2-90 J25
M6*	8						4.43	^SSG2-90 J28
M6* M8	8 8	222	338	22.6	34.5	0.14~0.24	4.41 4.38	^SSG2-90 J30 ^SSG2-90 J32
M8	8						4.33	_•SSG2-90 J35
M8	8						4.25	^SSG2-90 J40
M10	8						4.15	^SSG2-90 J45
—	—						5.42	SSG2-100
M6*	8						5.40	^SSG2-100 J25
M6*	8						5.37	^SSG2-100 J28
M6* M8	8 8	250	421	25.4	43.0	0.14~0.24	5.34 5.31	^SSG2-100 J30 ^SSG2-100 J32
M8	8						5.27	^SSG2-100 J35
M8	8						5.19	^SSG2-100 J40
M10	8						5.09	^SSG2-100 J45

(Caution on J series] © As available-on-request products, requires a lead-time for shipping (from the factory) 5 working-days after placing a order. Please allow additional shipping time to get to your local distributor. © Number of products we can process for one order is 1 to 20 units. For quantities of 21 or more pieces, we need to quote price and lead time. ® Keyways are made according to JIS B1301 standards, Js 9 tolerance.

© Certain products which would otherwise have a very long tapped hole are conterbored to reduce the length of the tap. (Products marked with " * " are tap size). © Areas of products which have been re-worked will not be black oxide coated. © For products having a tapped hole, a set screw is included.
