a. ^roCD (T)

"co co

.9 cu ai cu I CD

5 CO £ CD

co co

s-i

!_ CO

CD J= +j CO

> CO

CD CD

g CO

£ CO O CD CO CD

> co

> (d

9> o 5£

00 co cd

CO CL

i s1k

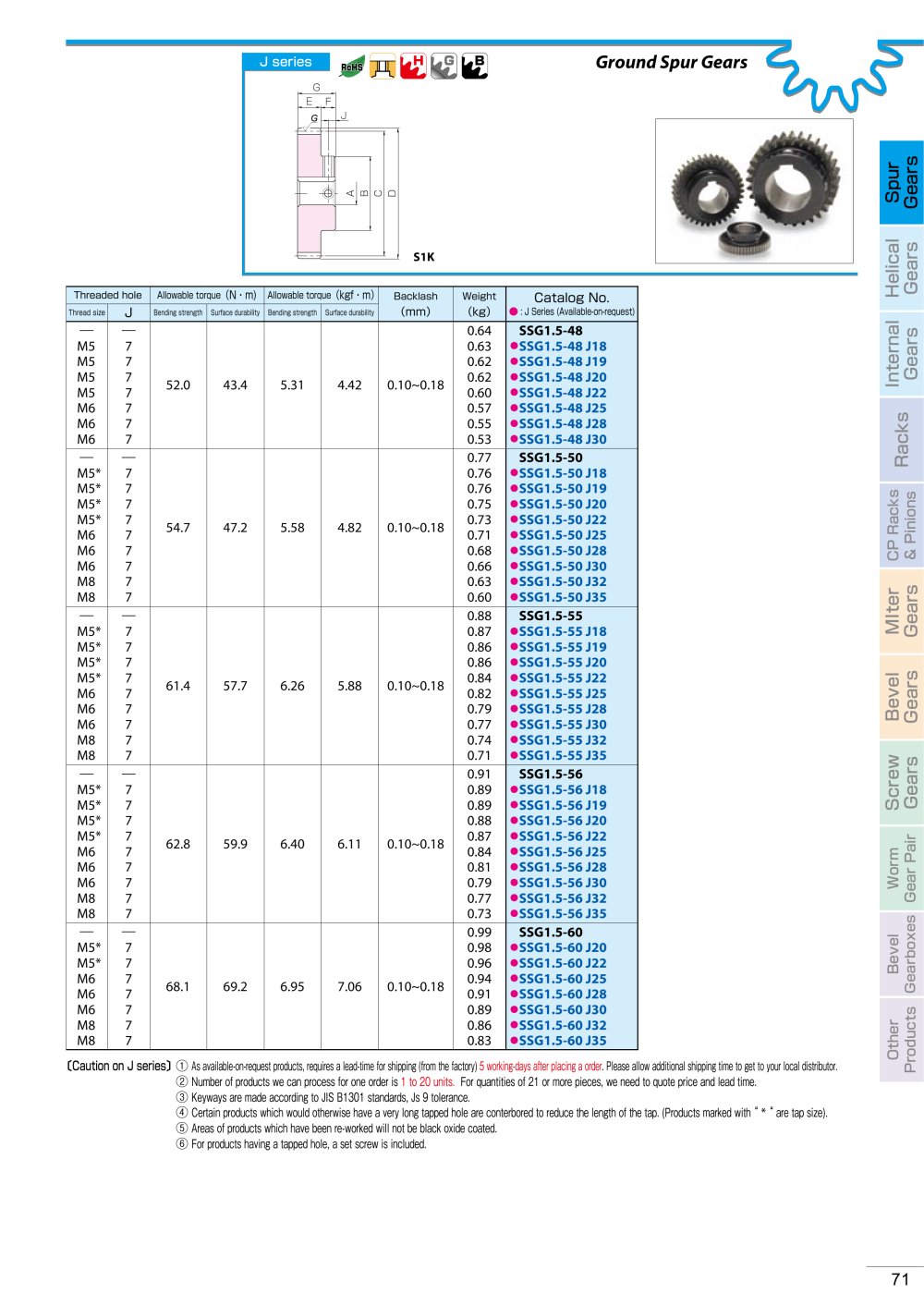

Threaded hole		Allowable torque (N^-m)		Allowable torque (kgf-m)		Backlash	Weight	Catalog No.
Thread size	J	Bending strength	Surface durability	Bending strength	Surface durability	(mm)	(kg)	• : J Series (Avallable-on-request)
—	—						0.64	SSG1.5-48
M5	7						0.63	• SSG1.5-48 J18
M5	7						0.62	• SSG1.5-48 J19
M5 M5	7 7	52.0	43.4	5.31	4.42	0.10~0.18	0.62 0.60	^SSG1.5-48 J20 ^SSG1.5-48 J22
M6	7						0.57	^SSG1.5-48 J25
M6	7						0.55	^SSG1.5-48 J28
M6	7						0.53	^SSG1.5-48 J30
—	—						0.77	SSG1.5-50
M5*	7						0.76	^SSG1.5-50 J18
M5*	7						0.76	^SSG1.5-50 J19
M5*	7						0.75	^SSG1.5-50 J20
M5* M6	7 7	54.7	47.2	5.58	4.82	0.10~0.18	0.73 0.71	^SSG1.5-50 J22 ^SSG1.5-50 J25
M6	7						0.68	^SSG1.5-50 J28
M6	7						0.66	^SSG1.5-50 J30
M8	7						0.63	^SSG1.5-50 J32
M8	7						0.60	^SSG1.5-50 J35
—	—						0.88	SSG1.5-55
M5*	7						0.87	^SSG1.5-55 J18
M5*	7						0.86	^SSG1.5-55 J19
M5*	7						0.86	^SSG1.5-55 J20
M5* M6	7 7	61.4	57.7	6.26	5.88	0.10~0.18	0.84 0.82	^SSG1.5-55 J22 ^SSG1.5-55 J25
M6	7						0.79	^SSG1.5-55 J28
M6	7						0.77	^SSG1.5-55 J30
M8	7						0.74	^SSG1.5-55 J32
M8	7						0.71	^SSG1.5-55 J35
—	—						0.91	SSG1.5-56
M5*	7						0.89	^SSG1.5-56 J18
M5*	7						0.89	^SSG1.5-56 J19
M5*	7						0.88	^SSG1.5-56 J20
M5* M6	7 7	62.8	59.9	6.40	6.11	0.10~0.18	0.87 0.84	^SSG1.5-56 J22 ^SSG1.5-56 J25
M6	7						0.81	^SSG1.5-56 J28
M6	7						0.79	^SSG1.5-56 J30
M8	7						0.77	^SSG1.5-56 J32
M8	7						0.73	^SSG1.5-56 J35
—	—						0.99	SSG1.5-60
M5*	7						0.98	^SSG1.5-60 J20
M5*	7						0.96	^SSG1.5-60 J22
M6 M6	7 7	68.1	69.2	6.95	7.06	0.10~0.18	0.94 0.91	^SSG1.5-60 J25 ^SSG1.5-60 J28
M6	7						0.89	^SSG1.5-60 J30
M8	7						0.86	^SSG1.5-60 J32
M8	7						0.83	^SSG1.5-60 J35

(Caution on J series] © As available-on-request products, requires a lead-time for shipping (from the factory) 5 working-days after placing a order. Please allow additional shipping time to get to your local distributor. © Number of products we can process for one order is 1 to 20 units. For quantities of 21 or more pieces, we need to quote price and lead time. ® Keyways are made according to JIS B1301 standards, Js 9 tolerance.

© Certain products which would otherwise have a very long tapped hole are conterbored to reduce the length of the tap. (Products marked with " * " are tap size). © Areas of products which have been re-worked will not be black oxide coated. © For products having a tapped hole, a set screw is included.
