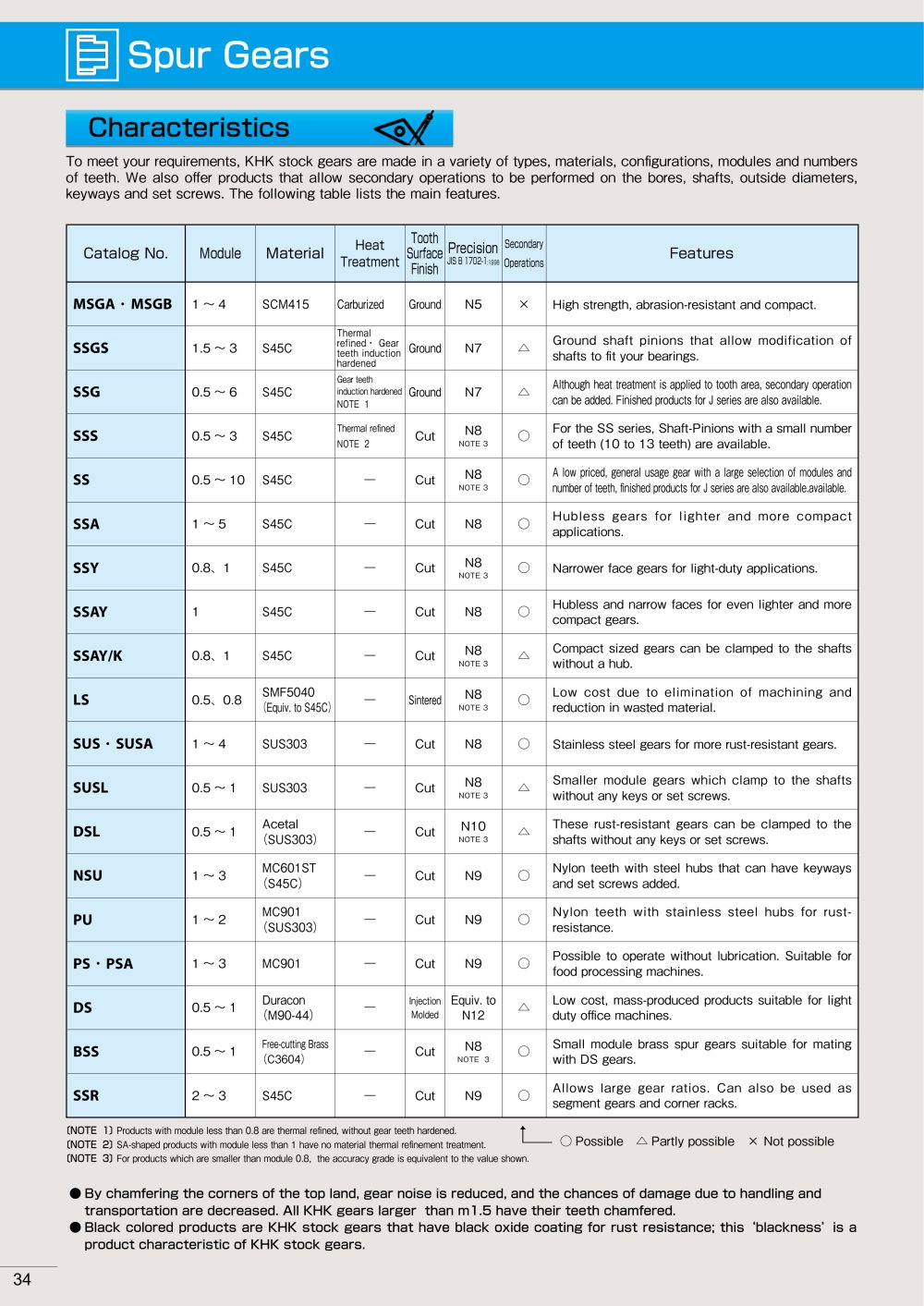

i[ Spur Gears


Catalog No.	Module	Material	Heat Treatment	Tooth Surface Finish	Precision JIS B 1702-11998	Secondary Operations	Features
MSGA • MSGB	1-4	SCM415	Carburized	Ground	N5	X	High strength, abrasion-resistant and compact.
SSGS	1.5-3	S45C	Thermal ha"	Ground	N7		Ground shaft pinions that allow modification of shafts to fit your bearings.
SSG	0.5-6	S45C	Gear teeth induction hardened NOTE 1	Ground	N7	△	Although heat treatment is applied to tooth area, secondary operation can be added. Finished products for J series are also available.
SSS	0.5-3	S45C	Thermal refined NOTE 2	Cut	N8 NOTE 3	O	For the SS series, Shaft-Pinions with a small number of teeth (10 to 13 teeth) are available.
SS	0.5-10	S45C	—	Cut	N8 NOTE 3	O	A low priced, general usage gear with a large selection of modules and number of teeth, finished products for J series are also available.available.
SSA	1-5	S45C	—	Cut	N8	O	Hubless gears for lighter and more compact applications.
SSY	0.8,1	S45C	—	Cut	N8 NOTE 3	O	Narrower face gears for light-duty applications.
SSAY	1	S45C	—	Cut	N8	O	Hubless and narrow faces for even lighter and more compact gears.
SSAY/K	0.8,1	S45C	—	Cut	N8 NOTE 3	△	Compact sized gears can be clamped to the shafts without a hub.
LS	0.5,0.8	SMF5040 (Equiv. to S45C)	—	Sintered	N8 NOTE 3	O	Low cost due to elimination of machining and reduction in wasted material.
SUS • SUSA	1-4	SUS303	—	Cut	N8	O	Stainless steel gears for more rust-resistant gears.
SUSL	0.5-1	SUS303	—	Cut	N8 NOTE 3	△	Smaller module gears which clamp to the shafts without any keys or set screws.
DSL	0.5-1	Acetal (SUS303)	—	Cut	N10 NOTE 3	△	These rust-resistant gears can be clamped to the shafts without any keys or set screws.
NSU	1-3	MC601ST (S45C)	—	Cut	N9	O	Nylon teeth with steel hubs that can have keyways and set screws added.
PU	1-2	MC901 (SUS303)	—	Cut	N9	O	Nylon teeth with stainless steel hubs for rust-resistance.
PS • PSA	1-3	MC901	—	Cut	N9	O	Possible to operate without lubrication. Suitable for food processing machines.
DS	0.5-1	Duracon (M90-44)	—	Injection Molded	Equiv. to N12	△	Low cost, mass-produced products suitable for light duty office machines.
BSS	0.5-1	Free-cutting Brass (C3604)	—	Cut	N8 NOTE 3	O	Small module brass spur gears suitable for mating with DS gears.
SSR	2-3	S45C	—	Cut	N9	O	Allows large gear ratios. Can also be used as segment gears and corner racks.

(NOTE 15 Products with module less than 0.8 are thermal refined, without gear teeth hardened. t

(NOTE 25 SA-shaped products with module less than 1 have no material thermal refinement treatment. ¹- O Possible △ Partly possible X Not possible

(NOTE 35 For products which are smaller than module 0.8, the accuracy grade is equivalent to the value shown.

• By chamfering the corners of the top land, gear noise is reduced, and the chances of damage due to handling and transportation are decreased. All KHK gears larger than ml.5 have their teeth chamfered.

• Black colored products are KHK stock gears that have black oxide coating for rust resistance; this 'blackness' is a product characteristic of KHK stock gears.
