E F G

a. ^ro

rn ^fflCD (T)

"co co

.9 co ai cu

1 CD

2 co

£ cd cCD

co co

s-i

!_ co

cd j= +j cd

> co

cd cd

g co £ co

o cd CO CD

> to

> (D

9> o

5£ m co a>

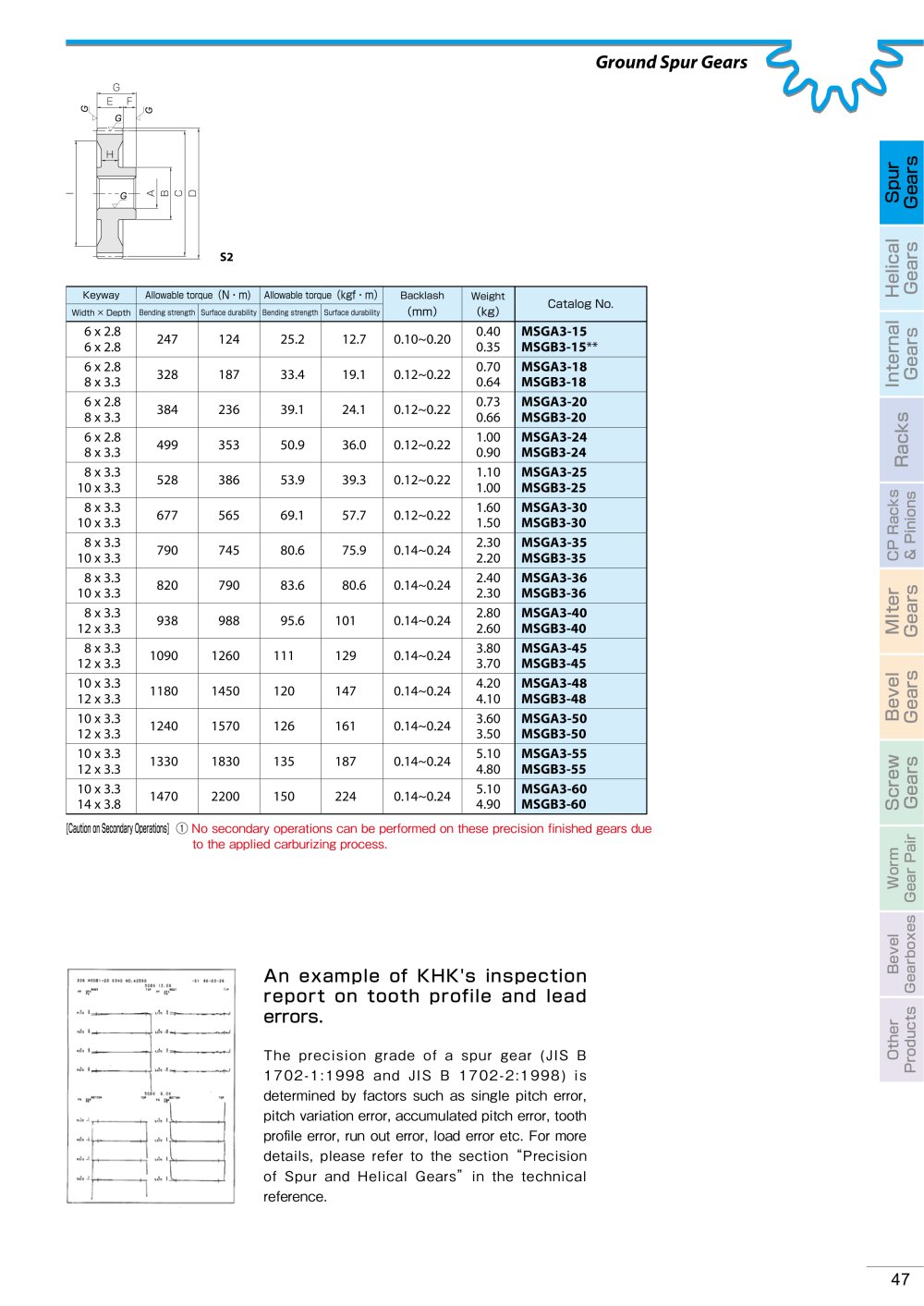

Keyway	Allowable torque (N^-m)		Allowable torque (kgf-m)		Backlash (mm)	Weight (kg)	Catalog No.
Width x Depth	Bending strength	Surface durability	Bending strength	Surface durability	Backlash (mm)	Weight (kg)	Catalog No.
6 x 2.8 6 x 2.8	247	124	25.2	12.7	0.10-0.20	0.40 0.35	MSGA3-15 MSGB3-15**
6 x 2.8 8 x 3.3	328	187	33.4	19.1	0.12-0.22	0.70 0.64	MSGA3-18 MSGB3-18
6 x 2.8 8 x 3.3	384	236	39.1	24.1	0.12-0.22	0.73 0.66	MSGA3-20 MSGB3-20
6 x 2.8 8 x 3.3	499	353	50.9	36.0	0.12-0.22	1.00 0.90	MSGA3-24 MSGB3-24
8 x 3.3 10 x 3.3	528	386	53.9	39.3	0.12-0.22	1.10 1.00	MSGA3-25 MSGB3-25
8 x 3.3 10 x 3.3	677	565	69.1	57.7	0.12-0.22	1.60 1.50	MSGA3-30 MSGB3-30
8 x 3.3 10 x 3.3	790	745	80.6	75.9	0.14-0.24	2.30 2.20	MSGA3-35 MSGB3-35
8 x 3.3 10 x 3.3	820	790	83.6	80.6	0.14-0.24	2.40 2.30	MSGA3-36 MSGB3-36
8 x 3.3 12 x 3.3	938	988	95.6	101	0.14-0.24	2.80 2.60	MSGA3-40 MSGB3-40
8 x 3.3 12 x 3.3	1090	1260	111	129	0.14-0.24	3.80 3.70	MSGA3-45 MSGB3-45
10 x 3.3 12 x 3.3	1180	1450	120	147	0.14-0.24	4.20 4.10	MSGA3-48 MSGB3-48
10 x 3.3 12 x 3.3	1240	1570	126	161	0.14-0.24	3.60 3.50	MSGA3-50 MSGB3-50
10 x 3.3 12 x 3.3	1330	1830	135	187	0.14-0.24	5.10 4.80	MSGA3-55 MSGB3-55
10 x 3.3 14 x 3.8	1470	2200	150	224	0.14-0.24	5.10 4.90	MSGA3-60 MSGB3-60

[Caution on Secondary Operations] © No secondary operations can be performed on these precision finished gears due to the applied carburizing process.

An example of KHK's inspection report on tooth profile and lead errors.

The precision grade of a spur gear (JIS B 1702-1:1998 and JIS B 1702-2:1998) is determined by factors such as single pitch error, pitch variation error, accumulated pitch error, tooth profile error, run out error, load error etc. For more details, please refer to the section "Precision of Spur and Helical Gears" in the technical reference.
