Steel Spur Gears

J series

i S1K

.9 cô

ID cd

5 co £ cd

co co

i_ co cd J= +j co

> co

cd cd

£ cô

o cd

CD CD

> CD

> (D

CD CD

CO CL

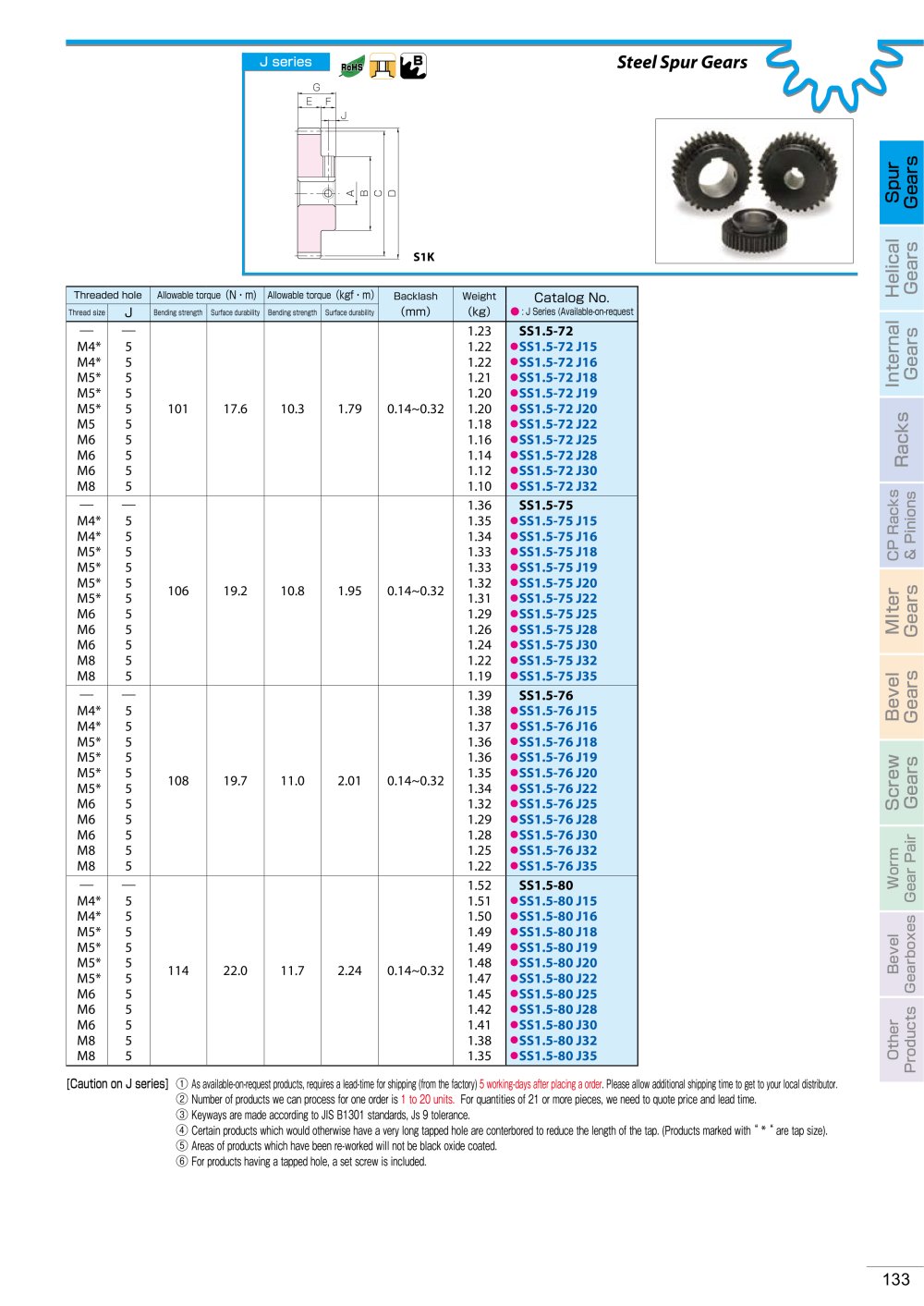

Threaded hole		Allowable torque (N^-m)		Allowable torque (kgf-m)		Backlash	Weight	Catalog No.
Thread size	J	Bending strength	Surface durability	Bending strength	Surface durability	(mm)	(kg)	• : J Series (Available-on-request
—	—						1.23	SS1.5-72
M4*	5						1.22	• SS1.5-72 J15
M4*	5						1.22	• SS1.5-72 J16
M5*	5						1.21	^SS1.5-72 J18
M5*	5						1.20	^SS1.5-72 J19
M5*	5	101	17.6	10.3	1.79	0.14~0.32	1.20	^SS1.5-72 J20
M5	5						1.18	^SS1.5-72 J22
M6	5						1.16	^SS1.5-72 J25
M6	5						1.14	^SS1.5-72 J28
M6	5						1.12	^SS1.5-72 J30
M8	5						1.10	^SS1.5-72 J32
—	—						1.36	SS1.5-75
M4*	5						1.35	^SS1.5-75 J15
M4*	5						1.34	^SS1.5-75 J16
M5*	5						1.33	^SS1.5-75 J18
M5*	5						1.33	^SS1.5-75 J19
M5* M5*	5 5	106	19.2	10.8	1.95	0.14~0.32	1.32 1.31	^SS1.5-75 J20 ^SS1.5-75 J22
M6	5						1.29	^SS1.5-75 J25
M6	5						1.26	^SS1.5-75 J28
M6	5						1.24	^SS1.5-75 J30
M8	5						1.22	^SS1.5-75 J32
M8	5						1.19	^SS1.5-75 J35
—	—						1.39	SS1.5-76
M4*	5						1.38	^SS1.5-76 J15
M4*	5						1.37	^SS1.5-76 J16
M5*	5						1.36	^SS1.5-76 J18
M5*	5						1.36	^SS1.5-76 J19
M5* M5*	5 5	108	19.7	11.0	2.01	0.14~0.32	1.35 1.34	^SS1.5-76 J20 ^SS1.5-76 J22
M6	5						1.32	^SS1.5-76 J25
M6	5						1.29	^SS1.5-76 J28
M6	5						1.28	^SS1.5-76 J30
M8	5						1.25	^SS1.5-76 J32
M8	5						1.22	^SS1.5-76 J35
—	—						1.52	SS1.5-80
M4*	5						1.51	^SS1.5-80 J15
M4*	5						1.50	^SS1.5-80 J16
M5*	5						1.49	^SS1.5-80 J18
M5*	5						1.49	^SS1.5-80 J19
M5* M5*	5 5	114	22.0	11.7	2.24	0.14~0.32	1.48 1.47	^SS1.5-80 J20 ^SS1.5-80 J22
M6	5						1.45	^SS1.5-80 J25
M6	5						1.42	^SS1.5-80 J28
M6	5						1.41	^SS1.5-80 J30
M8	5						1.38	^SS1.5-80 J32
M8	5						1.35	^SS1.5-80 J35

[Caution on J series] © As available-on-request products, requires a lead-time for shipping (from the factory) 5 working-days after placing a order. Please allow additional shipping time to get to your local distributor. © Number of products we can process for one order is 1 to 20 units. For quantities of 21 or more pieces, we need to quote price and lead time. ® Keyways are made according to JIS B1301 standards, Js 9 tolerance.

© Certain products which would otherwise have a very long tapped hole are conterbored to reduce the length of the tap. (Products marked with " * " are tap size). © Areas of products which have been re-worked will not be black oxide coated. © For products having a tapped hole, a set screw is included.
