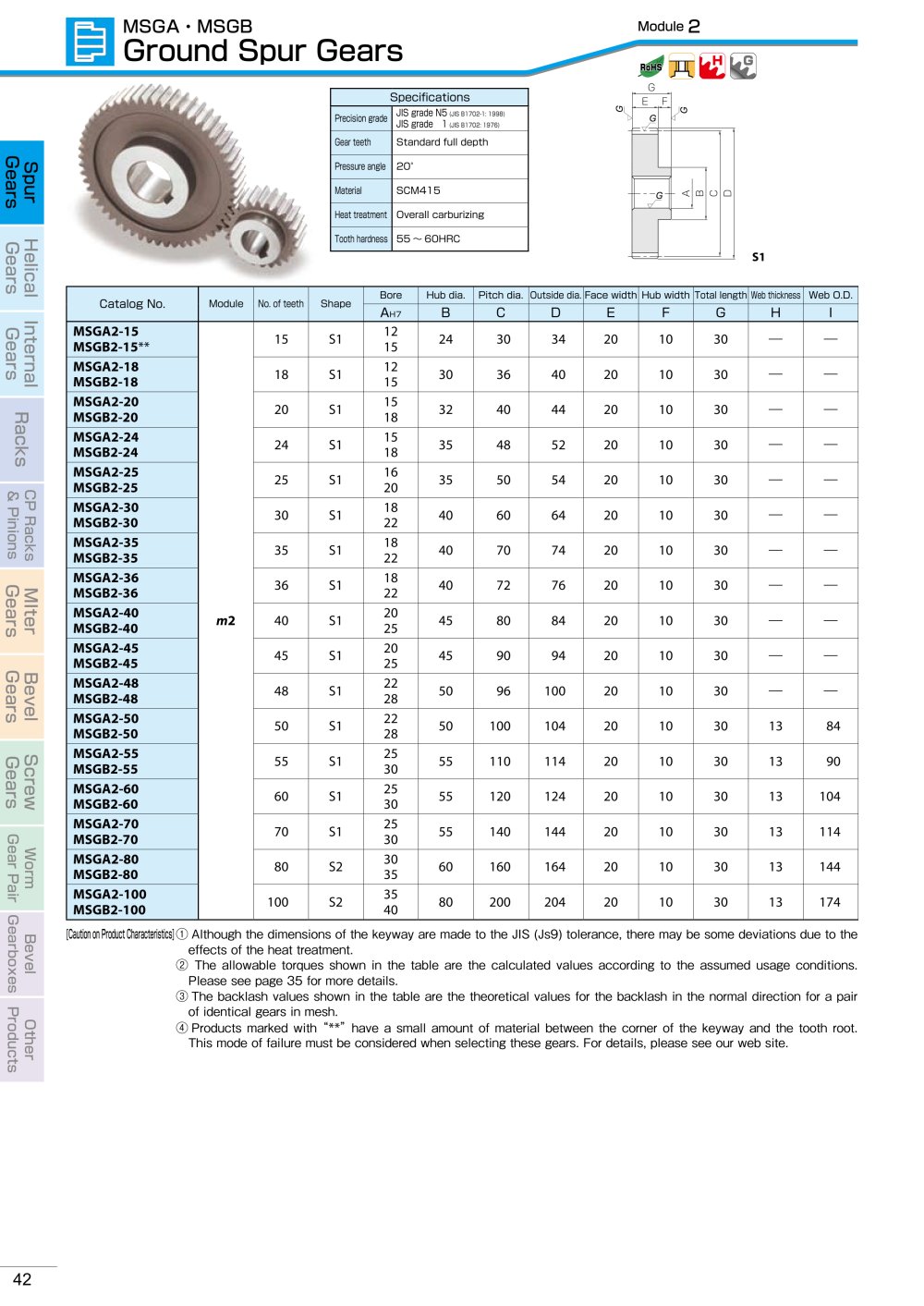

31 MSGA-MSGB
Module 2
Ground Spur Gears
RoHS
g
Specifications
Precision grade
JIS grade N5 (jis b1702-1: 1998) JIS grade 1 (jis b1702: 1976)
Gear teeth
Standard full depth
Pressure angle
20°
Material
SCM415
Heat treatment
Overall carburizing
Tooth hardness
55-60HRC
ta
E F
St <
ni
œ 1
co 1
Q) n
5 1
R
Q) O TT 0)
6 o s s
GM
cd 1
Q
GB
cd cd Q <
S 1
iQ
s λ
s1
Catalog No.
Module
No. of teeth
Shape
Bore
Hub dia.
Pitch dia.
Outside dia.
Face width
Hub width
Total length
Web thickness
Web O.D.
AH7
B
C
D
E
F
G
H
I
MSGA2-15 MSGB2-15**
15
S1
12 15
24
30
34
20
10
30
—
—
MSGA2-18 MSGB2-18
18
S1
12 15
30
36
40
20
10
30
—
—
MSGA2-20 MSGB2-20
20
S1
15 18
32
40
44
20
10
30
—
—
MSGA2-24 MSGB2-24
24
S1
15 18
35
48
52
20
10
30
—
—
MSGA2-25 MSGB2-25
25
S1
16 20
35
50
54
20
10
30
—
—
MSGA2-30 MSGB2-30
30
S1
18 22
40
60
64
20
10
30
—
—
MSGA2-35 MSGB2-35
35
S1
18 22
40
70
74
20
10
30
—
—
MSGA2-36 MSGB2-36
36
S1
18 22
40
72
76
20
10
30
—
—
MSGA2-40 MSGB2-40
40
S1
20 25
45
80
84
20
10
30
—
—
MSGA2-45 MSGB2-45
45
S1
20 25
45
90
94
20
10
30
—
—
MSGA2-48 MSGB2-48
48
S1
22 28
50
96
100
20
10
30
—
—
MSGA2-50 MSGB2-50
50
S1
22 28
50
100
104
20
10
30
13
84
MSGA2-55 MSGB2-55
55
S1
25 30
55
110
114
20
10
30
13
90
MSGA2-60 MSGB2-60
60
S1
25 30
55
120
124
20
10
30
13
104
MSGA2-70 MSGB2-70
70
S1
25 30
55
140
144
20
10
30
13
114
MSGA2-80 MSGB2-80
80
S2
30 35
60
160
164
20
10
30
13
144
MSGA2-100 MSGB2-100
100
S2
35 40
80
200
204
20
10
30
13
174
G
cd cd —\
"0 i
o
3
G
cd
0) OD
cd
co
"0
d ° 0 Q
co
[Cautionon Product Characteristics]© Although the dimensions of the keyway are made to the JIS (Js9) tolerance, there may be some deviations due to the effects of the heat treatment.
© The allowable torques shown in the table are the calculated values according to the assumed usage conditions.
Please see page 35 for more details. ® The backlash values shown in the table are the theoretical values for the backlash in the normal direction for a pair
of identical gears in mesh.
© Products marked with "**" have a small amount of material between the corner of the keyway and the tooth root. This mode of failure must be considered when selecting these gears. For details, please see our web site.
