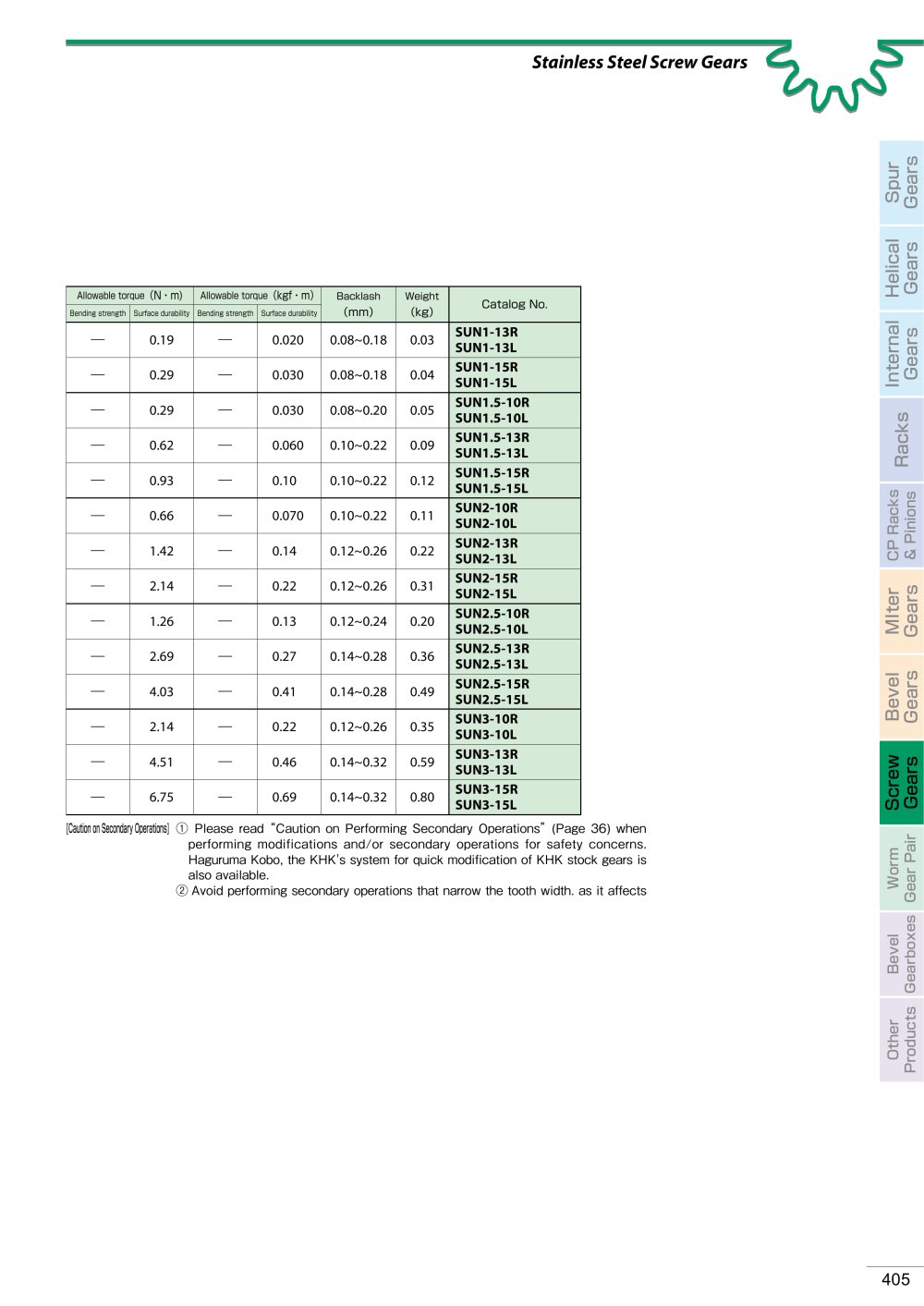

Stainless Steel Screw Gears

"cô to

.9 cô Id cd icd

£ cd çCD

o co DC

i_ co cd j= +j co

^CD

> co cd cd CD CD

£ cô o 0 CO CD

> cd

m cd

CD cn


Allowable torque (N*m)		Allowable torque (kgf'im)		Backlash (mm)	Weight (kg)	Catalog No.
Bending strength	Surface durability	Bending strength	Surface durability	Backlash (mm)	Weight (kg)	Catalog No.
—	0.19	—	0.020	0 . 08-0.18	003	SUN1-13R SUN1-13L
—	029	—	0.030	0 . 08~0.18	004	SUN1-15R SUN1-15L
—	0.29	—	0.030	0.08-0.20	005	SUN1.5-10R SUN1.5-10L
—	0.62	—	0.060	0.10-0 . 22	009	SUN1.5-13R SUN1.5-13L
—	0.93	—	0.10	0.10-0.22	0.12	SUN1.5-15R SUN1.5-15L
—	0.66	—	0.070	0.10-0.22	0.11	SUN2-10R SUN2-10L
—	142	—	0.14	0.12-0.26	022	SUN2-13R SUN2-13L
—	2.14	—	0.22	0.12-0 . 26	031	SUN2-15R SUN2-15L
—	1.26	—	0.13	0.12-0.24	020	SUN2.5-10R SUN2.5-10L
—	2.69	—	0.27	0.14-0.28	036	SUN2.5-13R SUN2.5-13L
—	403	—	0.41	0.14-0.28	0.49	SUN2.5-15R SUN2.5-15L
—	2.14	—	0.22	0.12-0 . 26	035	SUN3-10R SUN3-10L
—	4.51	—	0.46	0.14-0.32	059	SUN3-13R SUN3-13L
—	675	—	0.69	0.14-0.32	080	SUN3-15R SUN3-15L

[Cautionon Secondary Operations] © Please read "Caution on Performing Secondary Operations" (Page 36) when performing modifications and/or secondary operations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available.
