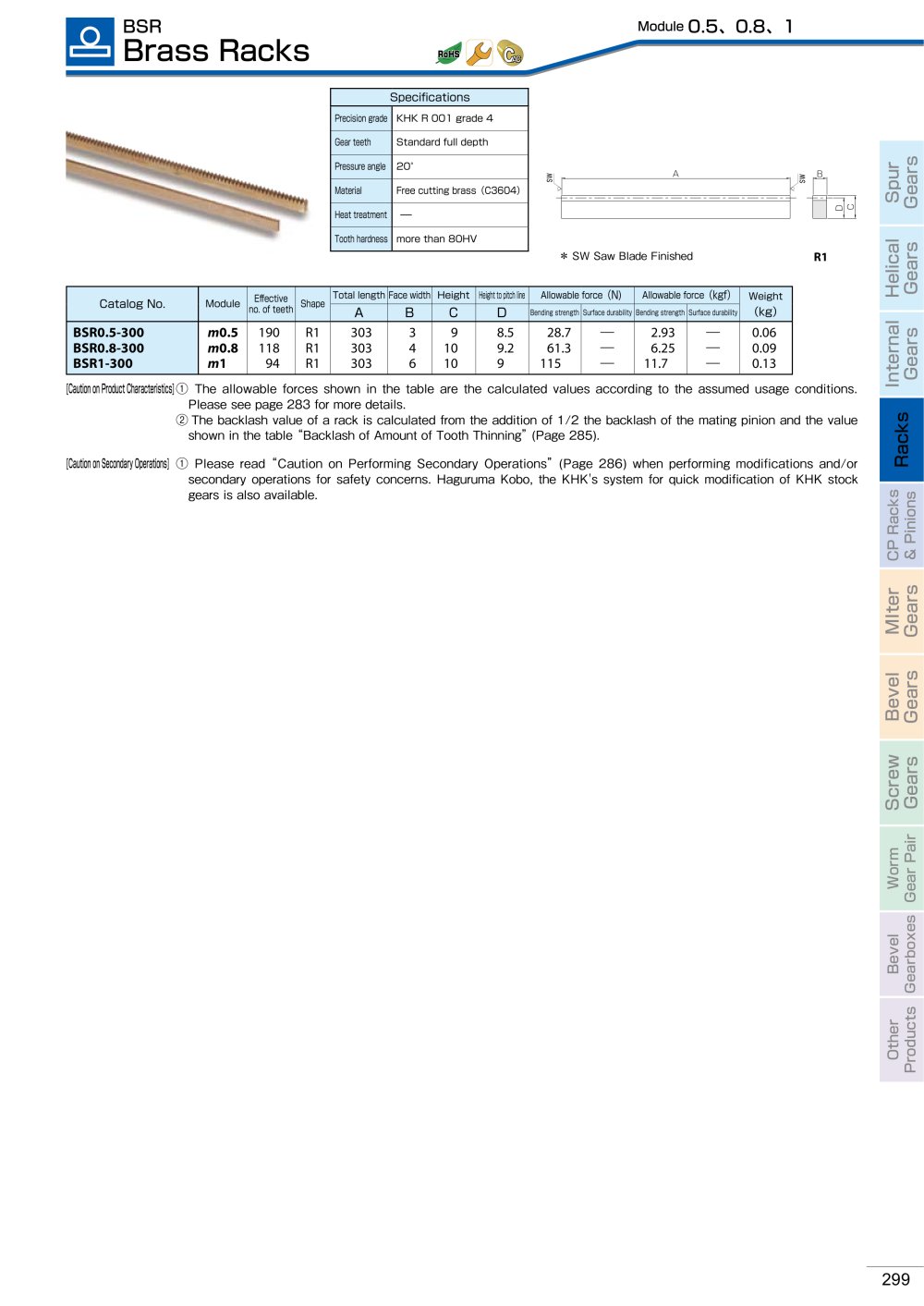

BSR

Brass Racks

Module 0.5^0.8^1

RoHS


	Specifications
	Precision grade	KHK R 001 grade 4
	Gear teeth	Standard full depth
	Pressure angle	20°
	Material	Free cutting brass(C3604)
	Heat treatment	—
	Tooth hardness	more than 80HV

a. ^rocd (t)

to co .9 cd id cd icd

5 co

£ cd

co o

cü

g-i

i_ co cd J= +j co

^cd œ £

> cü cd cd

m cd

£ cö o cd cd cd

ë°-

> ca

> cd CD

9> O

m co

cd CD

CO cl

* SW Saw Blade Finished


Catalog No.	Module	Effective	Shape	Total length	Face width	Height	Height to pitch line	Allowable force (N)		Allowable force (kgf)		Weight
Catalog No.	Module	no. of teeth	Shape	A	B	C	D	Bending strength	Surface durability	Bending strength	Surface durability	(kg)
BSR0.5-300	m0.5	190	R1	303	3	9	8.5	28.7	—	2.93	—	0.06
BSR0.8-300	m0.8	118	R1	303	4	10	9.2	61.3	—	6.25	—	0.09
BSR1-300	ml	94	R1	303	6	10	9	115	—	11.7	—	0.13

[Cautionon Product Characteristics]© The allowable forces shown in the table are the calculated values according to the assumed usage conditions. Please see page 283 for more details. © The backlash value of a rack is calculated from the addition of 1/2 the backlash of the mating pinion and the value shown in the table "Backlash of Amount of Tooth Thinning" (Page 285).

[Cautionon Secondary Operations] © Please read "Caution on Performing Secondary Operations" (Page 286) when performing modifications and/or secondary operations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available.
