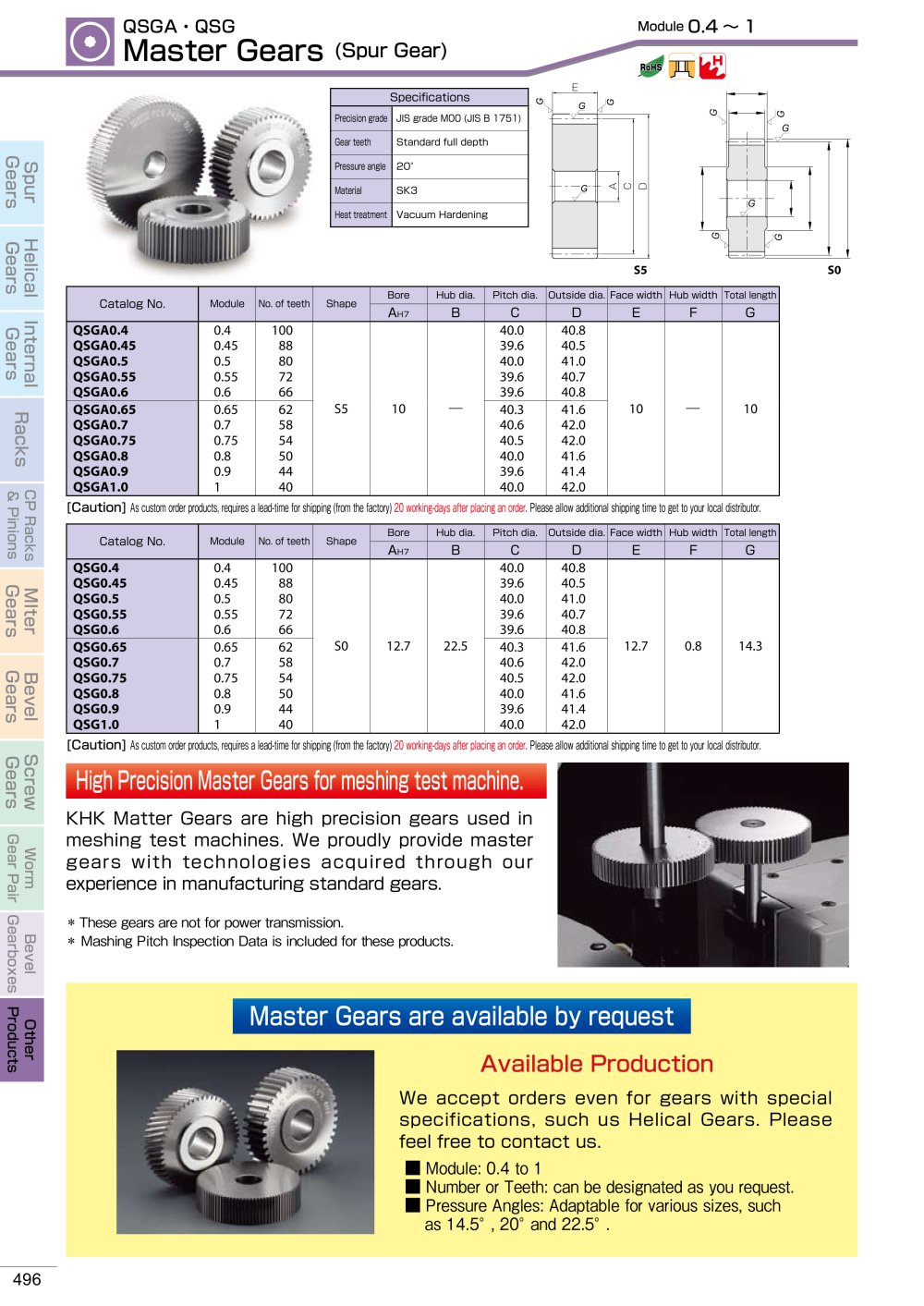

QSGA-QSG

Master Gears (Spur Gear)

Module 0.4~1


	Specifications
	Precision grade	JIS grade M00 (JIS B 1751)
	Gear teeth	Standard full depth
	Pressure angle	20°
	Material	SK3
	Heat treatment	Vacuum Hardening


, G ----
		Q


G	- <t U

cd ^ppco ^

^r ?

co i

a ^e

^s l ^R

TT 0)

& o

g o ^s ^s

cd ¹

^r cd co -i

odo

cd cd r <

^S ¹CD O

S c| ^s ë

<l cd

2Ü

Jca


Catalog No.	Module	No. of teeth	Shape	Bore	Hub dia.	Pitch dia.	Outside dia.	Face width	Hub width	Total length
Catalog No.	Module	No. of teeth	Shape	AH7	B	C	D	E	F	G
QSGA0.4	0.4	100				40.0	40.8
QSGA0.45	0.45	88				39.6	40.5
QSGA0.5	0.5	80				40.0	41.0
QSGA0.55	0.55	72				39.6	40.7
QSGA0.6	0.6	66				39.6	40.8
QSGA0.65	0.65	62	S5	10	—	40.3	41.6	10	—	10
QSGA0.7	0.7	58				40.6	42.0
QSGA0.75	0.75	54				40.5	42.0
QSGA0.8	0.8	50				40.0	41.6
QSGA0.9	0.9	44				39.6	41.4
QSGA1.0	1	40				40.0	42.0
[Caution] As custom order products, requires a lead-time for shipping (from the factory) 20 working-days after placing an order. Please allow additional shipping time to get to your local distributor.
Catalog No.	Module	No. of teeth	Shape	Bore	Hub dia.	Pitch dia.	Outside dia.	Face width	Hub width	Total length
Catalog No.	Module	No. of teeth	Shape	AH7	B	C	D	E	F	G
QSG0.4	0.4	100				40.0	40.8
QSG0.45	0.45	88				39.6	40.5
QSG0.5	0.5	80				40.0	41.0
QSG0.55	0.55	72				39.6	40.7
QSG0.6	0.6	66				39.6	40.8
QSG0.65	0.65	62	SO	12.7	22.5	40.3	41.6	12.7	0.8	14.3
QSG0.7	0.7	58				40.6	42.0
QSG0.75	0.75	54				40.5	42.0
QSG0.8	0.8	50				40.0	41.6
QSG0.9	0.9	44				39.6	41.4
QSG1.0	1	40				40.0	42.0

[Caution] As custom order products, requires a lead-time for shipping (from the factory) 20 working-days after placing an order. Please allow additional shipping time to get to your local distributor.

High Preoision Master Gears for meshing test machine.

KHK Matter Gears are high precision gears used in meshing test machines. We proudly provide master gears with technologies acquired through our experience in manufacturing standard gears.

* These gears are not for power transmission.

* Mashing Pitch Inspection Data is included for these products.

cd cd

^pi

CD Do

cd co

d °

Master Gears are available by request

Available Production

We accept orders even for gears with special specifications, such us Helical Gears. Please feel free to contact us.

■ Module: 0.4 to 1

■ Number or Teeth: can be designated as you request.

■ Pressure Angles: Adaptable for various sizes, such as 14.5° , 20° and 22.5° .
