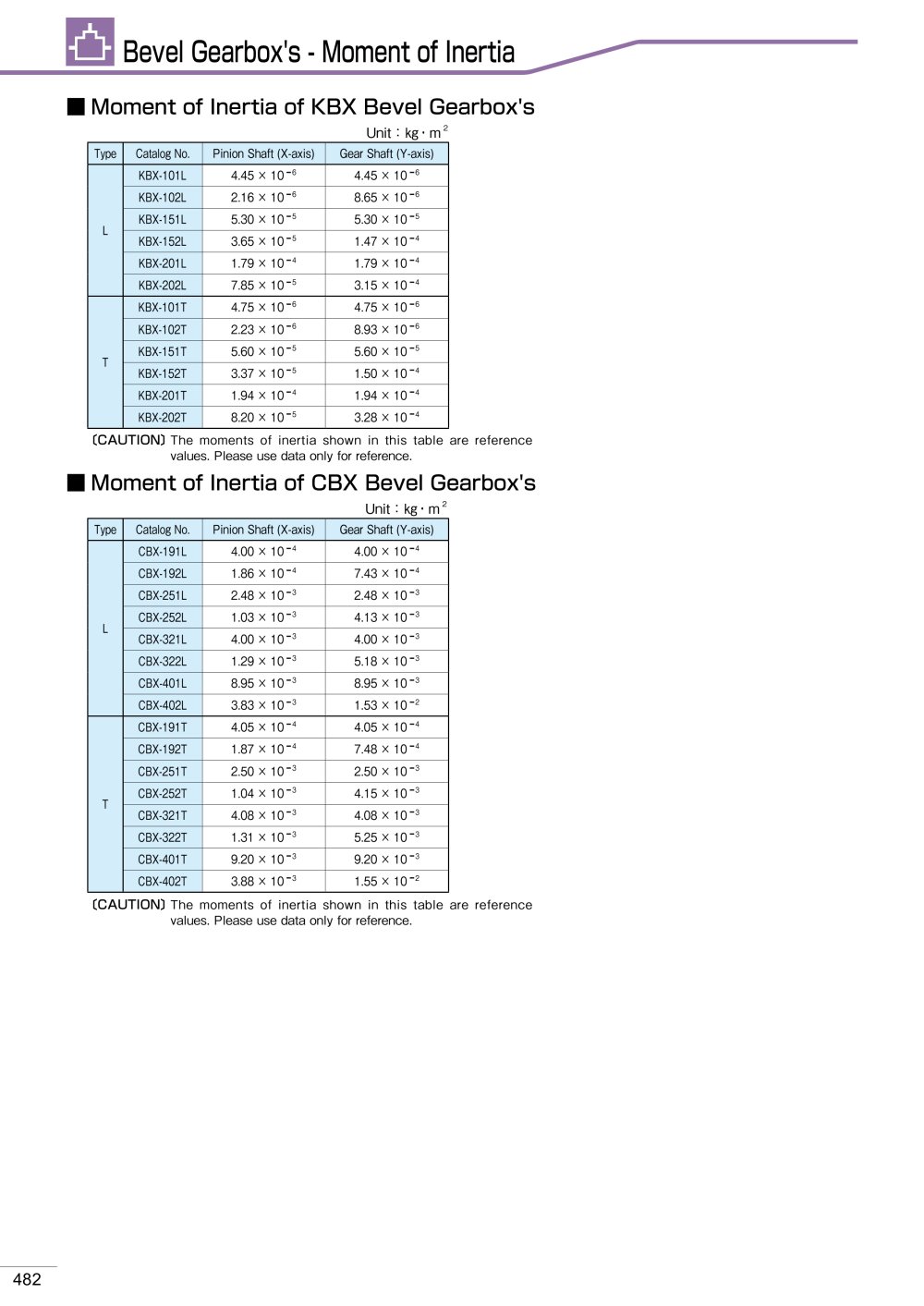

■ Moment of Inertia of KBX Bevel Gearbox's

_Unit:kg-m²


	Type	Catalog No.	Pinion Shaft (X-axis)	Gear Shaft (Y-axis)
		KBX-101L	4.45 x 10^-6	4.45 x 10^-6
		KBX-102L	2.16 x 10^-6	8.65 x 10^-6
	L	KBX-151L	5.30 x 10^-5	5.30 x 10^-5
	L	KBX-152L	3.65 x 10^-5	1.47 x 10^-4
		KBX-201L	1.79 x 10^-4	1.79 x 10^-4
		KBX-202L	7.85 x 10^-5	3.15 x 10^-4
		KBX-101T	4.75 x 10^-6	4.75 x 10^-6
		KBX-102T	2.23 x 10^-6	8.93 x 10^-6
	T	KBX-151T	5.60 x 10^-5	5.60 x 10^-5
	T	KBX-152T	3.37 x 10^-5	1.50 x 10^-4
		KBX-201T	1.94 x 10^-4	1.94 x 10^-4
		KBX-202T	8.20 x 10^-5	3.28 x 10^-4

(CAUTION] The moments of inertia shown in this table are reference values. Please use data only for reference.

■ Moment of Inertia of CBX Bevel Gearbox's

_Unit:kg-m²


	Type	Catalog No.	Pinion Shaft (X-axis)	Gear Shaft (Y-axis)
		CBX-191L	4.00 x 10^-4	4.00 x 10^-4
		CBX-192L	1.86 x 10^-4	7.43 x 10^-4
		CBX-251L	2.48 x 10^-3	2.48 x 10^-3
	L	CBX-252L	1.03 x 10^-3	4.13 x 10^-3
	L	CBX-321L	4.00 x 10^-3	4.00 x 10^-3
		CBX-322L	1.29 x 10^-3	5.18 x 10^-3
		CBX-401L	8.95 x 10^-3	8.95 x 10^-3
		CBX-402L	3.83 x 10^-3	1.53 x 10^-2
		CBX-191T	4.05 x 10^-4	4.05 x 10^-4
		CBX-192T	1.87 x 10^-4	7.48 x 10^-4
		CBX-251T	2.50 x 10^-3	2.50 x 10^-3
	T	CBX-252T	1.04 x 10^-3	4.15 x 10^-3
	T	CBX-321T	4.08 x 10^-3	4.08 x 10^-3
		CBX-322T	1.31 x 10^-3	5.25 x 10^-3
		CBX-401T	9.20 x 10^-3	9.20 x 10^-3
		CBX-402T	3.88 x 10^-3	1.55 x 10^-2

(CAUTION] The moments of inertia shown in this table are reference values. Please use data only for reference.
