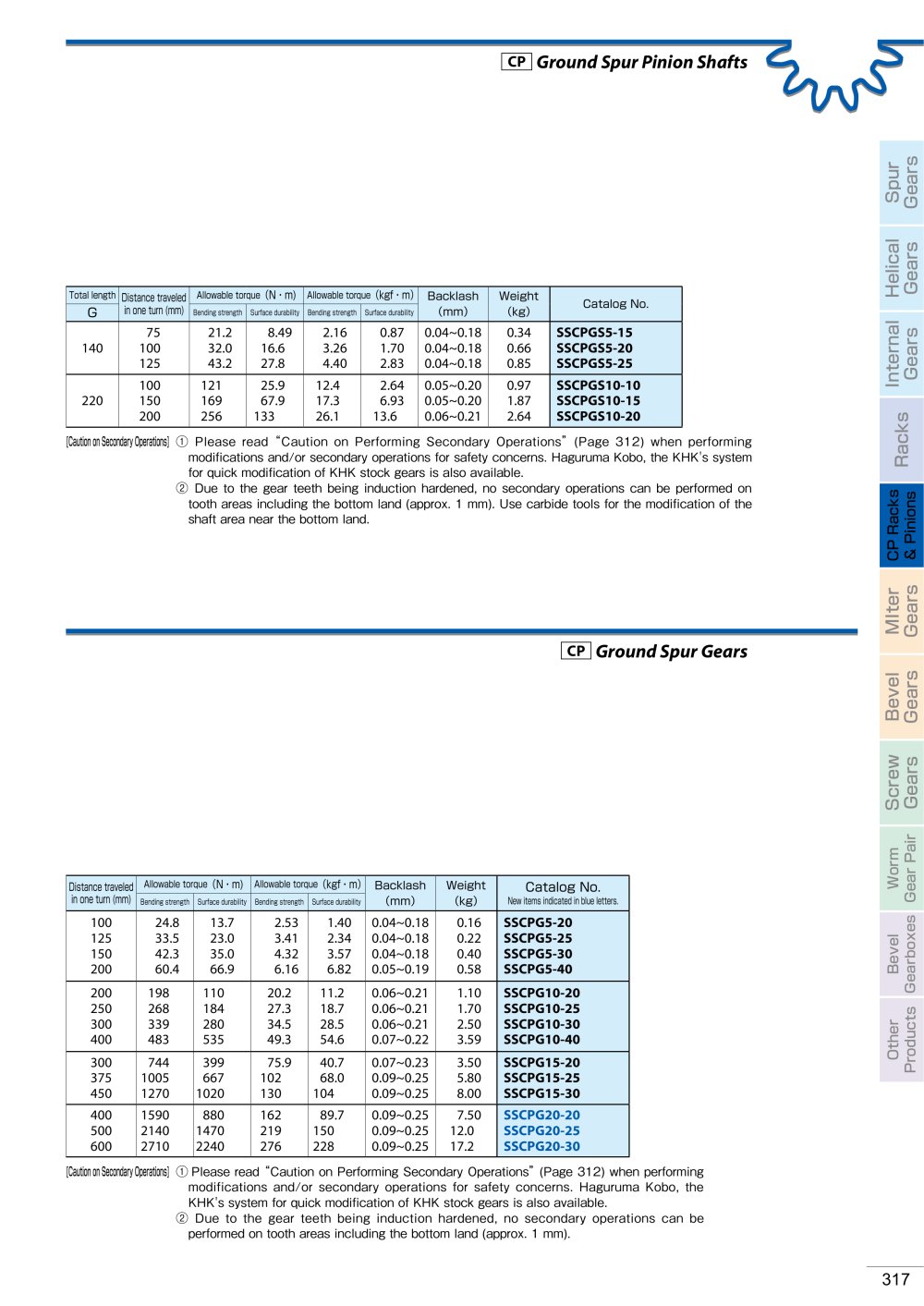

| | | cp I Ground Spur Pinion Shafts | | |
| | | |
| | | CO q "co ço .9 cd Id cd ICD 5 to £ CD çCD co o co oc J2 £ l_ c0 cd j= +J co - ^cd > co oûcd o cd CD CD Ë°- > co > cd cd co CD m co cd G co cl | | |
| | | | | | | | | | | | | | | | | Total length | Distance traveled | Allowable torque (N-m) | Allowable torque (kgf-m) | Backlash | Weight | Catalog No. | | | | G | in one turn (mm) | Bending strength | Surface durability | Bending strength | Surface durability | (mm) | (kg) | | | | 140 | 75 100 125 | 21.2 32.0 43.2 | 8.49 16.6 27.8 | 2.16 3.26 4.40 | 0.87 1.70 2.83 | 0.04~0.18 0.04~0.18 0.04~0.18 | 0.34 0.66 0.85 | SSCPGS5-15 SSCPGS5-20 SSCPGS5-25 | | | | 220 | 100 150 200 | 121 169 256 | 25.9 67.9 133 | 12.4 17.3 26.1 | 2.64 6.93 13.6 | 0.05~0.20 0.05~0.20 0.06~0.21 | 0.97 1.87 2.64 | SSCPGS10-10 SSCPGS10-15 SSCPGS10-20 | | | | | | | | | | | | | | | | |
| | | |
| | | [Cautionon Secondary Operations] © Please read "Caution on Performing Secondary Operations" (Page 312) when performing modifications and/or secondary operations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available. © Due to the gear teeth being induction hardened, no secondary operations can be performed on tooth areas including the bottom land (approx. 1 mm). Use carbide tools for the modification of the shaft area near the bottom land. | | |
| | | |
| | | I cp I Ground Spur Gears | | |
| | | |
| | | | | | | | | | | | | | | | Distance traveled | Allowable torque (N-m) | Allowable torque (kgf-m) | Backlash | Weight | Catalog No. | | | | in one turn (mm) | Bending strength | Surface durability | Bending strength | Surface durability | (mm) | (kg) | New items indicated in blue letters. | | | | 100 | 24.8 | 13.7 | 2.53 | 1.40 | 0.04~0.18 | 0.16 | SSCPG5-20 | | | | 125 | 33.5 | 23.0 | 3.41 | 2.34 | 0.04~0.18 | 0.22 | SSCPG5-25 | | | | 150 | 42.3 | 35.0 | 4.32 | 3.57 | 0.04~0.18 | 0.40 | SSCPG5-30 | | | | 200 | 60.4 | 66.9 | 6.16 | 6.82 | 0.05~0.19 | 0.58 | SSCPG5-40 | | | | 200 | 198 | 110 | 20.2 | 11.2 | 0.06~0.21 | 1.10 | SSCPG10-20 | | | | 250 | 268 | 184 | 27.3 | 18.7 | 0.06~0.21 | 1.70 | SSCPG10-25 | | | | 300 | 339 | 280 | 34.5 | 28.5 | 0.06~0.21 | 2.50 | SSCPG10-30 | | | | 400 | 483 | 535 | 49.3 | 54.6 | 0.07~0.22 | 3.59 | SSCPG10-40 | | | | 300 | 744 | 399 | 75.9 | 40.7 | 0.07~0.23 | 3.50 | SSCPG15-20 | | | | 375 | 1005 | 667 | 102 | 68.0 | 0.09~0.25 | 5.80 | SSCPG15-25 | | | | 450 | 1270 | 1020 | 130 | 104 | 0.09~0.25 | 8.00 | SSCPG15-30 | | | | 400 | 1590 | 880 | 162 | 89.7 | 0.09~0.25 | 7.50 | SSCPG20-20 | | | | 500 | 2140 | 1470 | 219 | 150 | 0.09~0.25 | 12.0 | SSCPG20-25 | | | | 600 | 2710 | 2240 | 276 | 228 | 0.09~0.25 | 17.2 | SSCPG20-30 | | | | | | | | | | | | | | | |
| | | |
| | | |
| | | [Cautionon Secondary Operations] © Please read "Caution on Performing Secondary Operations" (Page 312) when performing modifications and/or secondary operations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available. © Due to the gear teeth being induction hardened, no secondary operations can be performed on tooth areas including the bottom land (approx. 1 mm). | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | | | | | |
