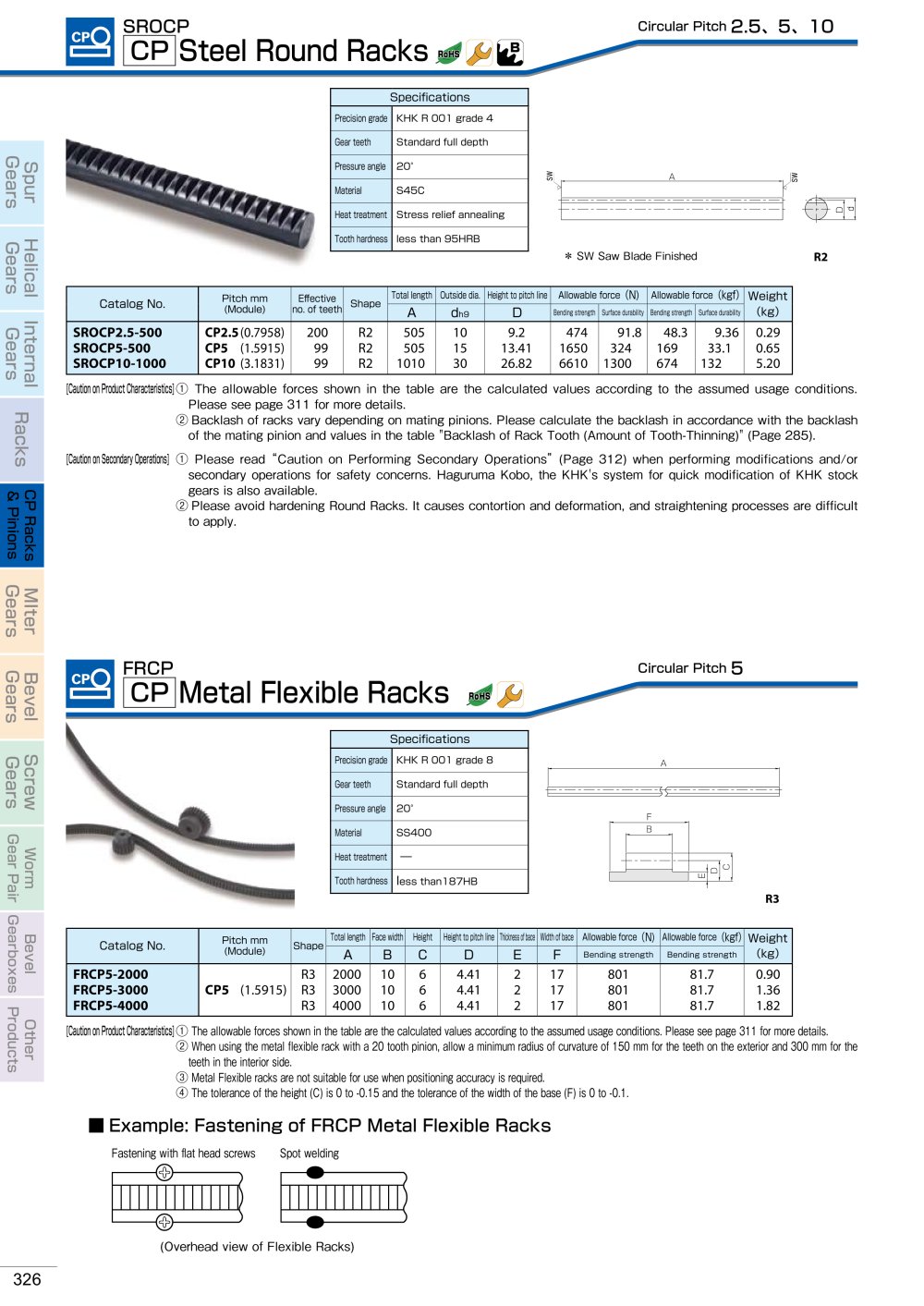

CP Steel Round Racks
Specifications
Precision grade
KHK R 001 grade 4
Gear teeth
Standard full depth
Pressure angle
20°
Material
S45C
Heat treatment
Stress relief annealing
Tooth hardness
less than 95HRB
e cd
CD p
co ^
r ?
co i
ae
s l
R
DJ O 7s CO
& O
g o
s s
CD 1
0 CD CO -i
QOD CD (D o <
S 1
QCD CD O
s
* SW Saw Blade Finished
r2
Catalog No.
Pitch mm (Module)
Effective no. of teeth
Shape
Total length
Outside dia.
Height to pitch line
Allowable force (N)
Allowable force (kgf)
Weight
(kg)
A
dh9
D
Bending strength
Surface durability
Bending strength
Surface durability
SROCP2.5-500
CP2.5 (0.7958)
200
R2
505
10
9.2
474
91.8
48.3
9.36
0.29
SROCP5-500
CP5 (1.5915)
99
R2
505
15
13.41
1650
324
169
33.1
0.65
SROCP10-1000
CP10 (3.1831)
99
R2
1010
30
26.82
6610
1300
674
132
5.20
[Cautionon Product Characteristics]© The allowable forces shown in the table are the calculated values according to the assumed usage conditions. Please see page 311 for more details. © Backlash of racks vary depending on mating pinions. Please calculate the backlash in accordance with the backlash of the mating pinion and values in the table "Backlash of Rack Tooth (Amount of Tooth-Thinning)" (Page 285).
[Cautionon Secondary Operations] © Please read "Caution on Performing Secondary Operations" (Page 312) when performing modifications and/or secondary operations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available.
© Please avoid hardening Round Racks. It causes contortion and deformation, and straightening processes are difficult to apply.
FRCP
Circular Pitch 5
CPjMetal Flexible Raoks —
Specifications
Precision grade
KHK R 001 grade 8
Gear teeth
Standard full depth
Pressure angle
20°
Material
SS400
Heat treatment
—
Tooth hardness
less than187HB
B
I
In"
Q cd dj —\
p i
O
3
r3
Q
cd
0) Do
x 1
cd co
p
d °
? O
co
Catalog No.
Pitch mm (Module)
Shape
Total length
Face width
Height
Height to pitch line
Thickness of bace
Width of bace
Allowable force (N)
Allowable force (kgf)
Weight
(kg)
A
B
C
D
E
F
Bending strength
Bending strength
FRCP5-2000 FRCP5-3000 FRCP5-4000
CP5 (1.5915)
R3
R3
R3
2000
3000
4000
10 10
10
6 6 6
4.41
4.41
4.41
2
2
2
17 17 17
801
801
801
81.7 81.7
81.7
0.90
1.36
1.82
[Caution on Product Characteristics] © The allowable forces shown in the table are the calculated values according to the assumed usage conditions. Please see page 311 for more details.
© When using the metal flexible rack with a 20 tooth pinion, allow a minimum radius of curvature of 150 mm for the teeth on the exterior and 300 mm for the
teeth in the interior side. © Metal Flexible racks are not suitable for use when positioning accuracy is required. © The tolerance of the height (C) is 0 to -0.15 and the tolerance of the width of the base (F) is 0 to -0.1.
■ Example: Fastening of FRCP Metal Flexible Racks
Fastening with flat head screws Spot welding
(Overhead view of Flexible Racks)
