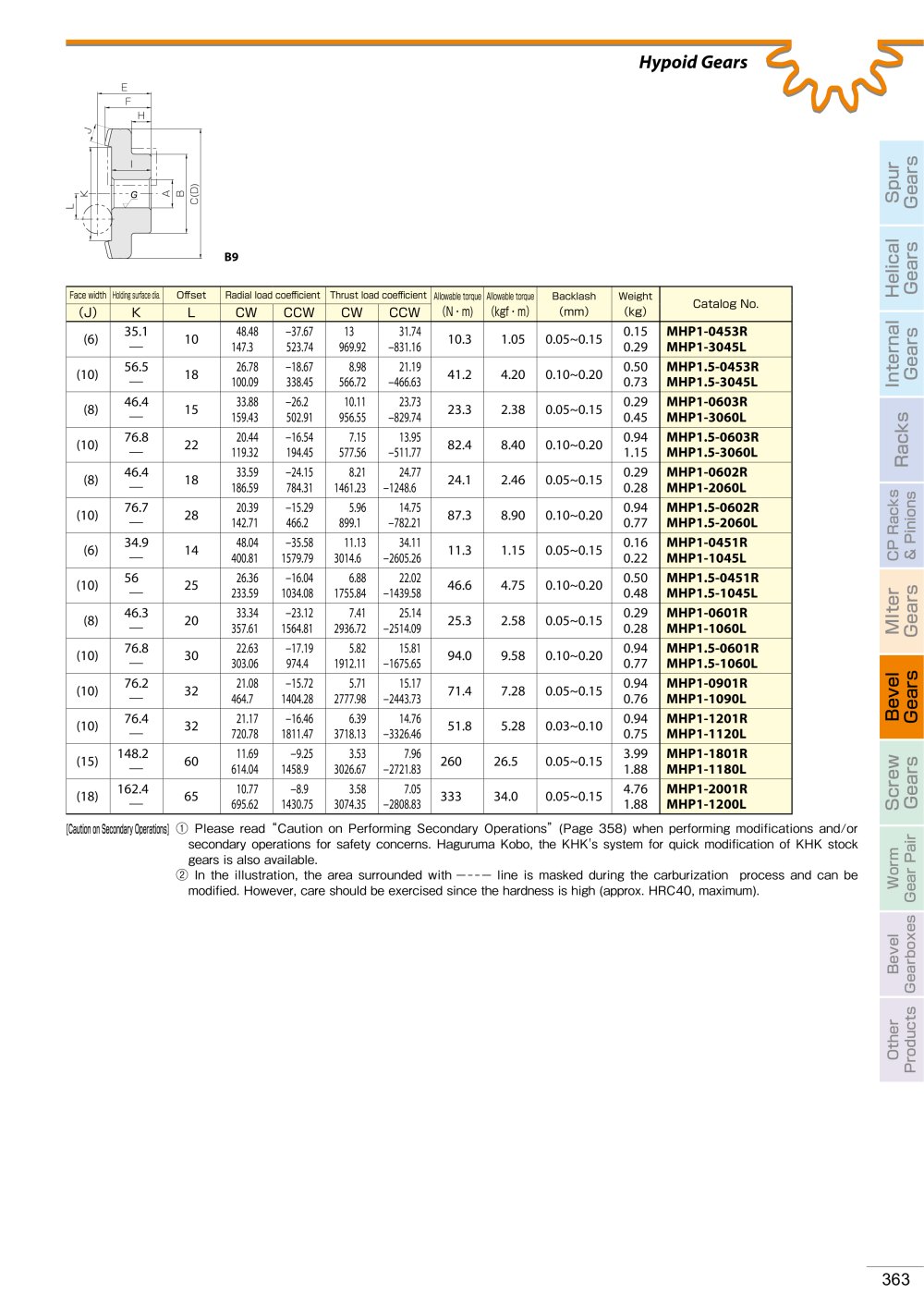

Hypoid Gears
as
CD (T)
"cö ÇO .9 Co
Id cd ICD
5 co
£ CD çCD
CO
o
CO
i_ CO CD J= +j CO
^CD
> co
CD CD DQCD
£ Co O CD CO CD
> CD
> CD
cd
CO CD
ê£
CD
cd
CO cl
____
J
■--G-
■- <
b9
Face width
Holding surface dia.
Offset
Radial load coefficient
Thrust load coefficient
Allowable torque
(N-m)
Allowable torque
(kgf-m)
Backlash (mm)
Weight (kg)
Catalog No.
(J)
K
L
CW
CCW
CW
CCW
(6)
35.1
10
48.48 147.3
-37.67 523.74
13
969.92
31.74 -831.16
10.3
1.05
0.05~0.15
0.15 0.29
MHP1-0453R MHP1-3045L
(10)
56.5
18
26.78 100.09
-18.67 338.45
8.98 566.72
21.19 -466.63
41.2
4.20
0.10~0.20
0.50 0.73
MHP1.5-0453R MHP1.5-3045L
(8)
46.4
15
33.88 159.43
-26.2 502.91
10.11 956.55
23.73 -829.74
23.3
2.38
0.05~0.15
0.29 0.45
MHP1-0603R MHP1-3060L
(10)
76.8
22
20.44 119.32
-16.54 194.45
7.15 577.56
13.95 -511.77
82.4
8.40
0.10~0.20
0.94 1.15
MHP1.5-0603R MHP1.5-3060L
(8)
46.4
18
33.59 186.59
-24.15 784.31
8.21 1461.23
24.77 -1248.6
24.1
2.46
0.05~0.15
0.29 0.28
MHP1-0602R MHP1-2060L
(10)
76.7
28
20.39 142.71
-15.29 466.2
5.96 899.1
14.75 -782.21
87.3
8.90
0.10~0.20
0.94 0.77
MHP1.5-0602R MHP1.5-2060L
(6)
34.9
14
48.04 400.81
-35.58 1579.79
11.13 3014.6
34.11 -2605.26
11.3
1.15
0.05~0.15
0.16 0.22
MHP1-0451R MHP1-1045L
(10)
56
25
26.36 233.59
-16.04 1034.08
6.88 1755.84
22.02 -1439.58
46.6
4.75
0.10~0.20
0.50 0.48
MHP1.5-0451R MHP1.5-1045L
(8)
46.3
20
33.34 357.61
-23.12 1564.81
7.41 2936.72
25.14 -2514.09
25.3
2.58
0.05~0.15
0.29 0.28
MHP1-0601R MHP1-1060L
(10)
76.8
30
22.63 303.06
-17.19 974.4
5.82 1912.11
15.81 -1675.65
94.0
9.58
0.10~0.20
0.94 0.77
MHP1.5-0601R MHP1.5-1060L
(10)
76.2
32
21.08 464.7
-15.72 1404.28
5.71 2777.98
15.17 -2443.73
71.4
7.28
0.05~0.15
0.94 0.76
MHP1-0901R MHP1-1090L
(10)
76.4
32
21.17 720.78
-16.46 1811.47
6.39 3718.13
14.76 -3326.46
51.8
5.28
0.03~0.10
0.94 0.75
MHP1-1201R MHP1-1120L
(15)
148.2
60
11.69 614.04
-9.25 1458.9
3.53 3026.67
7.96 -2721.83
260
26.5
0.05~0.15
3.99 1.88
MHP1-1801R MHP1-1180L
(18)
162.4
65
10.77 695.62
-8.9 1430.75
3.58 3074.35
7.05 -2808.83
333
34.0
0.05~0.15
4.76 1.88
MHP1-2001R MHP1-1200L
[Caution on Secondary Operations] © Please read "Caution on Performing Secondary Operations" (Page 358) when performing modifications and/or secondary operations for safety concerns. Haguruma Kobo, the KHK's system for quick modification of KHK stock gears is also available.
© In the illustration, the area surrounded with----line is masked during the carburization process and can be
modified. However, care should be exercised since the hardness is high (approx. HRC40, maximum).
