K
EPNER
P
RODUCTS
ESTABLISHED IN 1948C
OMPANY

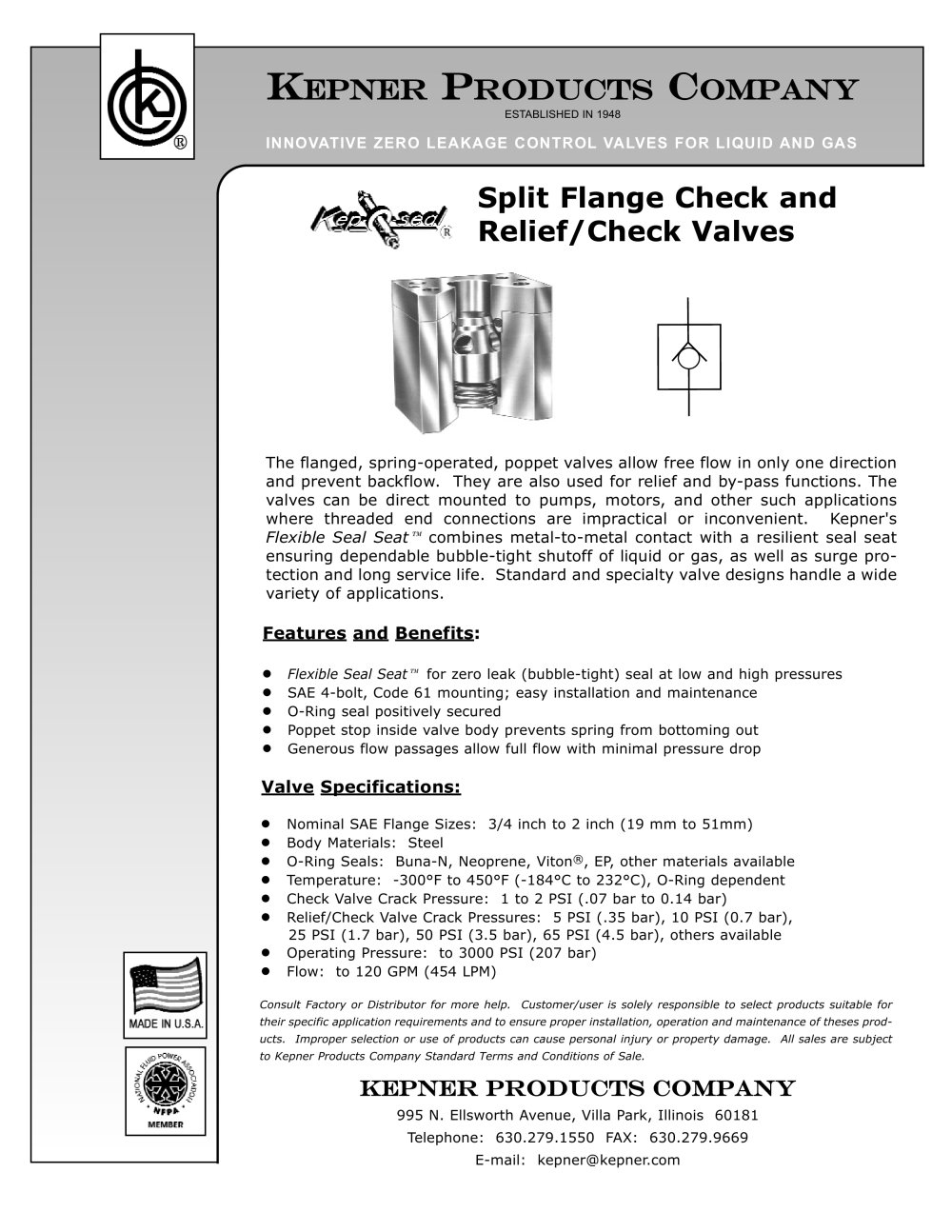

INNOVATIVE ZERO LEAKAGE CONTROLVALVES FOR LIQUID AND GASSplit Flange Check andRelief/Check Valves
Flexible Seal Seat The flanged, spring-operated, poppet valves allow free flow in only one direction and prevent backflow. They are also used for relief and by-pass functions. The valves can be direct mounted to pumps, motors, and other such applications where threaded end connections are impractical or inconvenient. Kepner's combines metal-to-metal contact with a resilient seal seatensuring dependable bubble-tight shutoff of liquid or gas, as well as surge pro- tection and long service life. Standard and specialty valve designs handle a wide variety of applications.Features and Benefits :
●Flexible Seal Seat for zero leak (bubble-tight) seal at low and high pressures ●
SAE 4-bolt, Code 61 mounting; easy installation and maintenance ●
O-Ring seal positively secured ●
Poppet stop inside valve body prevents spring from bottoming out ●
Generous flow passages allow full flow with minimal pressure drop
Valve Specifications:
●Nominal SAE Flange Sizes: 3/4 inch to 2 inch (19 mm to 51mm) ●
Body Materials: Steel ●
O-Ring Seals: Buna-N, Neoprene, Viton , EP, other materials available ●
Temperature: -300F to 450F (-184C to 232C), O-Ring dependent ●
Check Valve Crack Pressure: 1 to 2 PSI (.07 bar to 0.14 bar) ●
Relief/Check Valve Crack Pressures: 5 PSI (.35 bar), 10 PSI (0.7 bar), 25 PSI (1.7 bar), 50 PSI (3.5 bar), 65 PSI (4.5 bar), others available ●
Operating Pressure: to 3000 PSI (207 bar) ●
Flow: to 120 GPM (454 LPM) Consult Factory or Distributor for more help. Customer/user is solely responsible to select products suitable fortheir specific application requirements and to ensure proper installation, operation and maintenance of theses prod- ucts. Improper selection or use of products can cause personal injury or property damage. All sales are subject to Kepner Products Company Standard Terms and Conditions of Sale.
