K
EPNER
P
RODUCTS
ESTABLISHED IN 1948C
OMPANY
INNOVATIVE ZERO LEAKAGE CONTROLVALVES FOR LIQUID AND GAS

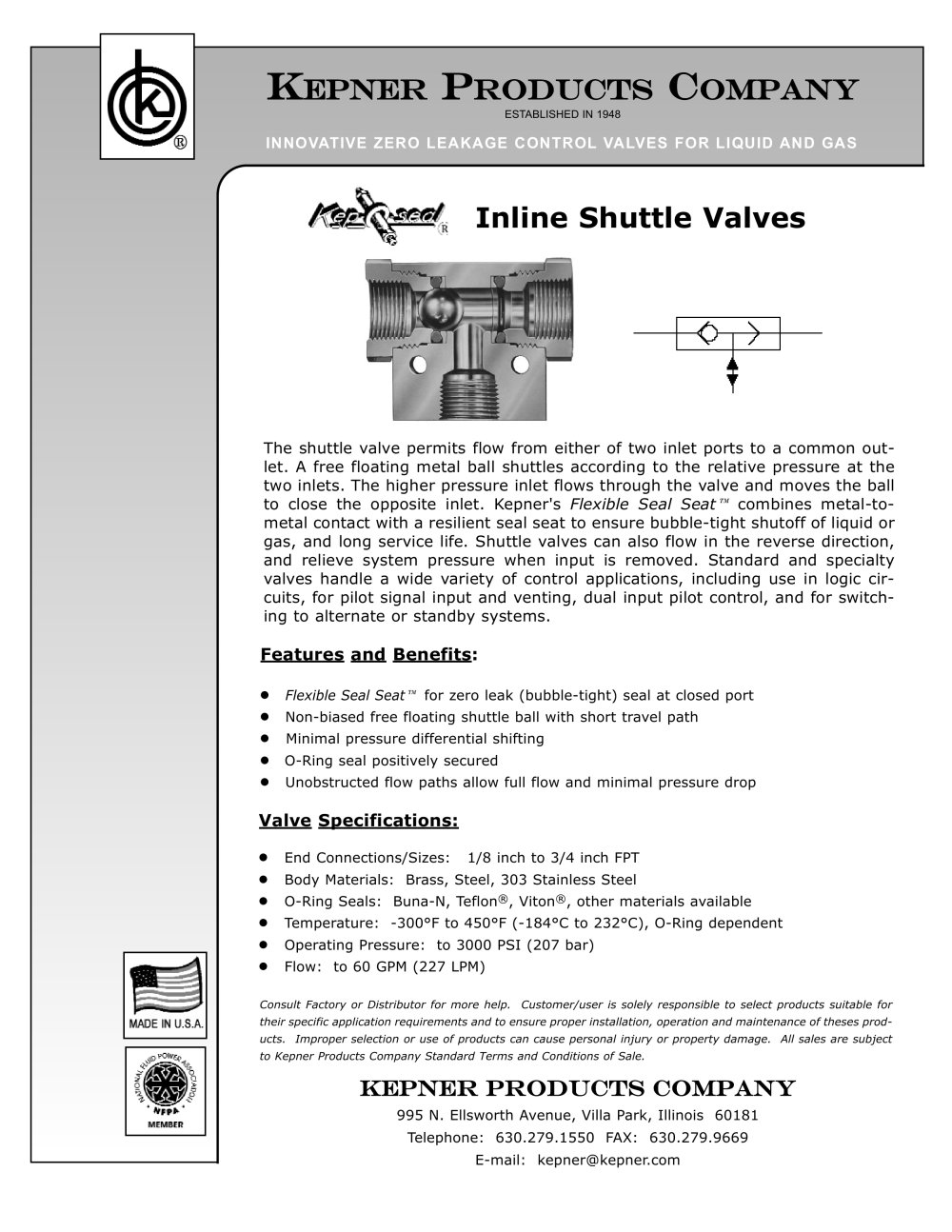

Inline Shuttle Valves
Flexible Seal Seat The shuttle valve permits flow from either of two inlet ports to a common out-let. A free floating metal ball shuttles according to the relative pressure at the two inlets. The higher pressure inlet flows through the valve and moves the ball to close the opposite inlet. Kepner's combines metal-to-metal contact with a resilient seal seat to ensure bubble-tight shutoff of liquid or gas, and long service life. Shuttle valves can also flow in the reverse direction, and relieve system pressure when input is removed. Standard and specialty valves handle a wide variety of control applications, including use in logic cir- cuits, for pilot signal input and venting, dual input pilot control, and for switch- ing to alternate or standby systems.
Features and Benefits :
●
Flexible Seal Seat for zero leak (bubble-tight) seal at closed port●
Non-biased free floating shuttle ball with short travel path●
Minimal pressure differential shifting●
O-Ring seal positively secured●
Unobstructed flow paths allow full flow and minimal pressure dropValve Specifications:
●
End Connections/Sizes: 1/8 inch to 3/4 inch FPT●
Body Materials: Brass, Steel, 303 Stainless Steel●
O-Ring Seals: Buna-N, Teflon, Viton
, other materials available
●
Temperature: -300F to 450F (-184C to 232C), O-Ring dependent●
Operating Pressure: to 3000 PSI (207 bar)●
Flow: to 60 GPM (227 LPM)Consult Factory or Distributor for more help. Customer/user is solely responsible to select products suitable fortheir specific application requirements and to ensure proper installation, operation and maintenance of theses prod- ucts. Improper selection or use of products can cause personal injury or property damage. All sales are subject to Kepner Products Company Standard Terms and Conditions of Sale.
