K
EPNER
P
RODUCTS
ESTABLISHED IN 1948C
OMPANY

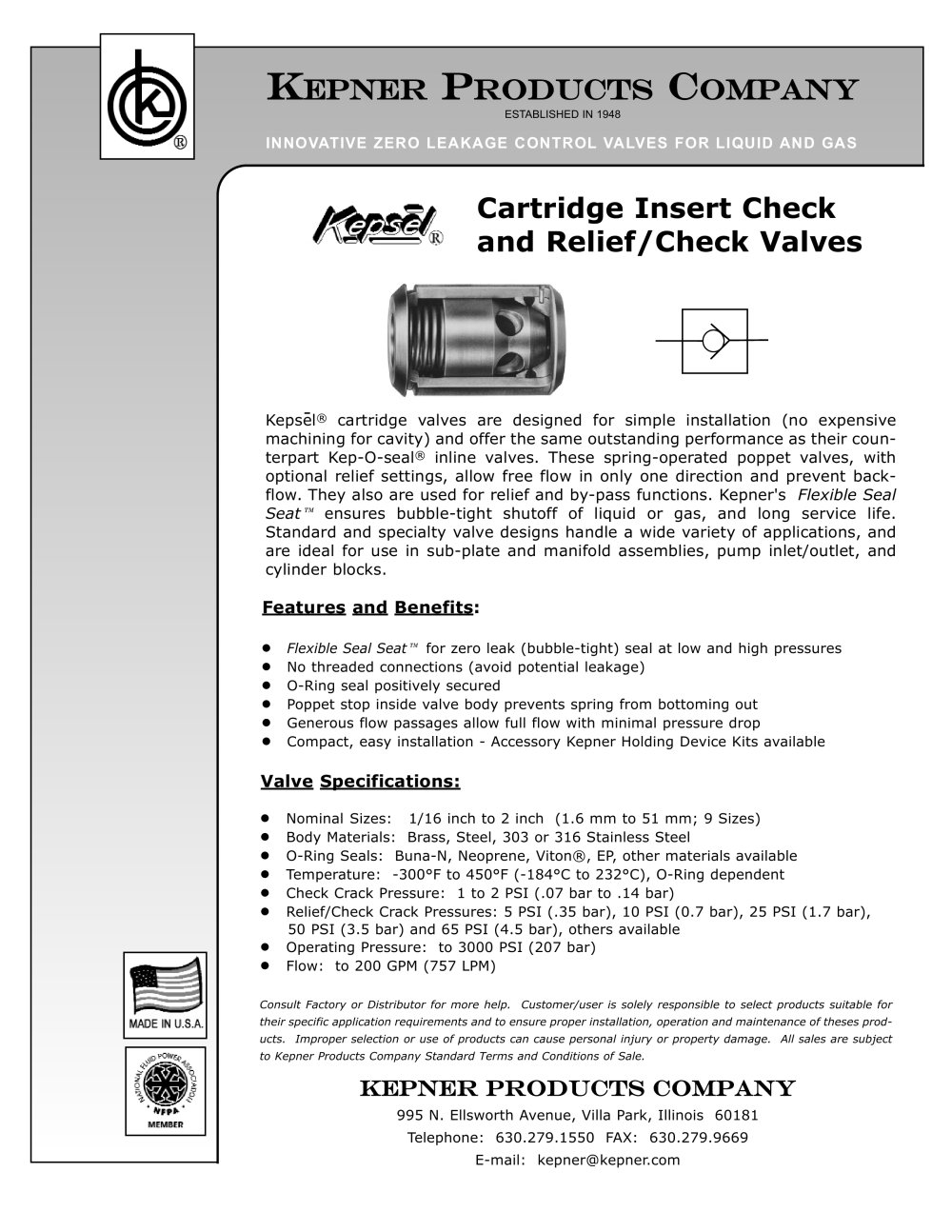

INNOVATIVE ZERO LEAKAGE CONTROLVALVES FOR LIQUID AND GASCartridge Insert Checkand Relief/Check Valves
Kepselcartridge valves are designed for simple installation (no expensivemachining for cavity) and offer the same outstanding performance as their coun-terpart Kep-O-seal
inline valves. These spring-operated poppet valves, withoptional relief settings, allow free flow in only one direction and prevent back- flow. They also are used for relief and by-pass functions. Kepner's Flexible SealSeat ensures bubble-tight shutoff of liquid or gas, and long service life.Standard and specialty valve designs handle a wide variety of applications, and are ideal for use in sub-plate and manifold assemblies, pump inlet/outlet, and cylinder blocks.
Features and Benefits :
●Flexible Seal Seat for zero leak (bubble-tight) seal at low and high pressures ●
No threaded connections (avoid potential leakage) ●
O-Ring seal positively secured ●
Poppet stop inside valve body prevents spring from bottoming out ●
Generous flow passages allow full flow with minimal pressure drop ●
Compact, easy installation - Accessory Kepner Holding Device Kits available
Valve Specifications:
●NominalSizes: 1/16 inch to 2 inch (1.6 mm to 51 mm; 9 Sizes) ●
Body Materials: Brass, Steel, 303 or 316 Stainless Steel ●
O-Ring Seals: Buna-N, Neoprene, Viton, EP, other materials available ●
Temperature: -300F to 450F (-184C to 232C), O-Ring dependent ●
Check Crack Pressure: 1 to 2 PSI (.07 bar to .14 bar) ●
Relief/Check Crack Pressures: 5 PSI (.35 bar), 10 PSI (0.7 bar), 25 PSI (1.7 bar), 50 PSI (3.5 bar) and 65 PSI (4.5 bar), others available ●
Operating Pressure: to 3000 PSI (207 bar) ●
Flow: to 200 GPM (757 LPM) Consult Factory or Distributor for more help. Customer/user is solely responsible to select products suitable fortheir specific application requirements and to ensure proper installation, operation and maintenance of theses prod- ucts. Improper selection or use of products can cause personal injury or property damage. All sales are subject to Kepner Products Company Standard Terms and Conditions of Sale.
