K
EPNER
P
RODUCTS
ESTABLISHED IN 1948C
OMPANY

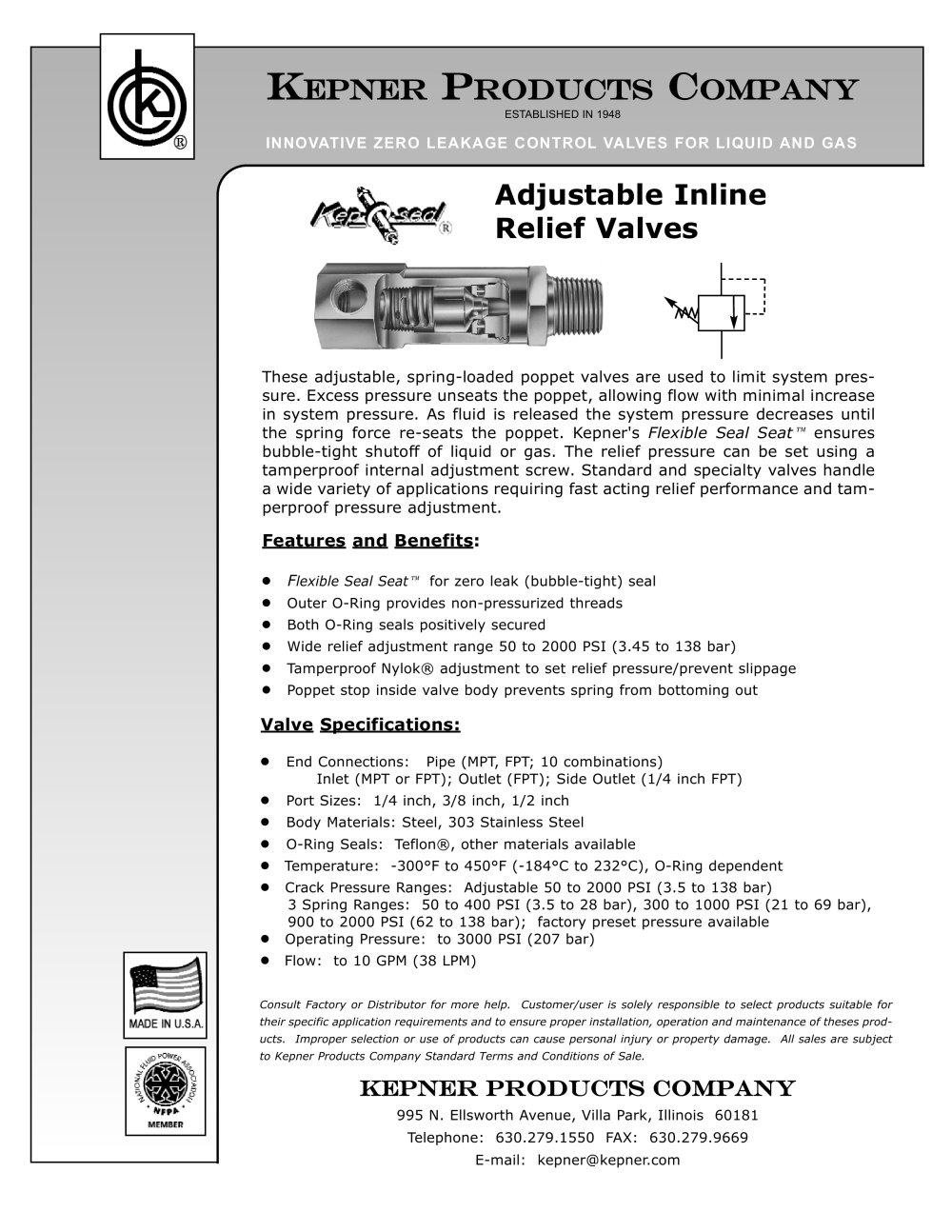

INNOVATIVE ZERO LEAKAGE CONTROLVALVES FOR LIQUID AND GASAdjustable InlineRelief Valves
Flexible Seal Seat These adjustable, spring-loaded poppet valves are used to limit system pres- sure. Excess pressure unseats the poppet, allowing flow with minimal increase in system pressure. As fluid is released the system pressure decreases until the spring force re-seats the poppet. Kepner's ensuresbubble-tight shutoff of liquid or gas. The relief pressure can be set using a tamperproof internal adjustment screw. Standard and specialty valves handle a wide variety of applications requiring fast acting relief performance and tam- perproof pressure adjustment.Features and Benefits :
● Flexible Seal Seat for zero leak (bubble-tight) seal ●
Outer O-Ring provides non-pressurized threads ●
Both O-Ring seals positively secured ●
Wide relief adjustment range 50 to 2000 PSI (3.45 to 138 bar) ●
Tamperproof Nylok adjustment to set relief pressure/prevent slippage ●
Poppet stop inside valve body prevents spring from bottoming out
Valve Specifications:
●End Connections: Pipe (MPT, FPT; 10 combinations)Inlet (MPT or FPT); Outlet (FPT); Side Outlet (1/4 inch FPT) ●
Port Sizes: 1/4 inch, 3/8 inch, 1/2 inch ●
Body Materials: Steel, 303 Stainless Steel ●
O-Ring Seals: Teflon, other materials available ●
Temperature: -300F to 450F (-184C to 232C), O-Ring dependent ●
Crack Pressure Ranges: Adjustable 50 to 2000 PSI (3.5 to 138 bar)3 Spring Ranges: 50 to 400 PSI (3.5 to 28 bar), 300 to 1000 PSI (21 to 69 bar), 900 to 2000 PSI (62 to 138 bar); factory preset pressure available ●
Operating Pressure: to 3000 PSI (207 bar) ●
Flow: to 10 GPM (38 LPM) Consult Factory or Distributor for more help. Customer/user is solely responsible to select products suitable fortheir specific application requirements and to ensure proper installation, operation and maintenance of theses prod- ucts. Improper selection or use of products can cause personal injury or property damage. All sales are subject to Kepner Products Company Standard Terms and Conditions of Sale.
