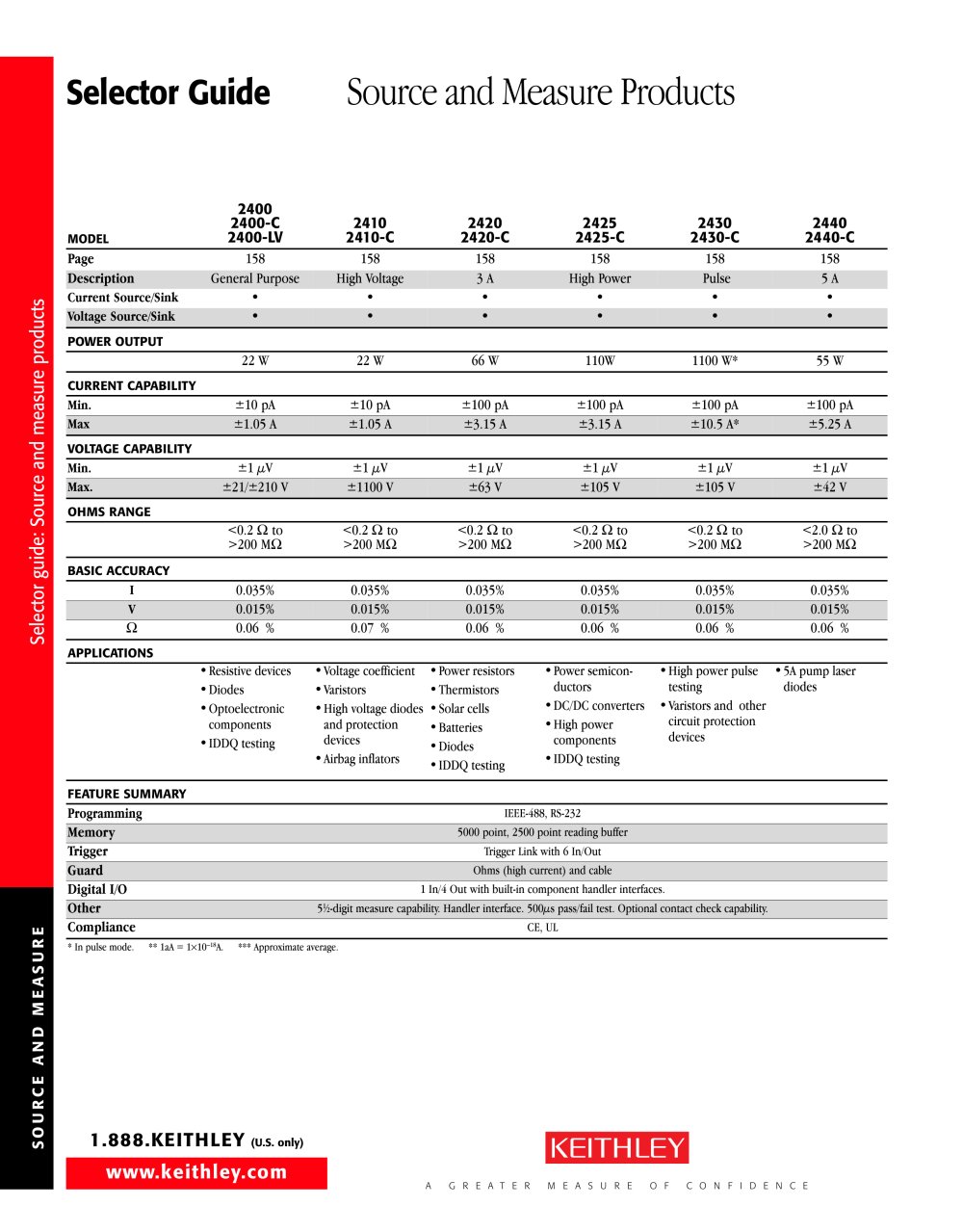

Selector Guide

Selector Guide Source and Measure Products - 1438 Sourceand Measure Products

24002400-C2400-LV 24102410-C 24202420-C 24252425-C 24302430-C 24402440-C

MODEL Page 158 158 158 158 158 158 Description General Purpose High Voltage 3A High Power Pulse 5A
Current Source/Sink • • • • • •
Voltage Source/Sink • • • • • •
POWER OUTPUT 22 W 22 W 66 W 110W 1100 W* 55 W
CURRENT CAPABILITY Min. ±10 pA ±10 pA ±100 pA ±100 pA ±100 pA ±100 pA
Max ±1.05 A ±1.05 A ±3.15 A ±3.15 A ±10.5 A* ±5.25 A
VOLTAGE CAPABILITY Min. ±1µV ±1µV ±1µV ±1µV ±1µV ±1µV
Max. ±21/±210 V ±1100 V ±63 V ±105 V ±105 V ±42 V
OHMS RANGE <0.2 Ω to >200 M <0.2 Ω to >200 M <0.2 Ω to >200 M <0.2 Ω to >200 M <0.2 Ω to >200 M <2.0 Ω to >200 M Ω Ω Ω Ω Ω Ω
BASIC ACCURACY I 0.035% 0.035% 0.035% 0.035% 0.035% 0.035%
V 0.015% 0.015% 0.015% 0.015% 0.015% 0.015% Ω 0.06% 0.07% 0.06% 0.06% 0.06% 0.06%
Selectorguide:Sourceandmeasureproducts APPLICATIONS •Resistive devices•Diodes •Optoelectroniccomponents•IDDQ testing •Voltage coefficient •Varistors •High voltage diodesand protection devices•Airbag inflators •Power resistors •Thermistors •Solar cells •Batteries •Diodes •IDDQ testing •Power semicon-ductors•DC/DC converters •High powercomponents•IDDQ testing •High power pulsetesting•Varistors and othercircuit protection devices •5A pump laserdiodes FEATURE SUMMARY Programming
IEEE-488, RS-232 Memory
5000 point, 2500 point reading buffer Trigger
Trigger Link with 6 In/Out Guard
Ohms (high current) and cable Digital I/O
1In/4 Out with built-in component handler interfaces. Other
5 1 â�„ 2 -digit measure capability. Handler interface. 500µs pass/fail test. Optional contact check capability. Compliance
CE, UL *In pulse mode.** 1aA = 1 × 10 –18 A.*** Approximate average. SOURCEANDMEASURE
