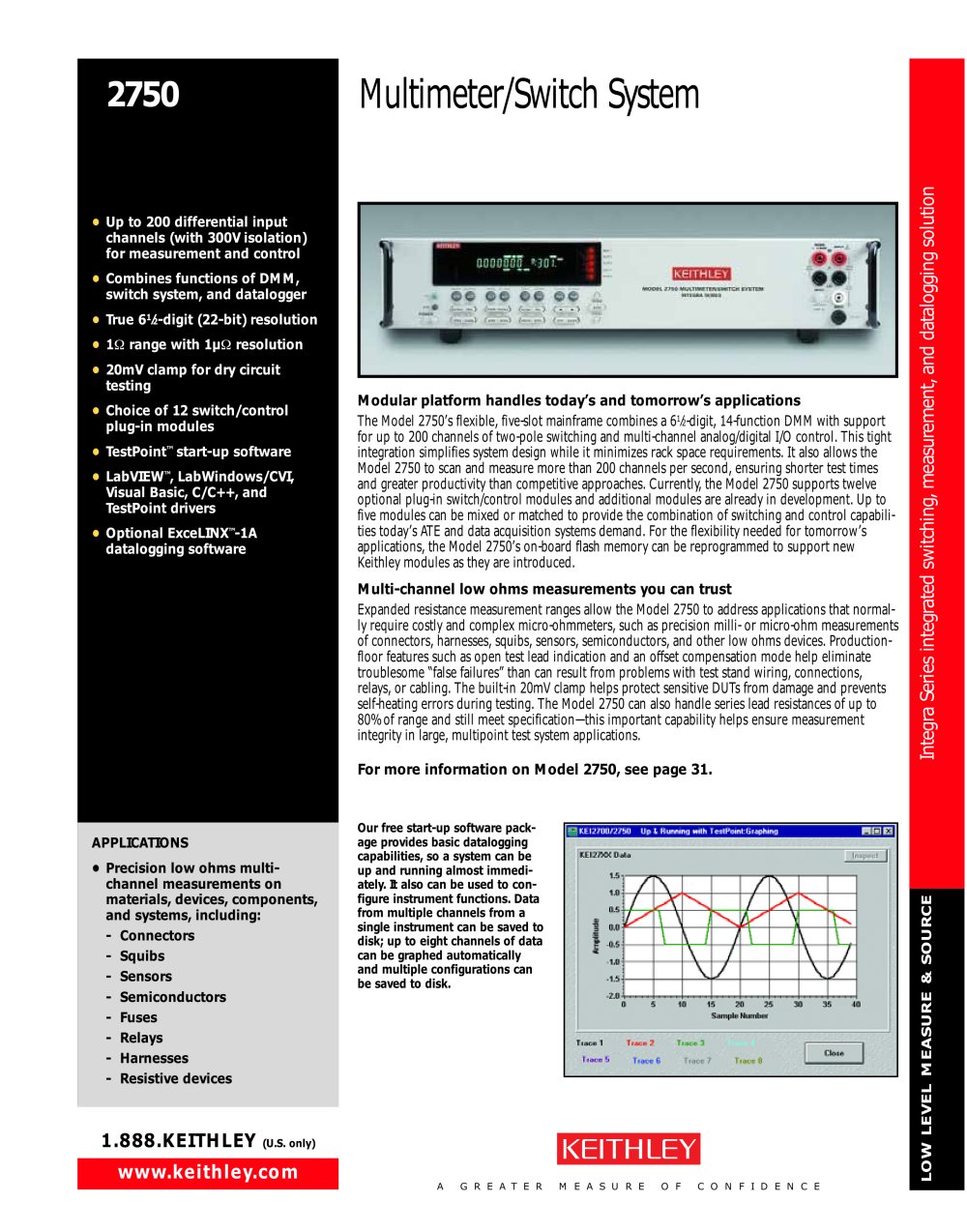

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:18.00pt "Arial", sans-serif; } .font5 { font:21.00pt "Arial", sans-serif; } .font6 { font:10.00pt "Arial Black", sans-serif; } .font7 { font:5.00pt "Georgia", serif; } .font8 { font:7.00pt "Georgia", serif; } .font9 { font:10.00pt "Microsoft Sans Serif", sans-serif; } .font10 { font:14.00pt "Tahoma", sans-serif; } Muitimeter/Switch System 2750 _I o o Up to 200 differential input channels (with 300V isolation) for measurement and control Օ Combines functions of DMM, switch system, and datalogger True 6^-digit (22-bit) resolution Օ 1Q range with 1pQ resolution 20mV clamp for dry circuit testing Օ Choice of 12 switch/control plug-in modules TestPointՙ start-up software LabVIEWՙ, LabWindows/CVI, Visual Basic, C/C++, and TestPoint drivers Optional ExceLINXՙ-1A datalogging software _ O ■o T3 Modular platform handles today's and tomorrow's applications The Model 2750's flexible, five-slot mainframe combines a 6^/2-digit, 14-function DMM with support for up to 200 channels of two-pole switching and multi-channel analog/digital I/O control. This tight integration simplifies system design while it minimizes rack space requirements. It also allows the Model 2750 to scan and measure more than 200 channels per second, ensuring shorter test times and greater productivity than competitive approaches. Currently, the Model 2750 supports twelve optional plug-in switch/control modules and additional modules are already in development. Up to five modules can be mixed or matched to provide the combination of switching and control capabili-ties today's ATE and data acquisition systems demand. For the flexibility needed for tomorrow's applications, the Model 2750's on-board flash memory can be reprogrammed to support new Keithley modules as they are introduced. Multi-channel low ohms measurements you can trust Expanded resistance measurement ranges allow the Model 2750 to address applications that normal-ly require costly and complex micro-ohmmeters, such as precision milli- or micro-ohm measurements of connectors, harnesses, squibs, sensors, semiconductors, and other low ohms devices. Production-floor features such as open test lead indication and an offset compensation mode help eliminate troublesome "false failures" than can result from problems with test stand wiring, connections, relays, or cabling. The built-in 20mV clamp helps protect sensitive DUTs from damage and prevents self-heating errors during testing. The Model 2750 can also handle series lead resistances of up to 80% of range and still meet specificationthis important capability helps ensure measurement integrity in large, multipoint test system applications. For more information on Model 2750, see page 31. T3 '1痗 eu Our free start-up software package provides basic datalogging capabilities, so a system can be up and running almost immedi-ately. It also can be used to conͭfigure instrument functions. Data from multiple channels from a single instrument can be saved to disk; up to eight channels of data can be graphed automatically and multiple configurations can be saved to disk. LU O a => o 03 lu a => < lu _l lu > lu _l 1.888.KEITHLEY (u.s. only) O www.keithley.com A GREATER MEASURE OF CONFIDENCE
