Catalogue excerpts

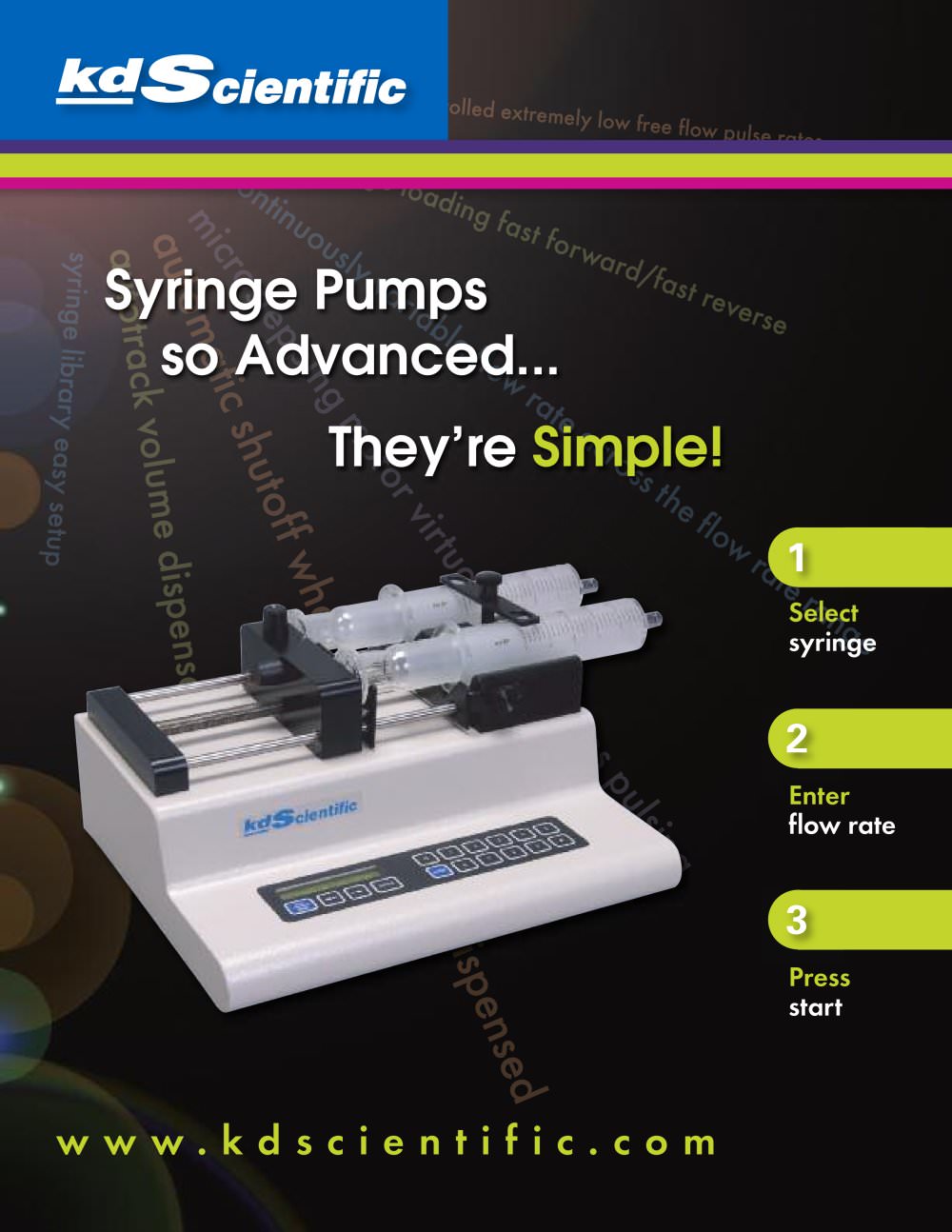

Enter flow rate Press start Syringe Pumps so Advanced... They’re Simple! Select syringe w w w . k d s c i e n t i f i c . c o m 2 3 1

 Open the catalogue to page 1

The KD Scientific Advantage KD Scientific pumps are acknowledged as the industry’s highest valued solution for delivering precise and smooth flow in research, pilot plants and production applications. KD Scientific is recognized worldwide for quality, accuracy and reliability at an economical price. KD Scientific has the broadest line of syringe pumps, from a basic one syringe infuse only pump, to an advanced programmable multi-syringe infuse/withdrawal pump. KD Scientific is committed to delivering the highest level of customer satisfaction, as well as technical support for all their products....

 Open the catalogue to page 2

w w w . k d s c i e n t i f i c . c o m phone 5 0 8 . 4 2 9 . 6 8 0 9 fax 5 0 8 . 8 9 3 . 0 1 6 0 1 Application Areas peer endorsed! ° MS Calibration ° Microfluidics/Microfluidic Channel Injections ° Surface Plasma Resonance ° Biotech Research and Development ° Drug Discovery ° Neuroscience ° Organic Synthesis ° Aerosol Injection/ Nebulization ° Agriculture ° Animal Drug/Nutrient Injections ° Automotive Research ° Cell Injections ° Chemical Development ° Pilot Plant Reactor Dosing ° Continuous Flow ° Dye Dilution ° Dye/Isotope Injection ° Electro-Spinning ° Emulsification ° Emulsion Polymerization...

 Open the catalogue to page 3

2 w w w . k d s c i e n t i f i c . c o m phone 5 0 8 . 4 2 9 . 6 8 0 9 fax 5 0 8 . 8 9 3 . 0 1 6 0 Infusion Pumps performance, reliability & value! KD scientific infusion pumps are ideal for delivering accurate and precise amounts of fluids for a multitude of applications, including injection of calibrant into a mass spectrometer or reaction chamber, long term drug delivery to animals and general infusion applications. Customers use the KDS 100/KDS 200 syringe pumps more than any other for their outstanding reliability and performance. The KDS 100 series pumps give customers the most cost effective...

 Open the catalogue to page 4

w w w . k d s c i e n t i f i c . c o m phone 5 0 8 . 4 2 9 . 6 8 0 9 fax 5 0 8 . 8 9 3 . 0 1 6 0 3 Infusion/Withdrawal Pumps most versatile KDS 230 Multi-Syringe Infusion/Withdrawal Pump Ideal for applications requiring multiple syringes, the KDS 230 is an adaptation of the KDS 210. The pump has been modified to hold up to 10 syringes. • Multiple syringe holder: – One to ten syringes, 10 ìl to 10ml – One to six syringes, 20ml to 60ml – One to four syringes, 100 ml to 140 ml • Multiple mode selection: – Infusion,Withdrawal, Infusion then withdrawal,Withdrawal then Infusion, Continuous Cycle Infuse...

 Open the catalogue to page 5

4 w w w . k d s c i e n t i f i c . c o m phone 5 0 8 . 4 2 9 . 6 8 0 9 fax 5 0 8 . 8 9 3 . 0 1 6 0 Push-Pull Pumps superior simultaneous infuse/withdraw These proven KDS pumps provide simultaneous infusion and withdrawal with opposing syringes on a single drive. The KDS 120 and KDS 260 are adaptations of the KDS 100 and KDS 210, respectively. Each has been modified to hold an additional syringe so that as one syringe infuses, the second syringe withdraws at the same rate. KDS 260 Four-Syringe Push-Pull Pump This KDS 260 pump provides simultaneous infusion and withdrawal with opposing syringes...

 Open the catalogue to page 6

5 Specialty Pumps customized formaximumperformance KDS 410 High Pressure Syringe Pump The KDS 410 is ideal for delivering fluid to reactors in chemical applications or for working with viscous fluids. The robust design ensures the syringe is kept level during delivery of the fluid. The KDS 410 more than doubles the linear force available in the KDS 200 series. • Single syringe 10 ìl to 140 ml • Minimum flow 0.001 ìl/hr with a 10 ìl syringe • > 100 lbs linear force w w w . k d s c i e n t i f i c . c o m phone 5 0 8 . 4 2 9 . 6 8 0 9 fax 5 0 8 . 8 9 3 . 0 1 6 0 KD Scientific specialty pumps are...

 Open the catalogue to page 7

6 NEW Customizable OEM Modules Pump customization is now easier with the new KDS OEM modules. Integrate these modules into your systems or work with our KDS engineering staff to design different syringe mechanisms or controllers. KDS offers the technology and engineering expertise to meet your demanding applications. The microliter and milliliter modules incorporate lead free design, ensuring full compliance with the Waste Electrical and Electronic Equipment (WEEE) and Restriction on the use of Hazardous Substances (RoHS) standards. The NEW KDS 900 Microliter and KDS 910 Milliliter syringe pump...

 Open the catalogue to page 8

w w w . k d s c i e n t i f i c . c o m phone 5 0 8 . 4 2 9 . 6 8 0 9 fax 5 0 8 . 8 9 3 . 0 1 6 0 7 maximum performance with minimal development Robust Motor RS232 Connection Secure Syringe Clamp Withdraw Bracket Prevents Plunger Withdrawal (limit switch) 12-30 VDC Power Stall Detection Optical Encoder Indicates End of Travel (limit switch) Power-On LED Digital I/O • Run Indicator • Run/Stop KDS 900 Shown (KDS 910 features are similiar) Commands Powerful programming features for advanced pump control: • Start or stop pump • Change pump direction–Infuse/Withdraw • Clear volume accumulator • Change...

 Open the catalogue to page 9

8 w w w . k d s c i e n t i f i c . c o m phone 5 0 8 . 4 2 9 . 6 8 0 9 fax 5 0 8 . 8 9 3 . 0 1 6 0 NEW Pump Systems for enhanced performance NEW KDS 100Y with Remote Operation A new version of the rugged KDS 100 can now be remotely triggered with a footswitch or external switch. Starting and stopping dispense or infusion can be automated or remotely activated. Also Available: 101Y, 120Y, 310Y The KDS 100 series has been modified with new hardware and software features for specific applications. Integrating multiple pumps in a system allows the individual pumps to interact with other ones. This...

 Open the catalogue to page 10

w w w . k d s c i e n t i f i c . c o m phone 5 0 8 . 4 2 9 . 6 8 0 9 fax 5 0 8 . 8 9 3 . 0 1 6 0 9 Expanded Capabilities easy to program 1. Time duration, from one second up to 12 hours 2. Travel direction – Infuse or withdraw (where available) 3. Beginning flow rate (ìl/hr to ml/min range) 4. End flow rate (ìl/hr to ml/min range) 5. Pause – Waits for an external trigger to start 6. Status of output TTL pins 7. Loop option – Loops back to any previous step and repeats the intermediate steps. Two separate loops available. 8. Set the count in the loop cycle. Steps may be repeated up to 100 times....
