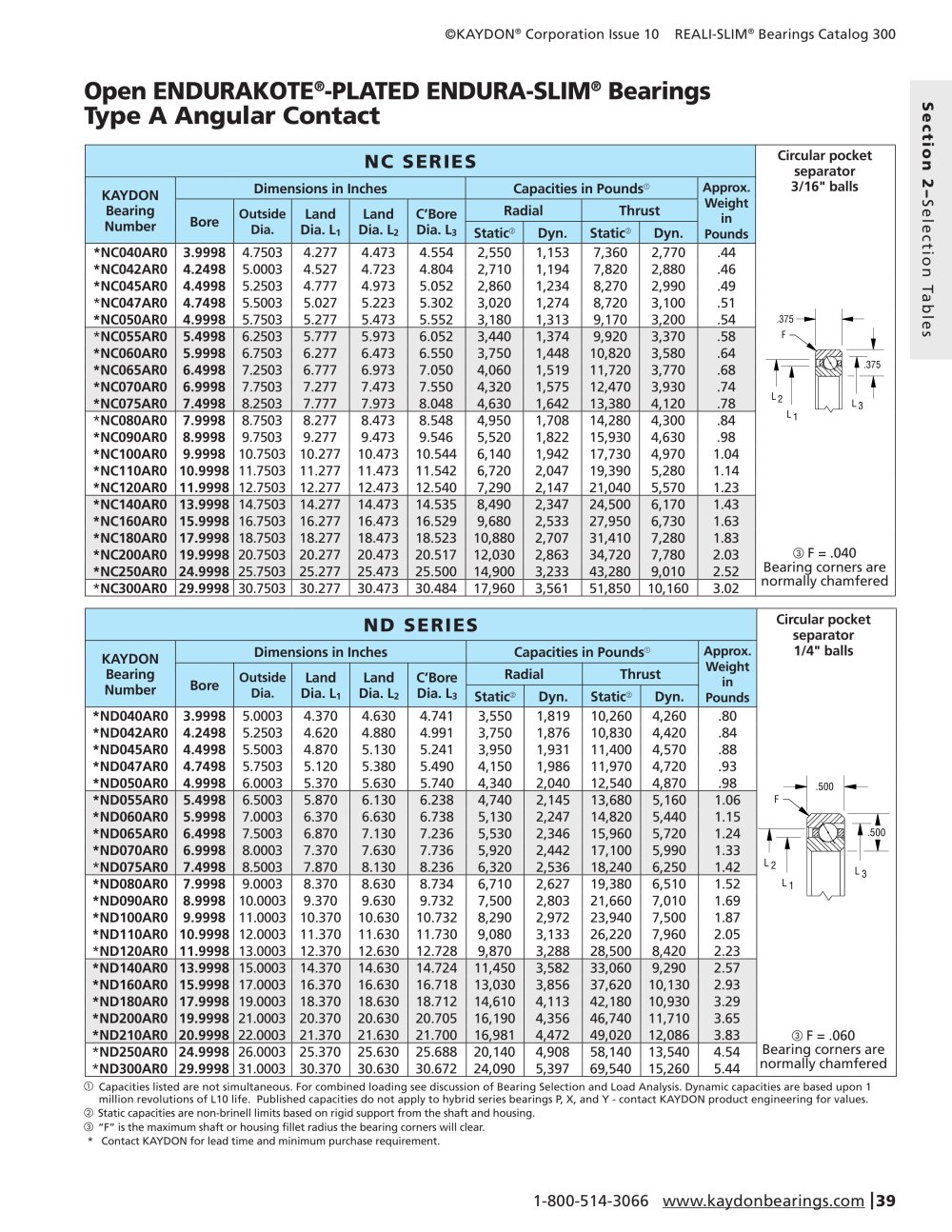

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | ©KAYDON® Corporation 2007 REALI-SLIM® Bearings Catalog 300 | | | | | | | | | | Open ENDURAKOTE'-PLATED ENDURA-SLIM® Bearings Type A Angular Contact | | | | | | (ft A A | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | NC SERIES | | | | KAYDON | Dimensions in Inches | Capacities in Pounds® | Weight in | | | | | Bore | Outside | Land | Land | C'Bore | Radial | Thrust | | | | Number | Dia. | Dia. L1 | Dia. L2 | Dia. L3 | Static® | Dyn. | Static® | Dyn. | Pounds | | | | NC040AR0 | 3.9998 | 4.7503 | 4.277 | 4.473 | 4.554 | 2,550 | 1,153 | 7,360 | 2,770 | .44 | | | | *NC042AR0 | 4.2498 | 5.0003 | 4.527 | 4.723 | 4.804 | 2,710 | 1,194 | 7,820 | 2,880 | .46 | | | | NC045AR0 | 4.4998 | 5.2503 | 4.777 | 4.973 | 5.052 | 2,860 | 1,234 | 8,270 | 2,990 | .49 | | | | NC047AR0 | 4.7498 | 5.5003 | 5.027 | 5.223 | 5.302 | 3,020 | 1,274 | 8,720 | 3,100 | .51 | | | | NC050AR0 | 4.9998 | 5.7503 | 5.277 | 5.473 | 5.552 | 3,180 | 1,313 | 9,170 | 3,200 | .54 | | | | NC055AR0 | 5.4998 | 6.2503 | 5.777 | 5.973 | 6.052 | 3,440 | ,1,374 | 9,920 | 3,370 | .58 | | | | NC060AR0 | 5.9998 | 6.7503 | 6.277 | 6.473 | 6.550 | 3,750 | 1,448 | 10,820 | 3,580 | .64 | | | | *NC065AR0 | 6.4998 | 7.2503 | 6.777 | 6.973 | 7.050 | 4,060 | 1,519 | 11,720 | 3,770 | .68 | | | | NC070AR0 | 6.9998 | 7.7503 | 7.277 | 7.473 | 7.550 | 4,320 | 1,575 | 12,470 | 3,930 | .74 | | | | *NC075AR0 | 7.4998 | 8.2503 | 7.777 | 7.973 | 8.048 | 4,630 | 1,642 | 13,380 | 4,120 | .78 | | | | NC080AR0 | 7.9998 | 8.7503 | 8.277 | 8.473 | 8.548 | 4,950 | 1,708 | 14,280 | 4,300 | .84 | | | | *NC090AR0 | 8.9998 | 9.7503 | 9.277 | 9.473 | 9.546 | 5,520 | 1,822 | 15,930 | 4,630 | .98 | | | | *NC100AR0 | 9.9998 | 10.7503 | 10.277 | 10.473 | 10.544 | 6,140 | 1,942 | 17,730 | 4,970 | 1.04 | | | | *NC110AR0 | 10.9998 | 11.7503 | 11.277 | 11.473 | 11.542 | 6,720 | 2,047 | 19,390 | 5,280 | 1.14 | | | | *NC120AR0 | 11.9998 | 12.7503 | 12.277 | 12.473 | 12.540 | 7,290 | 2,147 | 21,040 | 5,570 | 1.23 | | | | *NC140AR0 | 13.9998 | 14.7503 | 14.277 | 14.473 | 14.535 | 8,490 | 2,347 | 24,500 | 6,170 | 1.43 | | | | *NC160AR0 | 15.9998 | 16.7503 | 16.277 | 16.473 | 16.529 | 9,680 | 2,533 | 27,950 | 6,730 | 1.63 | | | | *NC180AR0 | 17.9998 | 18.7503 | 18.277 | 18.473 | 18.523 | 10,880 | 2,707 | 31,410 | 7,280 | 1.83 | | | | *NC200AR0 | 19.9998 | 20.7503 | 20.277 | 20.473 | 20.517 | 12,030 | 2,863 | 34,720 | 7,780 | 2.03 | | | | *NC250AR0 | 24.9998 | 25.7503 | 25.277 | 25.473 | 25.500 | 14,900 | 3,233 | 43,280 | 9,010 | 2.52 | | | | *NC300AR0 | 29.9998 | 30.7503 | 30.277 | 30.473 | 30.484 | 17,960 | 3,561 | 51,850 | 10,160 | 3.02 | | | | | | | | | | | | | | | | | | | | | | 5* | | | | | | Circular pocket separator 3/16" balls | | | | | | | | | | | | | | ■ GO n 5' 3 | | | | | | | | | | Q | | | | | | | | | | .375-F - | | | | | | | | | | WZZà _ | | | | | | | | | | .375 | | | | | | | | | | L2 | | | | | | L | | | | | | | 3 | | | | | | | | | | | | | | L1 | | | | | | | | | | © F = .040 Bearing corners are normally chamfered | | | | | | | | | | | | | | Circular pocket separator 1/4" balls | | | | | | ND SERIES | | | | | | | | | | | | | | | | | | | | | | | | | | KAYDON | Dimensions in Inches | Capacities in Pounds® | Weight in | | | | Bearing | Bore | Outside | Land | Land | C'Bore | Radial | Thrust | | | | Number | Dia. | Dia. L1 | Dia. L2 | Dia. L3 | Static® | Dyn. | Static® | Dyn. | Pounds | | | | ND040AR0 | 3.9998 | 5.0003 | 4.370 | 4.630 | 4.741 | 3,550 | 1,819 | 10,260 | 4,260 | .80 | | | | ND042AR0 | 4.2498 | 5.2503 | 4.620 | 4.880 | 4.991 | 3,750 | 1,876 | 10,830 | 4,420 | .84 | | | | ND045AR0 | 4.4998 | 5.5003 | 4.870 | 5.130 | 5.241 | 3,950 | 1,931 | 11,400 | 4,570 | .88 | | | | ND047AR0 | 4.7498 | 5.7503 | 5.120 | 5.380 | 5.490 | 4,150 | 1,986 | 11,970 | 4,720 | .93 | | | | ND050AR0 | 4.9998 | 6.0003 | 5.370 | 5.630 | 5.740 | 4,340 | 2,040 | 12,540 | 4,870 | .98 | | | | ND055AR0 | 5.4998 | 6.5003 | 5.870 | 6.130 | 6.238 | 4,740 | 2,145 | 13,680 | 5,160 | 1.06 | | | | ND060AR0 | 5.9998 | 7.0003 | 6.370 | 6.630 | 6.738 | 5,130 | 2,247 | 14,820 | 5,440 | 1.15 | | | | ND065AR0 | 6.4998 | 7.5003 | 6.870 | 7.130 | 7.236 | 5,530 | 2,346 | 15,960 | 5,720 | 1.24 | | | | ND070AR0 | 6.9998 | 8.0003 | 7.370 | 7.630 | 7.736 | 5,920 | 2,442 | 17,100 | 5,990 | 1.33 | | | | ND075AR0 | 7.4998 | 8.5003 | 7.870 | 8.130 | 8.236 | 6,320 | 2,536 | 18,240 | 6,250 | 1.42 | | | | ND080AR0 | 7.9998 | 9.0003 | 8.370 | 8.630 | 8.734 | 6,710 | 2,627 | 19,380 | 6,510 | 1.52 | | | | ND090AR0 | 8.9998 | 10.0003 | 9.370 | 9.630 | 9.732 | 7,500 | 2,803 | 21,660 | 7,010 | 1.69 | | | | *ND100AR0 | 9.9998 | 11.0003 | 10.370 | 10.630 | 10.732 | 8,290 | 2,972 | 23,940 | 7,500 | 1.87 | | | | *ND110AR0 | 10.9998 | 12.0003 | 11.370 | 11.630 | 11.730 | 9,080 | 3,133 | 26,220 | 7,960 | 2.05 | | | | ND120AR0 | 11.9998 | 13.0003 | 12.370 | 12.630 | 12.728 | 9,870 | 3,288 | 28,500 | 8,420 | 2.23 | | | | *ND140AR0 | 13.9998 | 15.0003 | 14.370 | 14.630 | 14.724 | 11,450 | 3,582 | 33,060 | 9,290 | 2.57 | | | | *ND160AR0 | 15.9998 | 17.0003 | 16.370 | 16.630 | 16.718 | 13,030 | 3,856 | 37,620 | 10,130 | 2.93 | | | | *ND180AR0 | 17.9998 | 19.0003 | 18.370 | 18.630 | 18.712 | 14,610 | 4,113 | 42,180 | 10,930 | 3.29 | | | | *ND200AR0 | 19.9998 | 21.0003 | 20.370 | 20.630 | 20.705 | 16,190 | 4,356 | 46,740 | 11,710 | 3.65 | | | | *ND210AR0 | 20.9998 | 22.0003 | 21.370 | 21.630 | 21.700 | 16,981 | 4,472 | 49,020 | 12,086 | 3.83 | | | | *ND250AR0 | 24.9998 | 26.0003 | 25.370 | 25.630 | 25.688 | 20,140 | 4,908 | 58,140 | 13,540 | 4.54 | | | | *ND300AR0 | 29.9998 | 31.0003 | 30.370 | 30.630 | 30.672 | 24,090 | 5,397 | 69,540 | 15,260 | 5.44 | | | | | | | | | | | | | | | | | | | | | | | | | | © F = .060 Bearing corners are normally chamfered | | | | | | | | | | | | | | © Capacities listed are not simultaneous. For combined loading see discussion of Bearing Selection and Load Analysis. Dynamic capacities are based upon 1 million revolutions of L10 life. Published capacities do not apply to hybrid series bearings P, X, and Y - contact KAYDON product engineering for values. © Static capacities are non-brinell limits based on rigid support from the shaft and housing. © "F" is the maximum shaft or housing fillet radius the bearing corners will clear. * Contact KAYDON for lead time and minimum purchase requirement. | | | | | | | | | | 1-800-514-3066 www.kaydonbearinqs.com I 39 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
