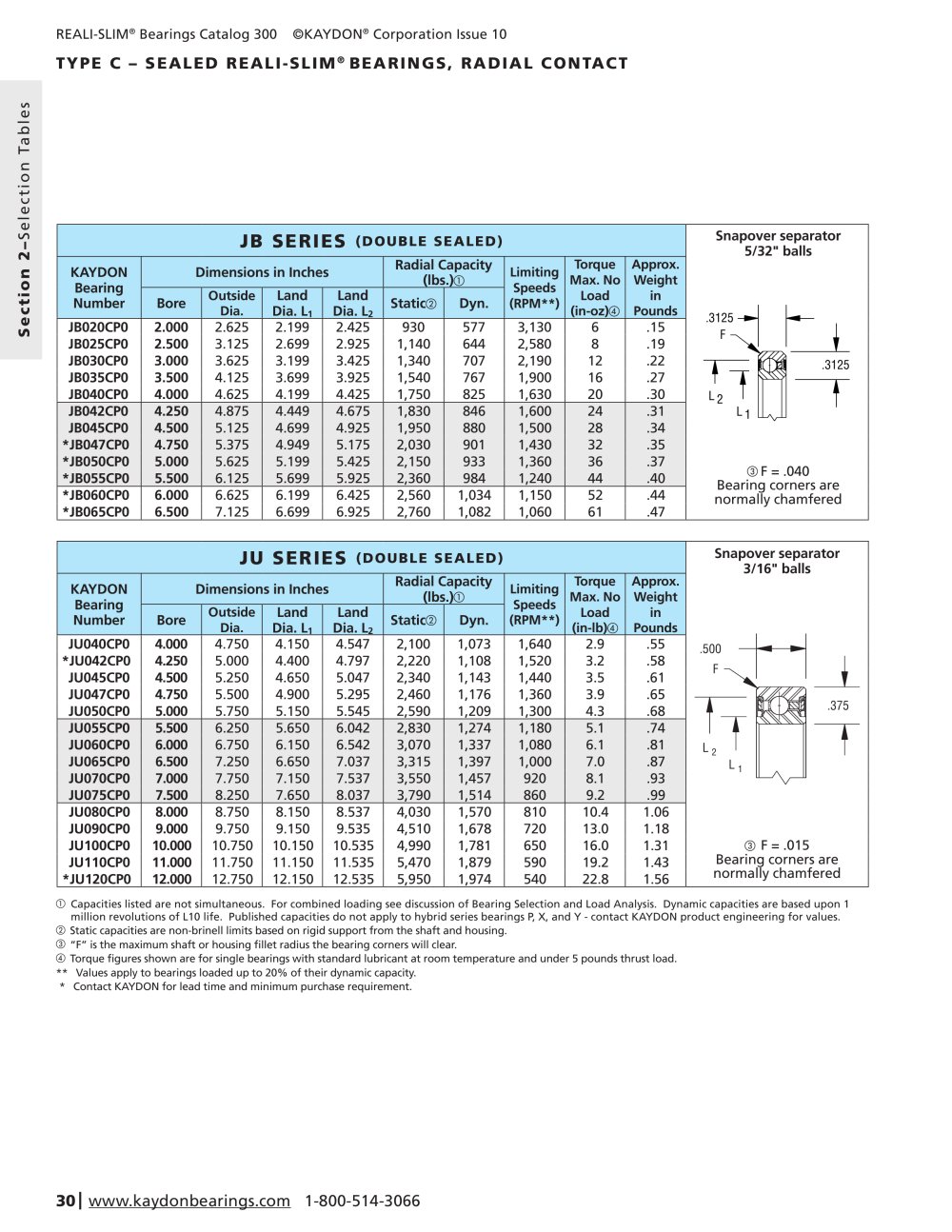

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | REALI-SLIM® Bearings Catalog 300 ©KAYDON® Corporation 2007 | | | | | | | | | TYPE C - SEALED REALI-SLIM® BEARINGS, RADIAL CONTACT | | | | | | | | | | D | | | | | | | | | | c O | | | | | | | | | | Snapover separator 5/32" balls | | | | | | JB SERIES (double sealed) | | | | | | | | | | | | | | | | | | | | | | | | | KAYDON Bearing Number | Dimensions in Inches | Radial Capacity (lbs.)© | Limiting Speeds (RPM**) | Torque Max. No | Weight in Pounds | | | | Bore | Outside Dia. | Land Dia. Li | Land Dia. L2 | Static© | Dyn. | Load (in-oz)© | | | | JB020CP0 | 2.000 | 2.625 | 2.199 | 2.425 | 930 | 577 | 3,130 | 6 | .15 | | | | JB025CP0 | 2.500 | 3.125 | 2.699 | 2.925 | 1,140 | 644 | 2,580 | 8 | .19 | | | | JB030CP0 | 3.000 | 3.625 | 3.199 | 3.425 | 1,340 | 707 | 2,190 | 12 | .22 | | | | JB035CP0 | 3.500 | 4.125 | 3.699 | 3.925 | 1,540 | 767 | 1,900 | 16 | .27 | | | | JB040CP0 | 4.000 | 4.625 | 4.199 | 4.425 | 1,750 | 825 | 1,630 | 20 | .30 | | | | JB042CP0 | 4.250 | 4.875 | 4.449 | 4.675 | 1,830 | 846 | 1,600 | 24 | .31 | | | | JB045CP0 | 4.500 | 5.125 | 4.699 | 4.925 | 1,950 | 880 | 1,500 | 28 | .34 | | | | *JB047CP0 | 4.750 | 5.375 | 4.949 | 5.175 | 2,030 | 901 | 1,430 | 32 | .35 | | | | *JB050CP0 | 5.000 | 5.625 | 5.199 | 5.425 | 2,150 | 933 | 1,360 | 36 | .37 | | | | *JB055CP0 | 5.500 | 6.125 | 5.699 | 5.925 | 2,360 | 984 | 1,240 | 44 | .40 | | | | *JB060CP0 | 6.000 | 6.625 | 6.199 | 6.425 | 2,560 | 1,034 | 1,150 | 52 | .44 | | | | *JB065CP0 | 6.500 | 7.125 | 6.699 | 6.925 | 2,760 | 1,082 | 1,060 | 61 | .47 | | | | | | | | JU SERIES (double sealed) | | | | KAYDON Bearing Number | Dimensions in Inches | Radial Capacity (lbs.)© | Limiting Speeds (RPM**) | Torque Max. No | Weight in Pounds | | | | Bore | Outside Dia. | Land Dia. Lì | Land Dia. L2 | Static© | Dyn. | Load (in-lb)© | | | | JU040CP0 | 4.000 | 4.750 | 4.150 | 4.547 | 2,100 | 1,073 | 1,640 | 2.9 | .55 | | | | JU042CP0 | 4.250 | 5.000 | 4.400 | 4.797 | 2,220 | 1,108 | 1,520 | 3.2 | .58 | | | | JU045CP0 | 4.500 | 5.250 | 4.650 | 5.047 | 2,340 | 1,143 | 1,440 | 3.5 | .61 | | | | JU047CP0 | 4.750 | 5.500 | 4.900 | 5.295 | 2,460 | 1,176 | 1,360 | 3.9 | .65 | | | | JU050CP0 | 5.000 | 5.750 | 5.150 | 5.545 | 2,590 | 1,209 | 1,300 | 4.3 | .68 | | | | JU055CP0 | 5.500 | 6.250 | 5.650 | 6.042 | 2,830 | 1,274 | 1,180 | 5.1 | .74 | | | | JU060CP0 | 6.000 | 6.750 | 6.150 | 6.542 | 3,070 | 1,337 | 1,080 | 6.1 | .81 | | | | JU065CP0 | 6.500 | 7.250 | 6.650 | 7.037 | 3,315 | 1,397 | 1,000 | 7.0 | .87 | | | | JU070CP0 | 7.000 | 7.750 | 7.150 | 7.537 | 3,550 | 1,457 | 920 | 8.1 | .93 | | | | JU075CP0 | 7.500 | 8.250 | 7.650 | 8.037 | 3,790 | 1,514 | 860 | 9.2 | .99 | | | | JU080CP0 | 8.000 | 8.750 | 8.150 | 8.537 | 4,030 | 1,570 | 810 | 10.4 | 1.06 | | | | JU090CP0 | 9.000 | 9.750 | 9.150 | 9.535 | 4,510 | 1,678 | 720 | 13.0 | 1.18 | | | | JU100CP0 | 10.000 | 10.750 | 10.150 | 10.535 | 4,990 | 1,781 | 650 | 16.0 | 1.31 | | | | JU110CP0 | 11.000 | 11.750 | 11.150 | 11.535 | 5,470 | 1,879 | 590 | 19.2 | 1.43 | | | | JU120CP0 | 12.000 | 12.750 | 12.150 | 12.535 | 5,950 | 1,974 | 540 | 22.8 | 1.56 | | | | | | | | | | | | | | | | | | | | | | | | | .3125 F | | | | | | | | | | © F = .040 Bearing corners are normally chamfered | | | | | | | | | | Snapover separator 3/16" balls | | | | | | | | | | .500 F | | | | | | | | | | © F = .015 Bearing corners are normally chamfered | | | | | | | | | | | | | | © Capacities listed are not simultaneous. For combined loading see discussion of Bearing Selection and Load Analysis. Dynamic capacities are based upon 1 million revolutions of L10 life. Published capacities do not apply to hybrid series bearings P, X, and Y - contact KAYDON product engineering for values. © Static capacities are non-brinell limits based on rigid support from the shaft and housing. © "F" is the maximum shaft or housing fillet radius the bearing corners will clear. © Torque figures shown are for single bearings with standard lubricant at room temperature and under 5 pounds thrust load. ** Values apply to bearings loaded up to 20% of their dynamic capacity. * Contact KAYDON for lead time and minimum purchase requirement. | | | | | | | | | | 30 www.kaydonbearinqs.com 1-800-514-3066 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
