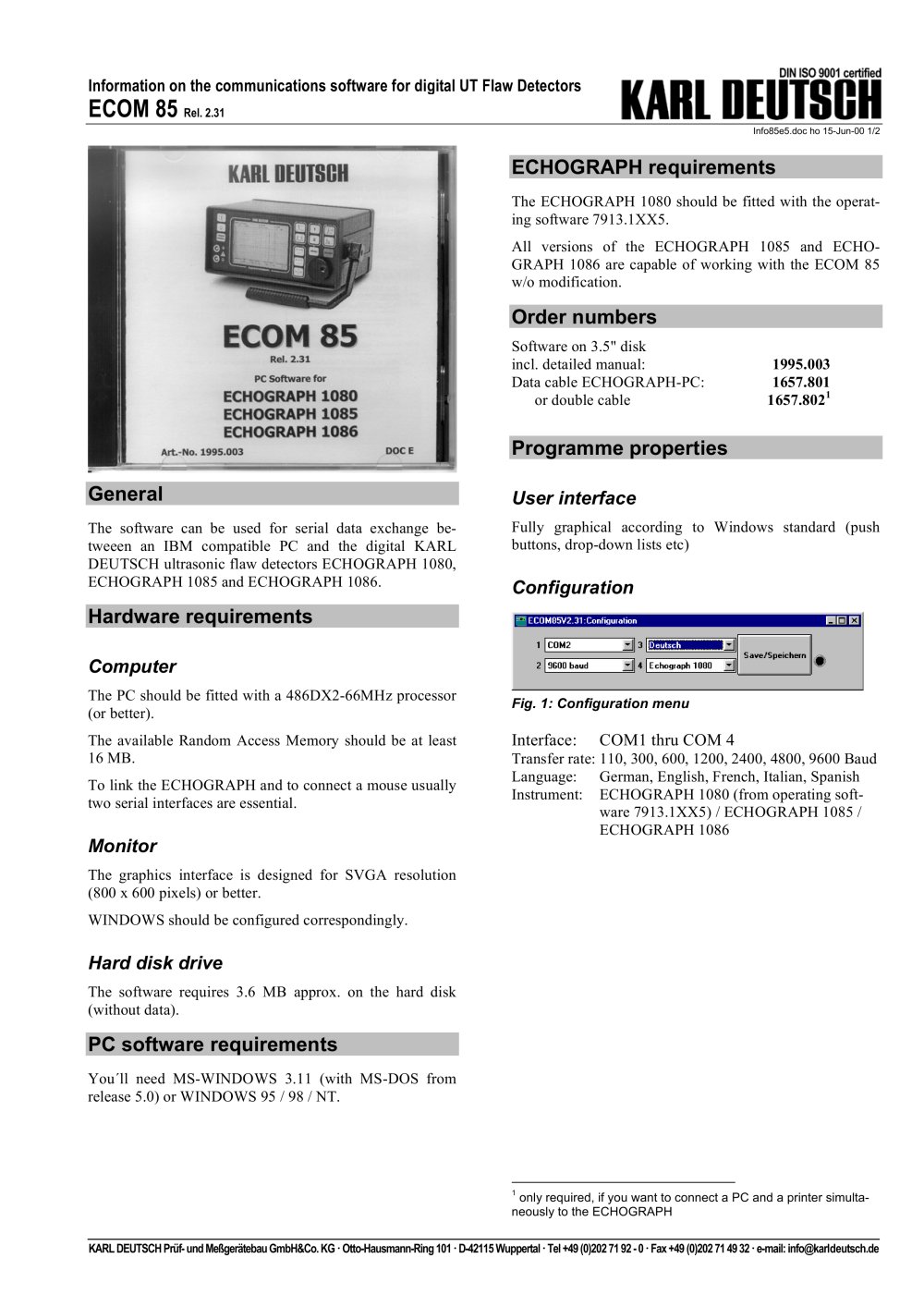

Information on the communications software for di g ital UT Flaw Detectors

PC software for ECHOGRAPH UT flaw detectors - 16682 ECOM 85

Rel. 2.31 Info85e5.doc ho 15-Jun-00 1/2

ECHOGRAPH requirements

The ECHOGRAPH 1080 should be fitted with the operat-ing software 7913.1XX5.All versions of the ECHOGRAPH 1085 and ECHO-GRAPH 1086 are capable of working with the ECOM 85w/o modification.

Order numbers

Software on 3.5" diskincl. detailed manual: 1995.003 Data cable ECHOGRAPH-PC: 1657.801 or double cable 1657.802
1

Programme properties General

User interface

The software can be used for serial data exchange be-tweeen an IBM compatible PC and the digital KARLDEUTSCH ultrasonic flaw detectors ECHOGRAPH 1080, ECHOGRAPH 1085 and ECHOGRAPH 1086. Fully graphical according to Windows standard (pushbuttons, drop-down lists etc)

Configuration

Hardware requirements

Computer

The PC should be fitted with a 486DX2-66MHz processor(or better).The available Random Access Memory should be at least16 MB.To link the ECHOGRAPH and to connect a mouse usuallytwo serial interfaces are essential.
Fig. 1: Configuration menu

Interface:COM1 thru COM 4

Transfer rate:110, 300, 600, 1200, 2400, 4800, 9600 Baud Language:German, English, French, Italian, Spanish Instrument:ECHOGRAPH 1080 (from operating soft-ware 7913.1XX5) / ECHOGRAPH 1085 /ECHOGRAPH 1086

Monitor

The graphics interface is designed for SVGA resolution (800 x 600 pixels) or better.WINDOWS should be configured correspondingly.

Hard disk drive

The software requires 3.6 MB approx. on the hard disk(without data).

PC software requirements

You´ll need MS-WINDOWS 3.11 (with MS-DOS fromrelease 5.0) or WINDOWS 95 / 98 / NT.
1 only required, if you want to connect a PC and a printer simulta-neously to the ECHOGRAPH KARL DEUTSCH Prüf- und Meßgerätebau GmbH&Co. KG Otto-Hausmann-Ring 101 D-42115 Wuppertal Tel +49 (0)202 71 92 - 0 Fax +49 (0)202 71 49 32 e-mail: info@karldeutsch.de
