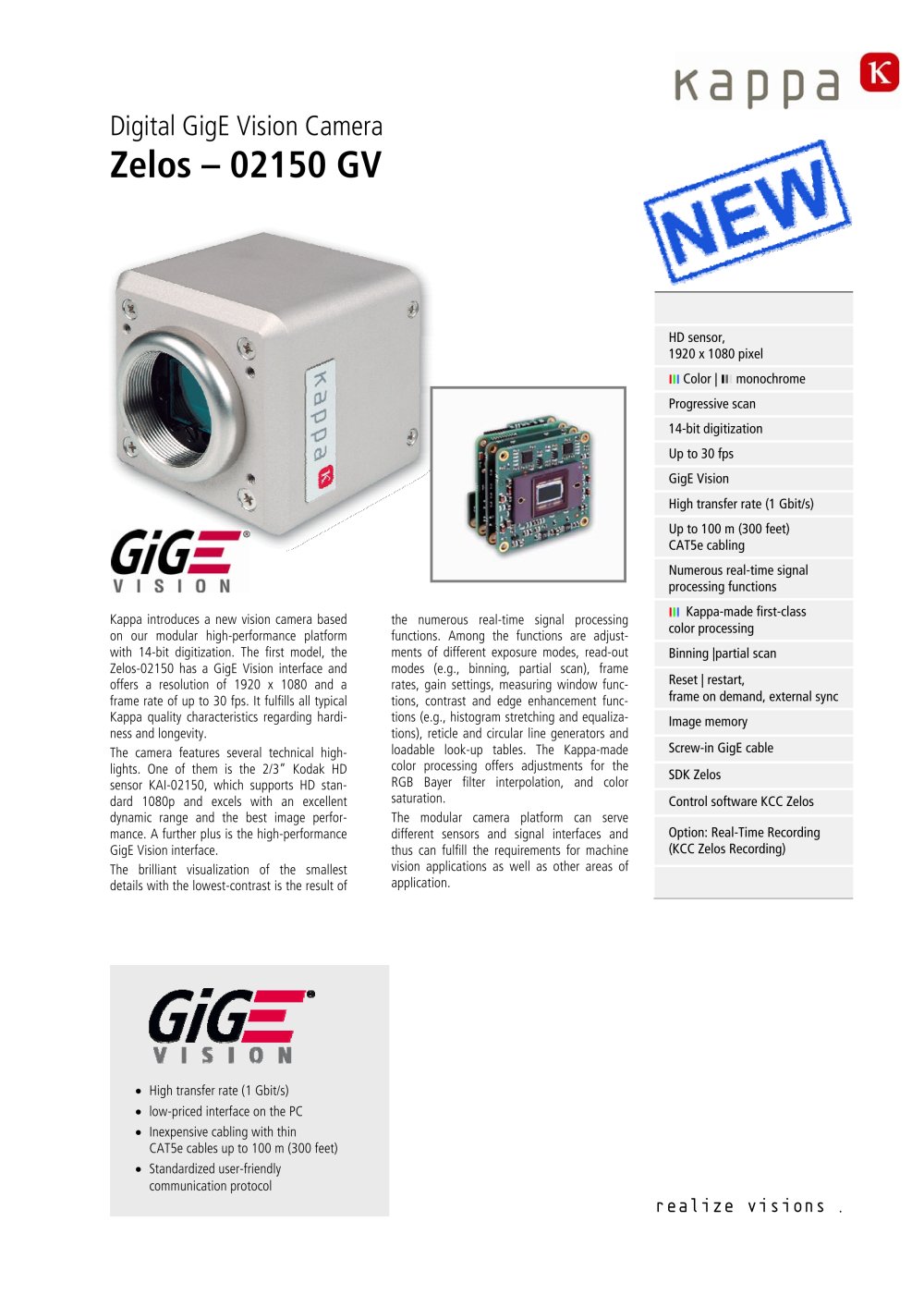

Digital GigE Vision Camera Zelos – 02150 GV Kappa introduces a new vision camera based on our modular high-performance platform with 14-bit digitization. The first model, the Zelos-02150 has a GigE Vision interface and offers a resolution of 1920 x 1080 and a frame rate of up to 30 fps. It fulfills all typical Kappa quality characteristics regarding hardiness and longevity. The camera features several technical highlights. One of them is the 2/3” Kodak HD sensor KAI-02150, which supports HD standard 1080p and excels with an excellent dynamic range and the best image performance. A further plus is the high-performance GigE Vision interface. The brilliant visualization of the smallest details with the lowest-contrast is the result of the numerous real-time signal processing functions. Among the functions are adjustments of different exposure modes, read-out modes (e.g., binning, partial scan), frame rates, gain settings, measuring window functions, contrast and edge enhancement functions (e.g., histogram stretching and equalizations), reticle and circular line generators and loadable look-up tables. The Kappa-made color processing offers adjustments for the RGB Bayer filter interpolation, and color saturation. The modular camera platform can serve different sensors and signal interfaces and thus can fulfill the requirements for machine vision applications as well as other areas of application. realize visions . HD sensor, 1920 x 1080 pixel III Color | III monochrome Progressive scan 14-bit digitization Up to 30 fps GigE Vision High transfer rate (1 Gbit/s) Up to 100 m (300 feet) CAT5e cabling Numerous real-time signal processing functions III Kappa-made first-class color processing Binning |partial scan Reset | restart, frame on demand, external sync Image memory Screw-in GigE cable SDK Zelos Control software KCC Zelos Option: Real-Time Recording (KCC Zelos Recording) • High transfer rate (1 Gbit/s) • low-priced interface on the PC • Inexpensive cabling with thin CAT5e cables up to 100 m (300 feet) • Standardized user-friendly communication protocol
