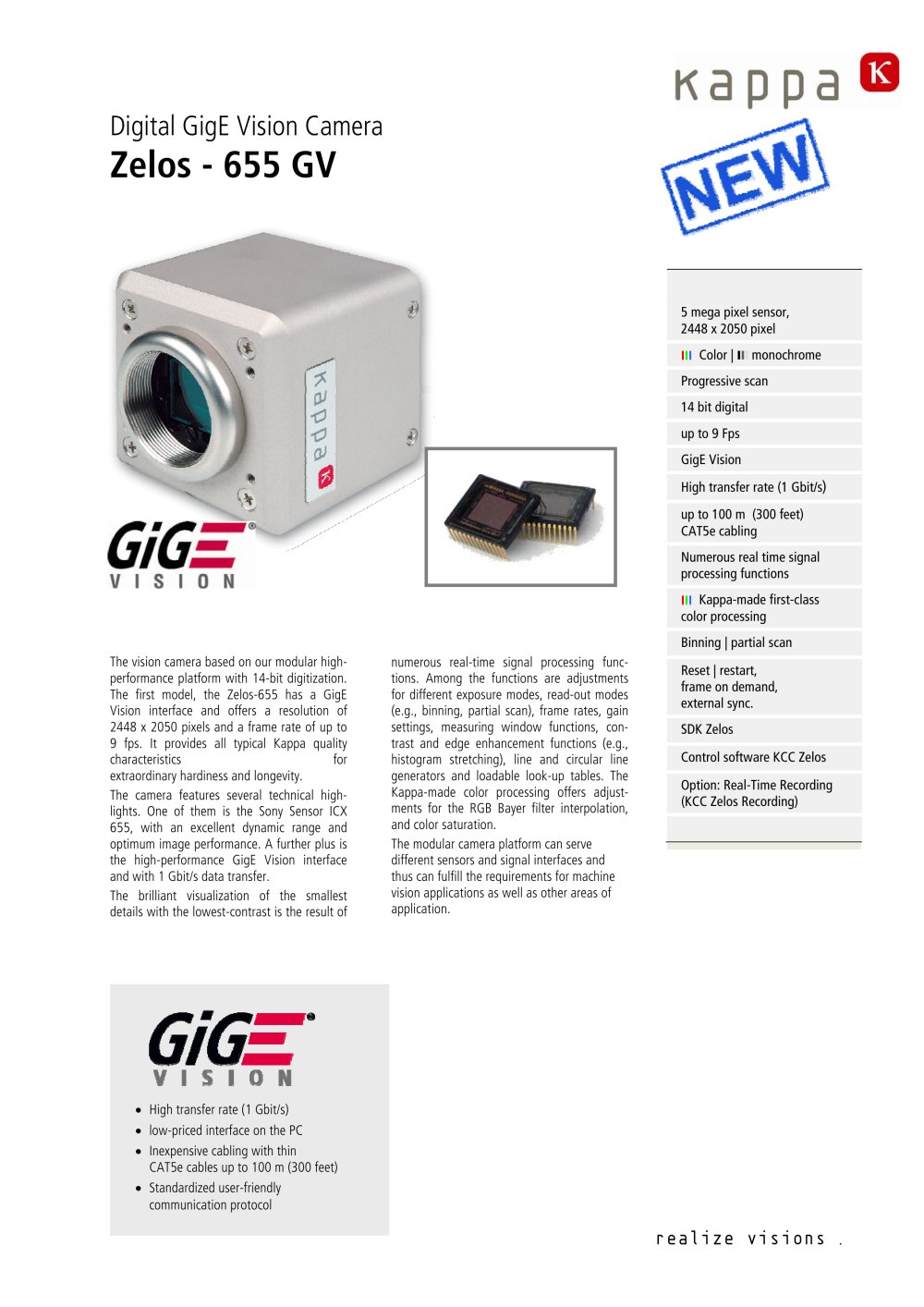

Digital GigE Vision Camera Zelos - 655 GV The vision camera based on our modular highperformance platform with 14-bit digitization. The first model, the Zelos-655 has a GigE Vision interface and offers a resolution of 2448 x 2050 pixels and a frame rate of up to 9 fps. It provides all typical Kappa quality characteristics for extraordinary hardiness and longevity. The camera features several technical highlights. One of them is the Sony Sensor ICX 655, with an excellent dynamic range and optimum image performance. A further plus is the high-performance GigE Vision interface and with 1 Gbit/s data transfer. The brilliant visualization of the smallest details with the lowest-contrast is the result of numerous real-time signal processing functions. Among the functions are adjustments for different exposure modes, read-out modes (e.g., binning, partial scan), frame rates, gain settings, measuring window functions, contrast and edge enhancement functions (e.g., histogram stretching), line and circular line generators and loadable look-up tables. The Kappa-made color processing offers adjustments for the RGB Bayer filter interpolation, and color saturation. The modular camera platform can serve different sensors and signal interfaces and thus can fulfill the requirements for machine vision applications as well as other areas of application. realize visions . • High transfer rate (1 Gbit/s) • low-priced interface on the PC • Inexpensive cabling with thin CAT5e cables up to 100 m (300 feet) • Standardized user-friendly communication protocol 5 mega pixel sensor, 2448 x 2050 pixel III Color | III monochrome Progressive scan 14 bit digital up to 9 Fps GigE Vision High transfer rate (1 Gbit/s) up to 100 m (300 feet) CAT5e cabling Numerous real time signal processing functions III Kappa-made first-class color processing Binning | partial scan Reset | restart, frame on demand, external sync. SDK Zelos Control software KCC Zelos Option: Real-Time Recording (KCC Zelos Recording)
