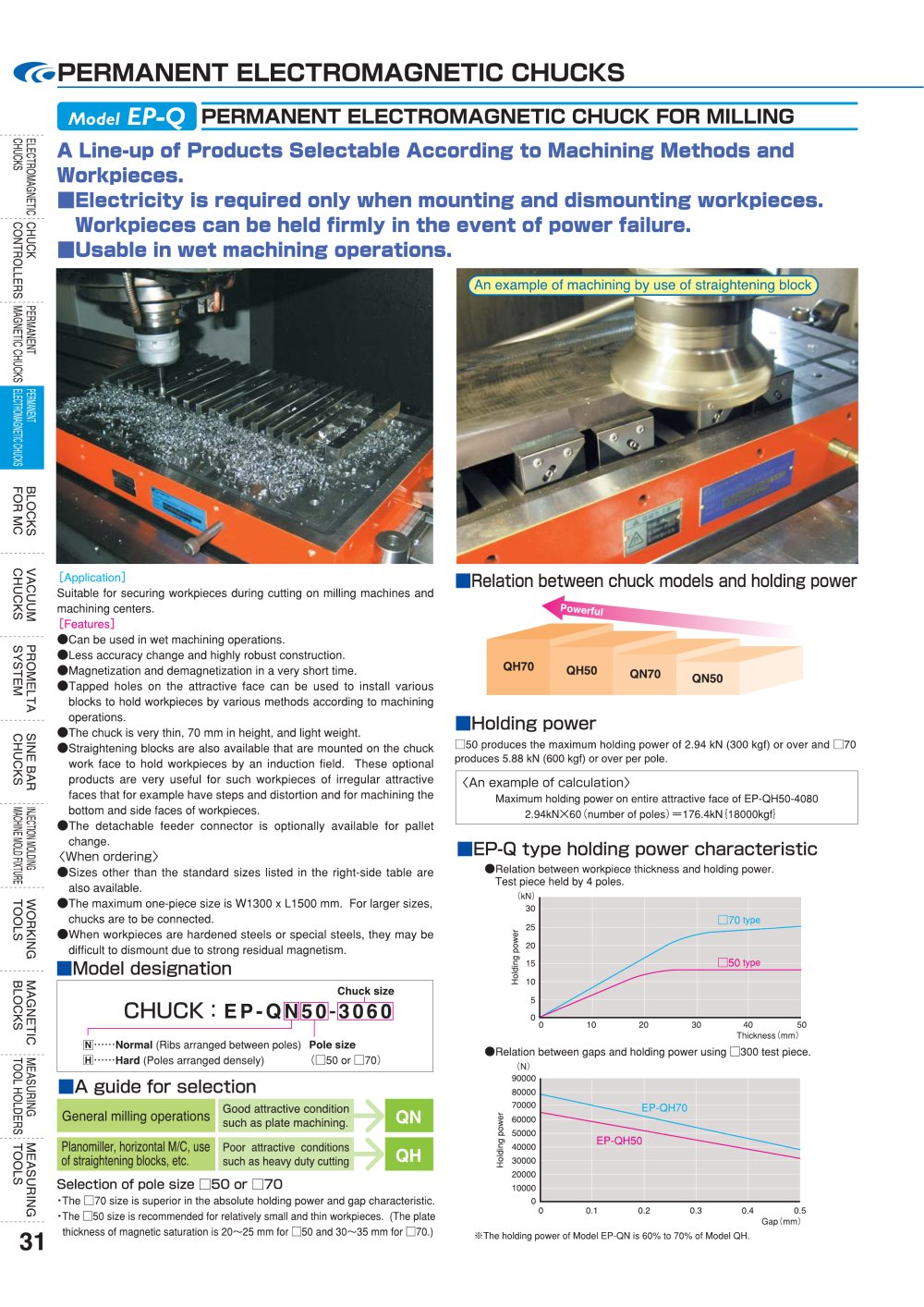

<0» PERMANENT ELECTROMAGNETIC CHUCKS
a PERMANENT ELECTROMAGNETIC CHUCK FOR MILLING
A Line-up of Products Selectable According to Machining Methods and Workplaces.
■Electricity Is required only when mounting and dismounting workplaces.
Workpieces can be held firmly in the event of power failure. ■Usable In wet machining operations.
~ m
533
2]
—h o
o*
33
Ss
Relation between chuck models and holding power
co oc
Suitable tor securing workpieces during cutting on milling machines and machining centers.
•Can be used in wet machining operations.
•Less accuracy change and highly robust construction.
•Magnetization and demagnetization in a very short time.
•Tapped holes on the attractive face can be used to install various
blocks to hold workpieces by various methods according to machining
operations.
•The chuck is very thin, 70 mm in height, and light weight.
•Straightening blacks are also available that are mounted on the chuck work face to hold workpieces by an induction field. These optional products are very useful for such workpieces of irregular attractive faces that for example have steps and distortion and for machining the bottom and side faces of workpieces.
•The detachable feeder connector is optionally available for pallet change.
(When ordering)
•Sizes other than the standard sizes listed in the right-side table are also available.
•The maximum one-piece size is W1300 x L1500 mm. For larger sizes,
chucks are to be connected. •When workpieces are hardened steels or special steels, they may be
difficult to dismount due to strong residual magnetism.
Model designation_
Chuck size
CHUCK: EP-QN50-3060
CO TJ
co O
QH70
QH50
QN70
QN50
m
m
Holding power
□50 produces the maximum holding power of 2.94 kN (300 kgf) or over and D70 produces 5.88 kN (600 kgf) or over per pole.
0£2
s*
gen
Bs
(An example of calculation)
Maximum holding power on entire attractive face of EP-QH50-408G 2.94kNX60 (number of poles) =176.4kN {18000kgf]
EP-Q type holding power characteristic
•Relation between workplece thickness and holding power. Test piece held by 4 poles.
CkN),
□70 type
äs
pa z
COS
Sg
o
40 SG
Thickness (mm)
►Relation between gaps and holding power using □300 test piece.
(N) 9OOO0
SI......Normal (Ribs arranged between poles) Pole siza
H......Hard (Poles arranged densely) (D50 or D70)
8!
■A guide for selection
05
5g
EP-QH70
Good attractive condition such as plate machining.
General milling operations
Pianomiller, horizontal M/C, use of straightening blocks, etc.
Poor attractive conditions such as heavy duty cutting
Om °£
I-CO
coc z
Selection of pole size U50 or J70
•The D70 size is superior in the absolute holding power and gap characteristic. ■Tha D50 size Is recommended for relatively small and thin workpieces. (The plate thickness of magnetic saturation Is 20~25 mm for D50 and 30~35 mm for D70.)
0.4 0.5
Gap (mm)
«The holding power of Model EP-QN Is 60% to 70% of Model QH.
