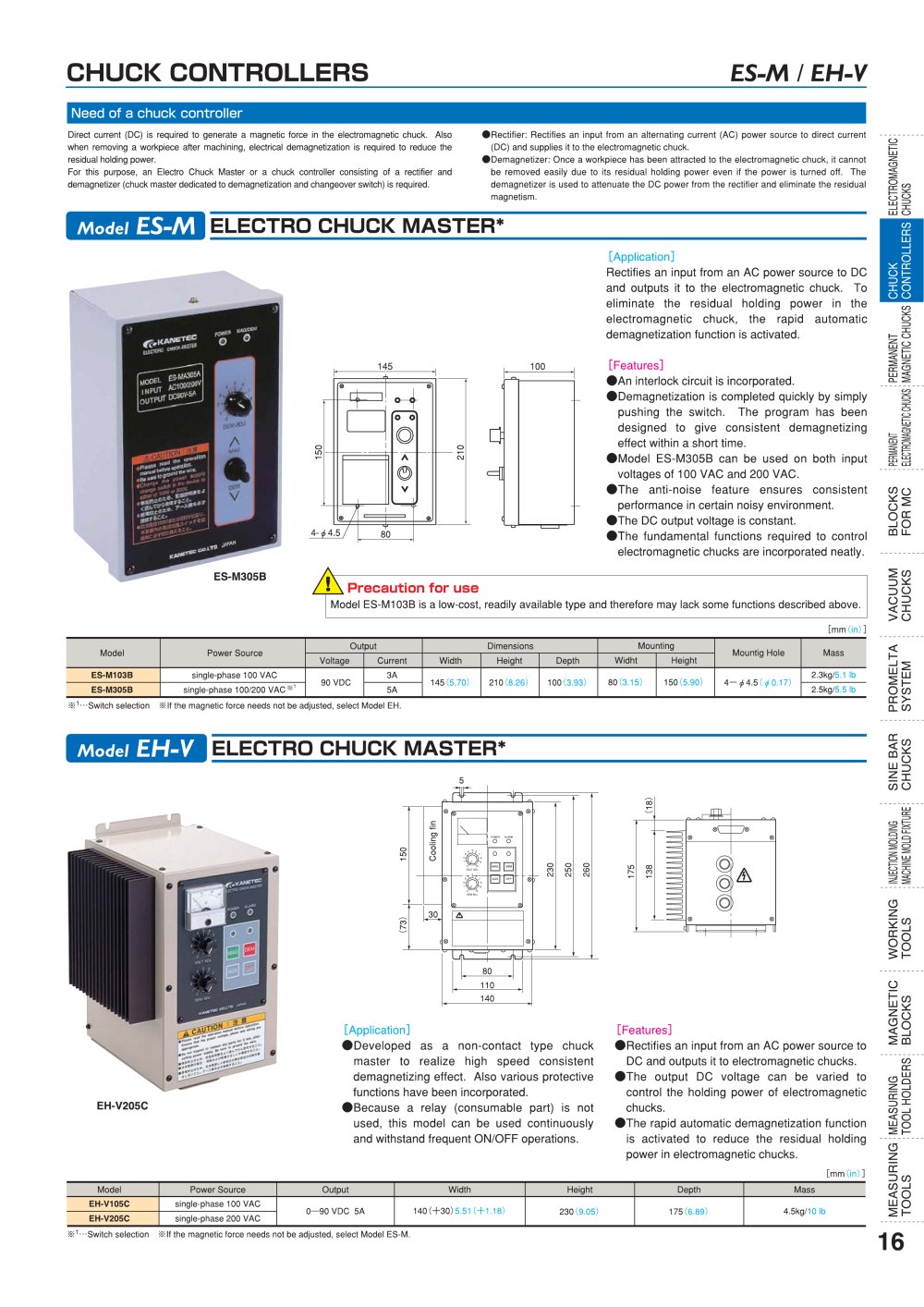

CHUCK CONTROLLERS

ES-M IEH-V

•Rectifier: Rectifies an input from an alternating current (AC) power source to direct current

(DC) and supplies it to the electromagnetic chuck. •Demagnetizer: Once a workpiece has been attracted to the electromagnetic chuck, it cannol

be removed easily due to Its residual holding power even If the power Is turned off. The

demagnetlzer Is used to attenuate the DC power from trie rectifier and eliminate the residual

magnetism.

Direct current (DC) is required to generate a magnetic force in the electromagnetic chuck. Also when removing a workplace after machining, electrical demagnetization is required to reduce the residual holding power.

For this purpose, an Electro Chuck Master or a chuck controller consisting of a rectifier and demagnetlzer (chuck master dedicated to demagnetization and changeover switch) Is required,

IMBIUTI ELECTRO CHUCK MASTER'

[Application]

Rectifies an input from an AC power source to DC and outputs ft to the electromagnetic chuck. To eliminate the residual holding power in the electromagnetic chuck, the rapid automatic demagnetization function is activated.

[Features]

•An interlock circuit is incorporated. •Demagnetization is completed quickly by simply

pushing the switch. The program has been

designed to give consistent demagnetizing

effect within a short time. •Model ES-M305B can be used on both input

voltages of 100 VAC and 200 VAC. •The anti-noise feature ensures consistent

performance in certain noisy environment. •The DC output voltage is constant. •The fundamental functions required to control

electromagnetic chucks are incorporated neatly.

SP»

145_^ |. 100 _m

4- ^ 4.5

ES-M305B

I \ Precaution tor use

Model ES-M103B is a low-cost, readily available type and therefore may lack some functions described above.

[mm (In) ]

Model

Power Source

Output

Dimensions

Mounting

Mount ig Hole

Mass

Voltage

Current

Width

Height

Depth

Widht

Height

ES-M103B

single-phase 100 VAC

90VDC

145(5.70)

210(8.26)

100(3.93)

80(3.15)

150(5.90)

4-¿4.5{,(0.17)

2.3kg/5.11

ES-M306B

single-phase 100/200 VAC*¹

2.5kg/5.51

■Switch selection SS If the magnete force needs not be adjusted, select Model EH.

Model EH-V

ELECTRO CHUCK MASTER*

[Application]

•Developed as a non-contact type chuck master to realize high speed consistent demagnetizing effect. Also various protective functions have been incorporated.

•Because a relay (consumable part) is not used, this model can be used continuously and withstand frequent ON/OFF operations.

[Features]

•Rectifies an input from an AC power source to DC and outputs it to electromagnetic chucks.

•The output DC voltage can be varied to control the holding power of electromagnetic chucks.

•The rapid automatic demagnetization function is activated to reduce the residual holding power in electromagnetic chucks.

[mm (In) ]

EH-V205C


Model	Power Source	Output	Width	Height	Depth	Mass
EH-V105C	single-phase 100 VAC	0—90 VDC 5A	140(+30)5.51 (+1.16!	230(9.05)	175(6.89!	45kg/
EH-V20SC	single-phase 2» VAC	0—90 VDC 5A	140(+30)5.51 (+1.16!	230(9.05)	175(6.89!	45kg/

55:

!' ■■•Switch selection

f the magnetic force needs not be adjusted, select Model ES-M.
