Compact Shrink Tunnel

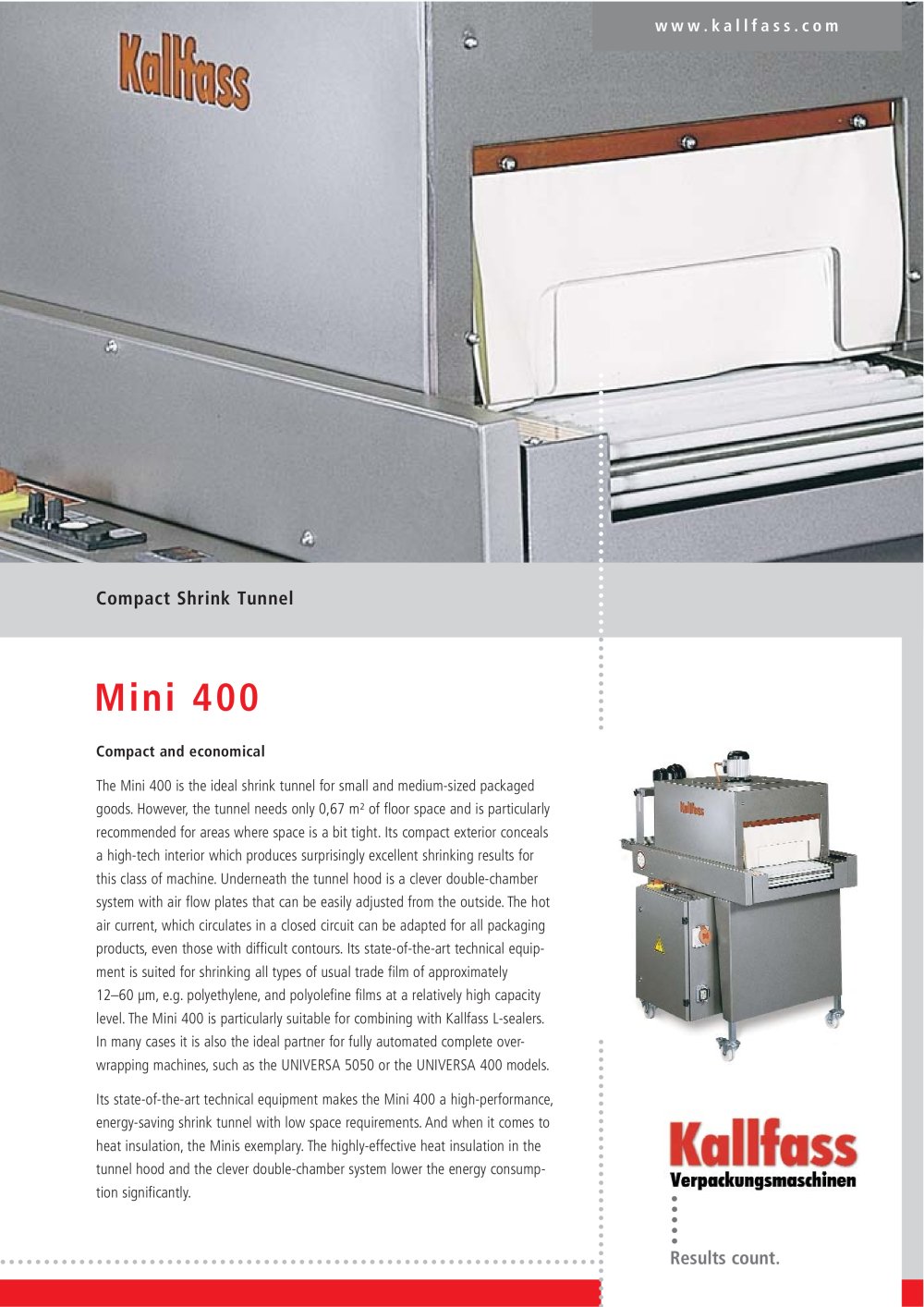

Compact Shrink Tunnel MINI 400 - 14956 Mini 400

Compact and economical The Mini 400 is the ideal shrink tunnel for small and medium-sized packagedgoods. However, the tunnel needs only 0,67 m² of floor space and is particularly recommended for areas where space is a bit tight. Its compact exterior conceals a high-tech interior which produces surprisingly excellent shrinking results for this class of machine. Underneath the tunnel hood is a clever double-chamber system with air flow plates that can be easily adjusted from the outside. The hot air current, which circulates in a closed circuit can be adapted for all packaging products, even those with difficult contours. Its state-of-the-art technical equip- ment is suited for shrinking all types of usual trade film of approximately 12–60 m, e.g. polyethylene, and polyolefine films at a relatively high capacity level. The Mini 400 is particularly suitable for combining with Kallfass L-sealers. In many cases it is also the ideal partner for fully automated complete over- wrapping machines, such as the UNIVERSA 5050 or the UNIVERSA 400 models.Its state-of-the-art technical equipment makes the Mini 400 a high-performance,energy-saving shrink tunnel with low space requirements. And when it comes to heat insulation, the Minis exemplary. The highly-effective heat insulation in the tunnel hood and the clever double-chamber system lower the energy consump- tion significantly.

Results count.
