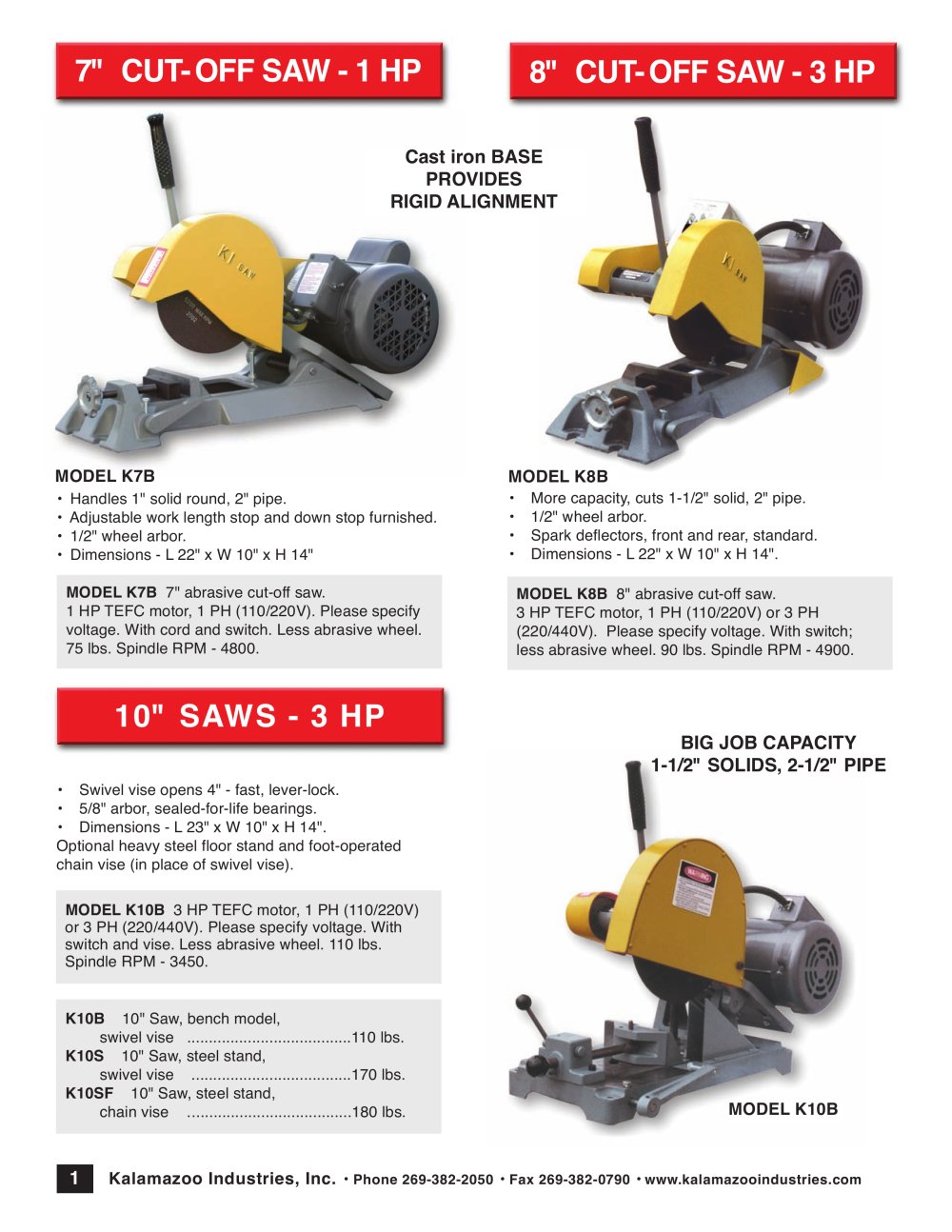

7" CUT-OFF SAW - 1 HP 8" CUT-OFF SAW - 3 HP

Cast iron BASEPROVIDESRIGID ALIGNMENT

MODEL K7B MODEL K8B

• Handles 1" solid round, 2" pipe. • Adjustable work length stop and down stop furnished. • 1/2" wheel arbor. • Dimensions - L 22" x W 10" x H 14" • More capacity, cuts 1-1/2" solid, 2" pipe.• 1/2" wheel arbor. • Spark deflectors, front and rear, standard. • Dimensions - L 22" x W 10" x H 14". MODEL K7B 7" abrasive cut-off saw. 1 HP TEFC motor, 1 PH (110/220V). Please specify voltage. With cord and switch. Less abrasive wheel. 75 lbs. Spindle RPM - 4800. MODEL K8B 8" abrasive cut-off saw. 3 HP TEFC motor, 1 PH (110/220V) or 3 PH (220/440V). Please specify voltage. With switch; less abrasive wheel. 90 lbs. Spindle RPM - 4900.

10" SAWS - 3 HP

BIG JOB CAPACITY1-1/2" SOLIDS, 2-1/2" PIPE

MODEL K10B 3 HP TEFC motor, 1 PH (110/220V)or 3 PH (220/440V). Please specify voltage. Withswitch and vise. Less abrasive wheel. 110 lbs. Spindle RPM - 3450. • Swivel vise opens 4" - fast, lever-lock.• 5/8" arbor, sealed-for-life bearings. • Dimensions - L 23" x W 10" x H 14". Optional heavy steel floor stand and foot-operated chain vise (in place of swivel vise). K10B 10" Saw, bench model,swivel vise ......................................110 lbs. K10S 10" Saw, steel stand,swivel vise .....................................170 lbs. K10SF 10" Saw, steel stand,chain vise ......................................180 lbs.

MODEL K10B

1

Kalamazoo Industries, Inc.

•
Phone 269-382-2050 •
Fax 269-382-0790 •
www.kalamazooindustries.com
