Model HMC-630(#50)

X-axis Travel mm 1050 Y-axis Travel mm 800 Z-axis Travel mm 880 Distance from spindle center to table surface mm 100-900 Distance from spindle nose to table center mm 150-1030 Table Dimension mm 630x630 Number of table 2 Loading capability kg 1200 (Uniform load) Working dimension ( diameter/ height ) mm Ø1050/1000 Table(Pallet) top surface configuration 24-M16 Minimum index division of table (pallet) degree 0.001° (*1°) Table (Pallet) indexing time (0~90°) sec 2.5 6,000 Direct-driven (*10,000 Spindle speed rpm Built-in) Number of spindle speed change steps 2 steps (MS) Spindle main bearing bore diameter mm Ø100 Rapid travel rate ( X,Y, Z ) m/min 24 (*48) Cutting speed rate( X,Y, Z ) m/min 10 Spindle Nose No.50 7/24 taper Type of tool shank BT-50/CAT-50 Magazine capacity 40 (*60,*90,*120) Max. tool diameter mm Ø125 Max. tool diameter ( without adjacent tools ) mm Ø250 Max. tool length mm 400 Max. tool weight kg 20 Shortest distance, absolutely Tool selection method method Tool change time ( tool to tool ) sec 3 (*1.8) Tool change time ( chip to chip ) sec 8 (*4.0) Pallet change method Direct turn method Pallet change time ( APC only ) sec 15 (*11) (6,000 rpm) kW 15/18.5 Spindle motor (30min/continuous) (*10,000 rpm) kW 25/30 Feed motor ( X ) kW 7.0 Feed motor ( Y ) kW 6.0 Feed motor ( Z ) kW 7.0 Feed motor ( B ) kW 4.0 Hydraulic pump motor kW 3.75 Motor for spindle feed system oil cooler(compression/discharge) kW 2.3/0.75 Coolant pump motor kW 0.2x1, 0.4x2 Power supply AC200V / 220V kVA 45 (*55) Compressed air supply MPa, l /min 0.4~0.6, 500 Hydraulic unit tank capacity l 120 Spindle feed system cooling oil tank capacity l 36 Coolant tank capacity l 400 Controller model ST. Fanuc 0iC, Mitsubishi M64 OP. Fanuc 18iM, Mitsubishi M65 Floor area mm
2 4,550x7,560 Machine height mm 3,480 Machine net weight kg 19,000

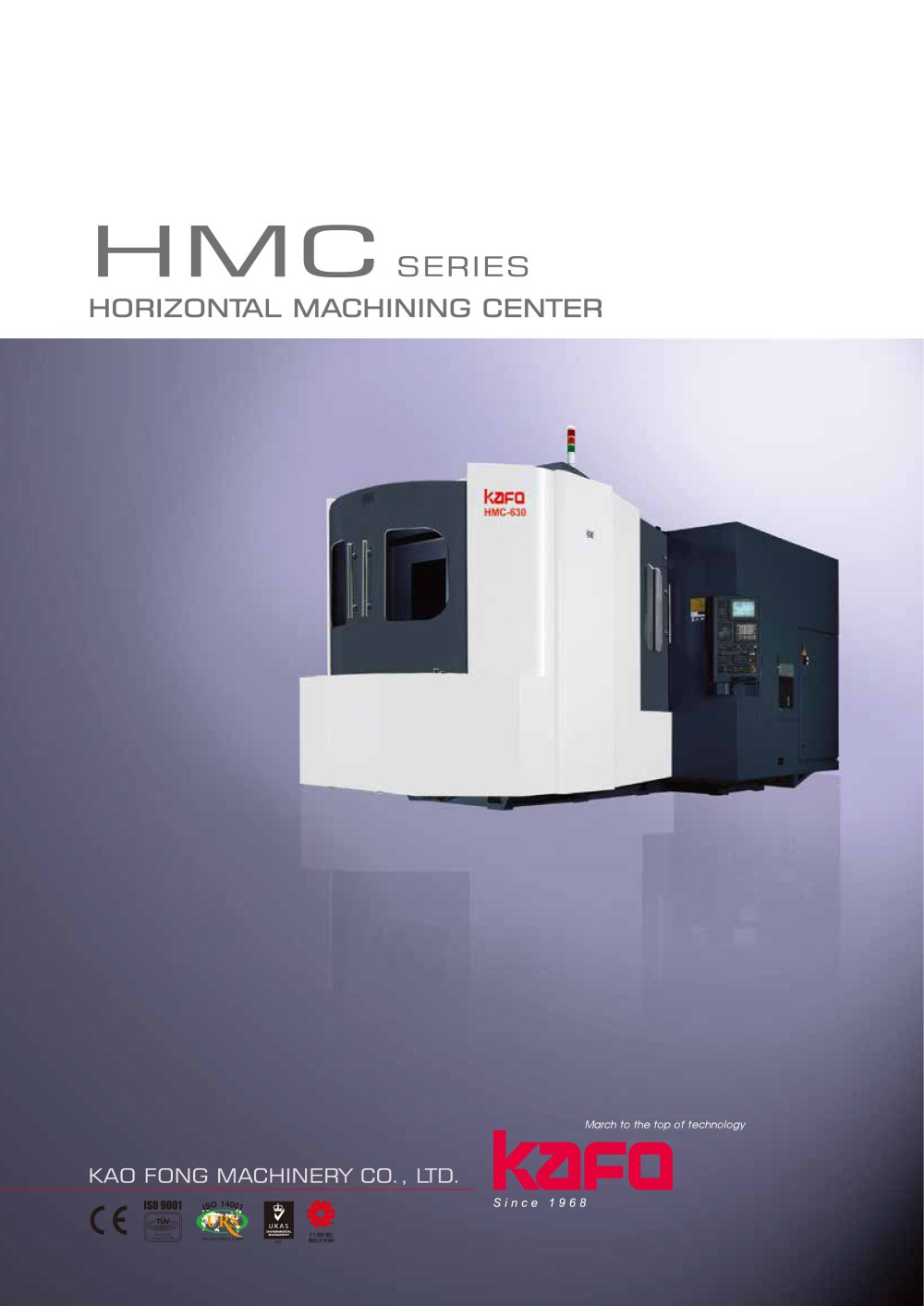

HMC630 Horizontal Machining Center - 26338 (*Option) The above specifications are subject to change without notice.
