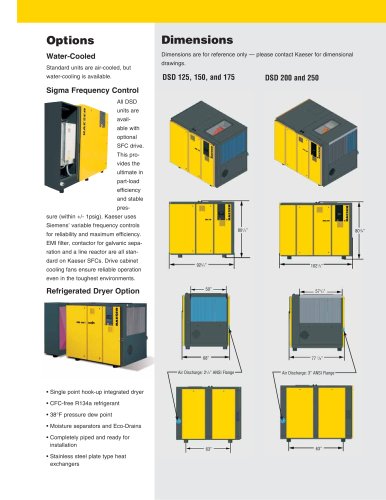

DSD Series Compressors - 5 / 6 Pages

Options
Water-Cooled
Standard units are air-cooled, but
water-cooling is available.
Sigma Frequency Control
All DSD
units are
available
with
optional
SFC drive.
This provides
the
ultimate in
part-load
efficiency
and stable
pressure
(within +/- 1psig). Kaeser uses
Siemens’ variable frequency controls
for reliability and maximum efficiency.
EMI filter, contactor for galvanic separation
and a line reactor are all standard
on Kaeser SFCs. Drive cabinet
cooling fans ensure reliable operation
even in the toughest environments.
Refrigerated Dryer Option
• Single point hook-up integrated dryer
• CFC-free R134a refrigerant
• 38°F pressure dew point
• Moisture separators and Eco-Drains
• Completely piped and ready for
installation
• Stainless steel plate type heat
exchangers
Dimensions
Dimensions are for reference only — please contact Kaeser for dimensional
drawings.
DSD 125, 150, and 175 DSD 200 and 250
923/4”
77 7/8”
571/4”
1021/2”
801/4”
50”
68”
Air Discharge: 21/2” ANSI Flange Air Discharge: 3” ANSI Flange
63” 63”
801/4”
