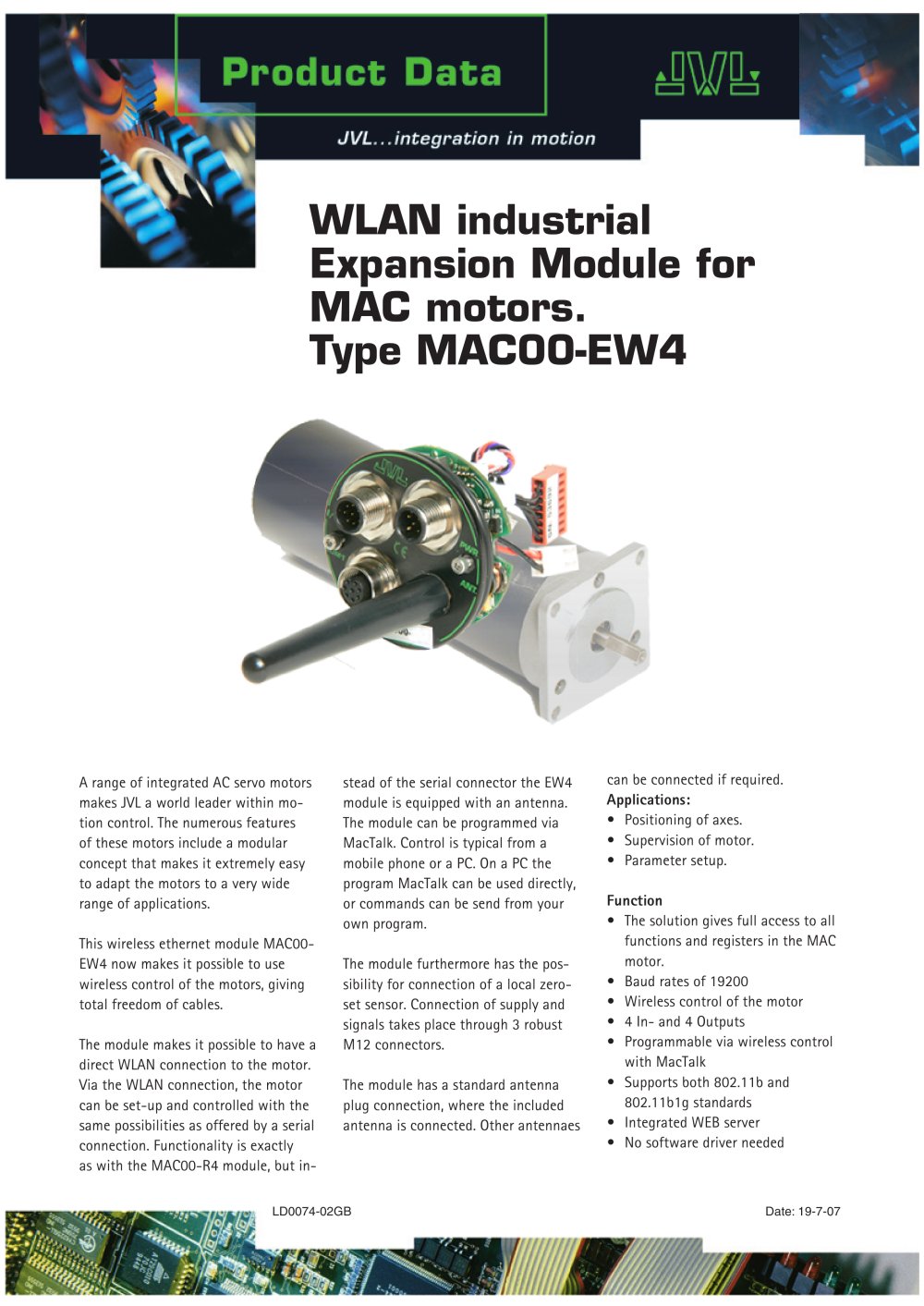

LD0074-02GB Date: 19-7-07 WLAN industrial Expansion Module for MAC motors. Type MAC00-EW4 A range of integrated AC servo motors makes JVL a world leader within motion control. The numerous features of these motors include a modular concept that makes it extremely easy to adapt the motors to a very wide range of applications. This wireless ethernet module MAC00- EW4 now makes it possible to use wireless control of the motors, giving total freedom of cables. The module makes it possible to have a direct WLAN connection to the motor. Via the WLAN connection, the motor can be set-up and controlled with the same possibilities as offered by a serial connection. Functionality is exactly as with the MAC00-R4 module, but instead of the serial connector the EW4 module is equipped with an antenna. The module can be programmed via MacTalk. Control is typical from a mobile phone or a PC. On a PC the program MacTalk can be used directly, or commands can be send from your own program. The module furthermore has the possibility for connection of a local zeroset sensor. Connection of supply and signals takes place through 3 robust M12 connectors. The module has a standard antenna plug connection, where the included antenna is connected. Other antennaes can be connected if required. Applications: Positioning of axes. Supervision of motor. Parameter setup. Function The solution gives full access to all functions and registers in the MAC motor. Baud rates of 19200 Wireless control of the motor 4 In- and 4 Outputs Programmable via wireless control with MacTalk Supports both 802.11b and 802.11b1g standards Integrated WEB server No software driver needed • • • • • • • • • • •
