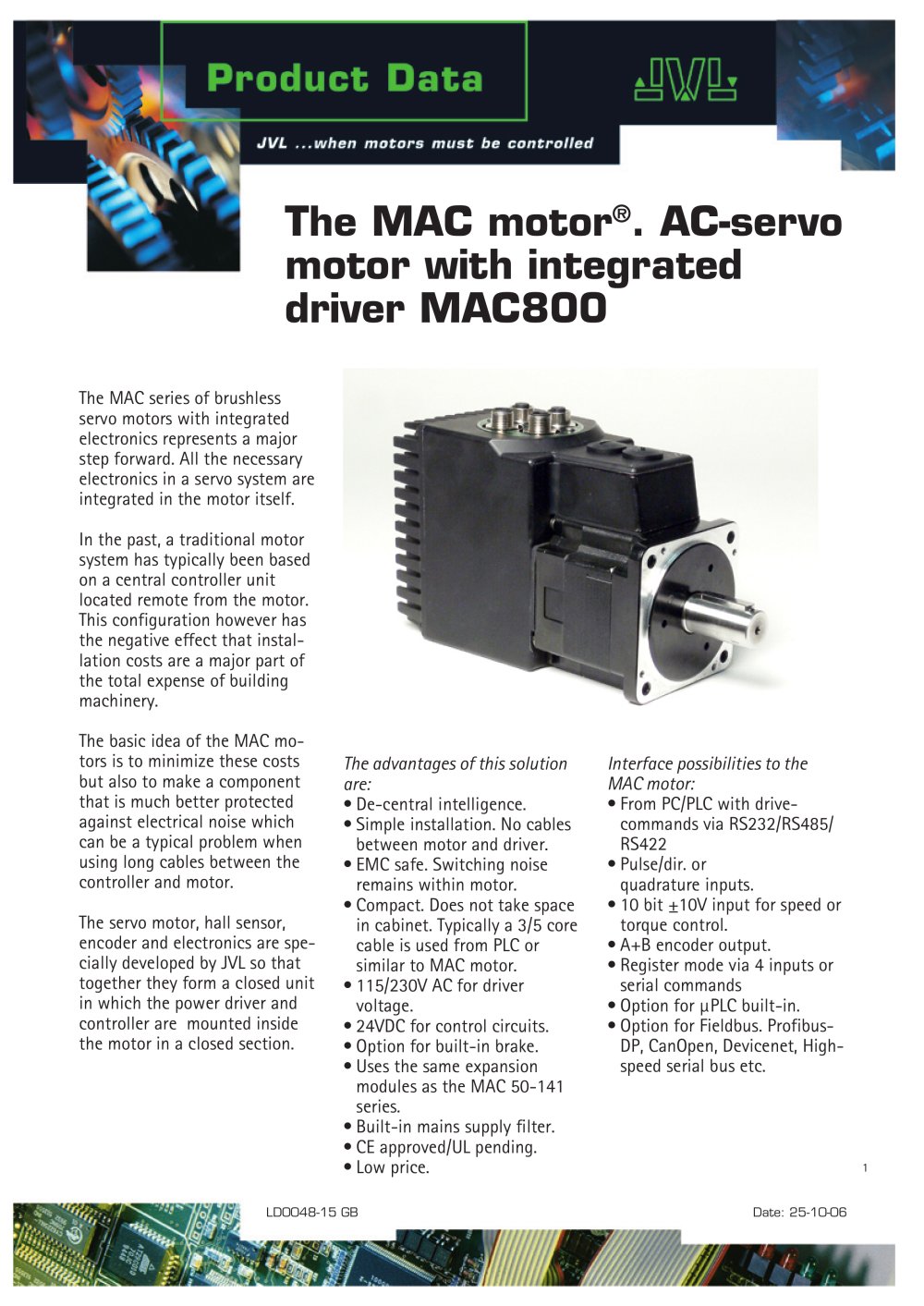

The MAC motor. AC-servo motor with integrated driver MAC800 - JVL - #1

LWj JVL ...when motors muse be controlled I

The MAC series of brushless servo motors with integrated electronics represents a major step forward. All the necessary electronics in a servo system are integrated in the motor itself.

In the past, a traditional motor system has typically been based on a central controller unit located remote from the motor. This configuration however has the negative effect that instal­lation costs are a major part of the total expense of building machinery.

The basic idea of the MAC mo­tors is to minimize these costs but also to make a component that is much better protected against electrical noise which can be a typical problem when using long cables between the controller and motor.

The servo motor, hall sensor, encoder and electronics are spe­cially developed by JVL so that together they form a closed unit in which the power driver and controller are mounted inside the motor in a closed section.

• De-central intelligence.

• Simple installation. No cables between motor and driver.

• EMC safe. Switching noise remains within motor.

• Compact. Does not take space in cabinet. Typically a 3/5 core cable is used from PLC or similar to MAC motor.

• 115/230V AC for driver voltage.

• 24VDC for control circuits.

• Option for built-in brake.

• Uses the same expansion modules as the MAC 50-141 series.

• Built-in mains supply filter.

• CE approved/UL pending.

• Low price.

• From PC/PLC with drive-commands via RS232/RS485/ RS422

• Pulse/dir. or quadrature inputs.

■ 10 bit ±10V input for speed or torque control.

• A+B encoder output.

• Register mode via 4 inputs or serial commands

• Option for uPLC built-in.

• Option for Fieldbus. Profibus-DP, CanOpen, Devicenet, High­speed serial bus etc.
