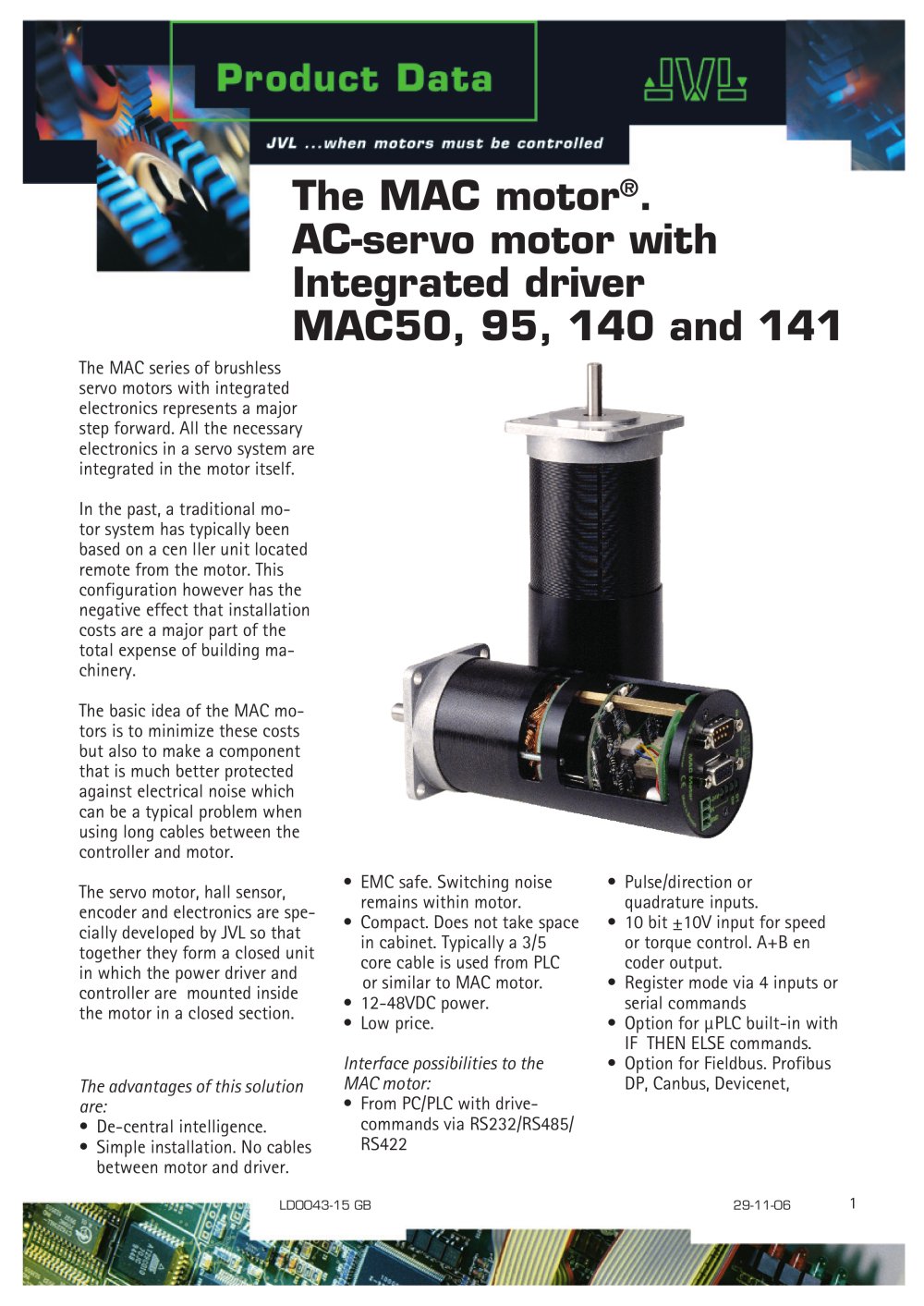

The MAC motor®. AC-servo motor with Integrated driver MAC50, 95, 140 and 141
The MAC series of brushless servo motors with integrated electronics represents a major step forward. All the necessary electronics in a servo system are
integrated in the motor itself.
In the past, a traditional mo­tor system has typically been
based on a cen ller unit located remote from the motor. This configuration however has the negative effect that installation costs are a major part of the
total expense of building ma­chinery.
The basic idea of the MAC mo­tors is to minimize these costs but also to make a component that is much better protected
against electrical noise which can be a typical problem when
using long cables between the
controller and motor.
The servo motor, hall sensor,
encoder and electronics are spe­cially developed by JVL so that together they form a closed unit
in which the power driver and controller are mounted inside the motor in a closed section.
• Pulse/direction or quadrature inputs.
• 10 bit ±10V input for speed or torque control. A+B en
coder output.
• Register mode via 4 inputs or serial commands
• Option for uPLC built-in with IF THEN ELSE commands.
• Option for Fieldbus. Profibus DP, Canbus, Devicenet,
• EMC safe. Switching noise remains within motor.
• Compact. Does not take space in cabinet. Typically a 3/5 core cable is used from PLC
or similar to MAC motor.
• 12-48VDC power.
• Low price.
Interface possibilities to the MAC motor:
• From PC/PLC with drive-commands via RS232/RS485/ RS422
The advantages of this solution are:
• De-central intelligence.
• Simple installation. No cables between motor and driver.
