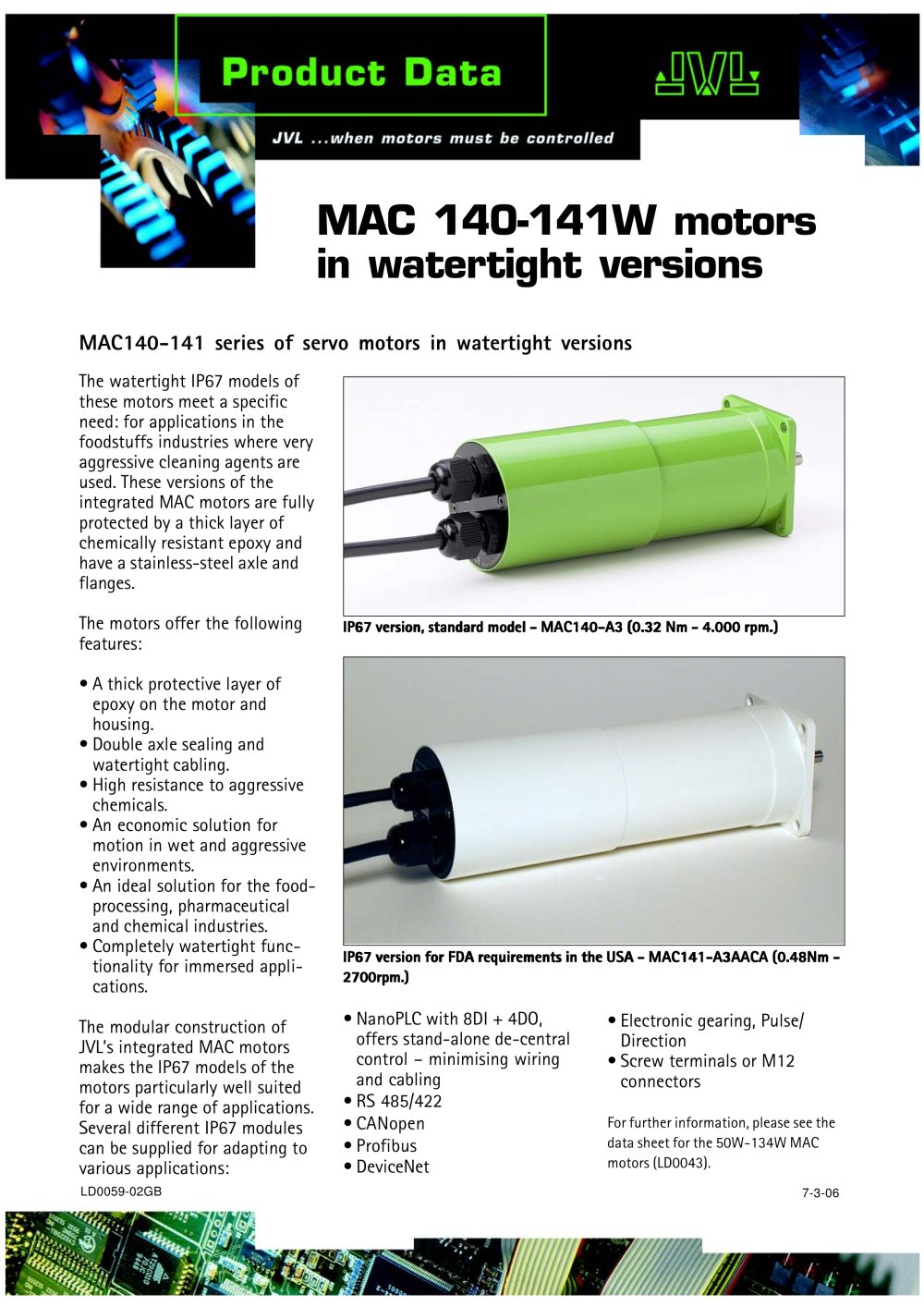

MAC140-141 series of servo motors in watertight versions IP67 version, standard model - MAC140-A3 (0.32 Nm - 4.000 rpm.) IP67 version for FDA requirements in the USA - MAC141-A3AACA (0.48Nm - 2700rpm.) LD0059-02GB 7-3-06 MAC 140-141W motors in watertight versions The watertight IP67 models of these motors meet a specific need: for applications in the foodstuffs industries where very aggressive cleaning agents are used. These versions of the integrated MAC motors are fully protected by a thick layer of chemically resistant epoxy and have a stainless-steel axle and flanges. The motors offer the following features: • A thick protective layer of epoxy on the motor and housing. • Double axle sealing and watertight cabling. • High resistance to aggressive chemicals. • An economic solution for motion in wet and aggressive environments. • An ideal solution for the foodprocessing, pharmaceutical and chemical industries. • Completely watertight functionality for immersed applications. The modular construction of JVL’s integrated MAC motors makes the IP67 models of the motors particularly well suited for a wide range of applications. Several different IP67 modules can be supplied for adapting to various applications: • NanoPLC with 8DI + 4DO, offers stand-alone de-central control – minimising wiring and cabling • RS 485/422 • CANopen • Profibus • DeviceNet • Electronic gearing, Pulse/ Direction • Screw terminals or M12 connectors For further information, please see the data sheet for the 50W-134W MAC motors (LD0043).
